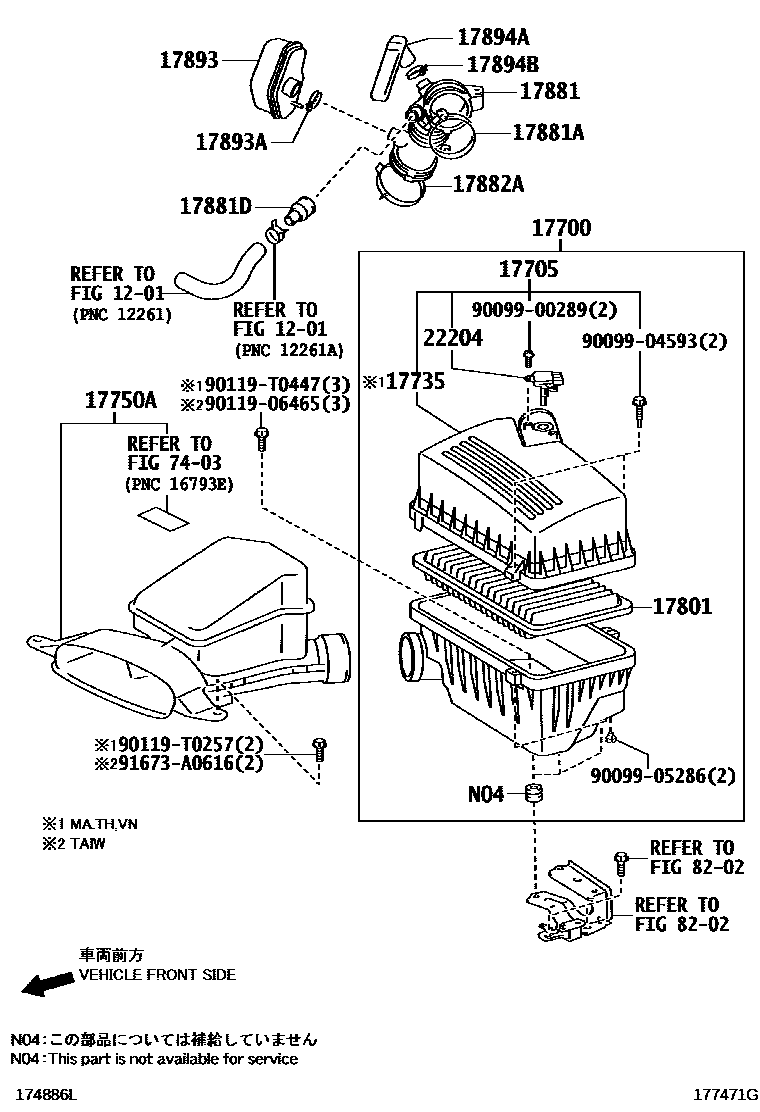

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201

17700CLEANER ASSY, AIR

main17700-0H111i1AZFE..ACV51..MA,TH,VN201203-201504

main17700-0H122i1AZFE..ACV51..TAIW201112-201503

main17700-0V080i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main17700-0V090i2ARFXE..AVV50..RHD201203-201811

main17700-0V100i2ARFE..ASV50..TAIW201112-201503

main17700-0V130i2ARFXE..AVV50..TAIW201202-201809

main17700-0V160i6ARFSE..ASV51..MA,TH,VN201502-201903

main17700-0V170i6ARFSE..ASV51..TAIW201503-202007

17705CAP SUB-ASSY, AIR CLEANER

main17705-0H112i1AZFE..ACV51..MA,TH,VN201203-201504

main17705-0H122i1AZFE..ACV51..TAIW201112-201503

main17705-0V080i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main17705-0V090i2ARFXE..AVV50..IND,TH201203-201811

main17705-0V100i2ARFE..ASV50..TAIW201112-201503

main17705-0V110i2ARFXE..AVV50..TAIW201202-201809

main17705-0V180i6ARFSE..ASV51..TAIW201503-202007

main17705-0V190i6ARFSE..ASV51..MA,TH,VN201502-201903

17735CAP, AIR CLEANER

main17735-0H090i1AZFE..ACV51..MA,TH,VN201203-201504

main17735-0V080i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main17735-0V090i2ARFXE..AVV50..IND,TH201203-201811

main17735-0V190i6ARFSE..ASV51..MA,TH,VN201502-201903

17750AINLET ASSY, AIR CLEANER

main17750-0H100i1AZFE..ACV51..MA,TH,VN201203-201504

main17750-0H110i1AZFE..ACV51..TAIW201112-201503

main17750-0V050i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201603

sub17750-0V051

main17750-0V051i2ARFE..ASV50201604-201903

main17750-0V060i2ARFXE..AVV50..RHD201203-201811

main17750-0V090i2ARFE..ASV50..TAIW201112-201503

main17750-0V100i2ARFXE..AVV50..TAIW201202-201809

main17750-0V140i6ARFSE..ASV51..MA,TH,VN201502-201903

main17750-0V150i6ARFSE..ASV51..TAIW201503-202007

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H030i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201112-201903

main17801-0V040i2ARFXE..AVV50..IND,TH201306-202007

(L)

main17801-38011i6ARFSE..ASV51;2ARFXE..AVV50..RHD201306-202007

(J)

main17801-38011i2ARFXE..AVV50..TH201202-201809

17881HOSE, AIR CLEANER, NO.1

main17881-0H100i1AZFE..ACV51..MA,TH,VN201203-201504

main17881-0H110i1AZFE..ACV51..TAIW201112-201503

main17881-0V100i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main17881-0V110i2ARFXE..AVV50..IND,TH201203-201811

main17881-0V140i2ARFE..ASV50..TAIW201112-201503

main17881-0V150i2ARFXE..AVV50..TAIW201202-201809

main17881-0V230i6ARFSE..ASV51..MA,TH,VN201502-201903

main17881-0V250i6ARFSE..ASV51..TAIW201503-202007

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i1AZFE,2ARFE..ACV51,ASV50;2ARFXE..AVV50..IND,TAIW,TH201112-202007

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i1AZFE,2ARFE..ACV51,ASV50;2ARFXE..AVV50..IND,TAIW,TH201112-202007

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2ARFXE..AVV50201112-201811

main90466-71001i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main96111-10750i6ARFSE..ASV51201502-202007

main96111-10850i2ARFE..ASV50..TAIW201112-201503

17893RESONATOR, INTAKE AIR

main17893-0H070i1AZFE..ACV51..MA,TH,VN201203-201504

main17893-0H080i1AZFE..ACV51..TAIW201112-201503

main17893-0V080i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main17893-0V090i2ARFXE..AVV50..RHD201203-201811

main17893-0V120i2ARFE..ASV50..TAIW201112-201503

main17893-0V130i2ARFXE..AVV50..TAIW201202-201809

main17893-0V160i6ARFSE..ASV51..MA,TH,VN201502-201903

main17893-0V170i6ARFSE..ASV51..TAIW201503-202007

17893ACLAMP, HOSE

main96111-10400i6ARFSE..ASV51201502-202007

main96111-10430i1AZFE..ACV51201112-201504

17894ARESONATOR, INTAKE AIR, NO.2

main17894-0H070i1AZFE..ACV51..MA,TH,VN201203-201504

main17894-0H080i1AZFE..ACV51..TAIW201112-201503

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10400i1AZFE..ACV51201112-201504

main96111-10430i2ARFE..ASV50;2ARFXE..AVV50..IND,TAIW,TH201112-201903

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0P010i1AZFE..ACV51..TAIW201112-201503

(L)

main22204-0P010i1AZFE..ACV51..MA,TH,VN201203-201504

main22204-0V020i2ARFXE..AVV50..IND,TH;2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main22204-0V020i2AR#..ASV50,AVV50..TAIW201112-201809

(L)

main22204-28010i2AR#..ASV50,AVV50..TAIW201112-201809

(J)

main22204-31020i1AZFE..ACV51..TAIW201112-201503

(J)

main22204-75040i6ARFSE..ASV51201502-202007

7403

8202

9009900289

main90099-00289

9009904593

main90099-04593

9009905286

main90099-05286

9011906465

main90119-06465

90119T0257

main90119-T0257

90119T0447

main90119-T0447

91673A0616

main91673-A0616

24 parts on this diagram · 4 diagrams in section
