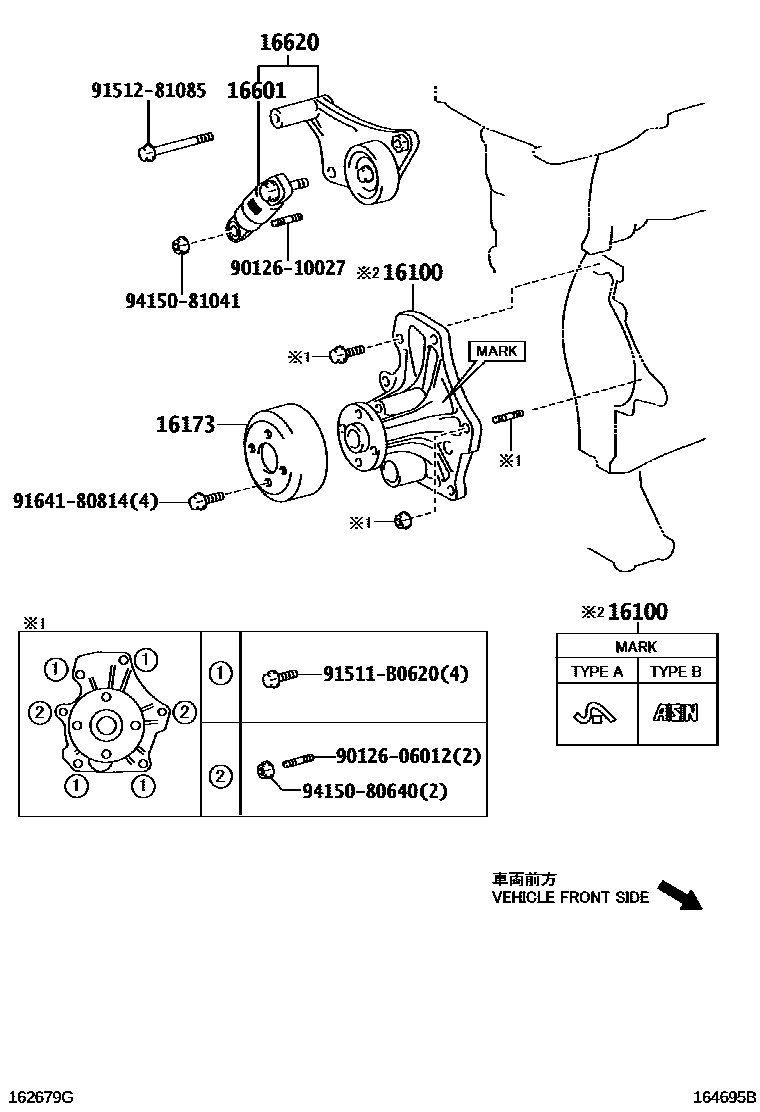

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-09600i2ARFE..ASV50..TAIW201112-201503

sub16100-09601

main16100-09700i6ARFSE..ASV51201502-202007

main16100-0H040i1AZFE..ACV51..MA,TH,VN201203-201504

TYPE C:REFER ILLUST.

sub16100-0H050

main16100-0H050i1AZFE..ACV51..MA,TH,VN201203-201504

TYPE A:REFER ILLUST.

main16100-0H060i1AZFE..ACV51..TAIW201112-201503

TYPE B:REFER ILLUST.

main16100-39515i2ARFE..ASV50..IDN,MA,PHL201203-201903

*107

sub16100-39516

main16100-39515i2ARFE..ASV50..IDN,MA,PHL,TH201303-201809

*286

sub16100-39516

main16100-39515i2ARFE..ASV50..IDN,MA,PHL,TH201502-201809

SINGAPORE SPEC,*286

sub16100-39516

main161A0-39025i2ARFXE..AVV50..TH201202-201809

main161A0-39025i2ARFXE..AVV50..MA,TH201303-201809

*286

main161A0-39025i2ARFXE..AVV50..IND201504-201811

*107

16173PULLEY, WATER PUMP

main16173-0H010i1AZFE..ACV51201112-201504

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28050i1AZFE..ACV51201112-201504

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V020i2ARFE..ASV50..IDN,MA,PHL,TH201303-201305

*286

sub16620-0V021

main16620-0V021i2ARFE..ASV50..IDN,MA,PHL,TH201305-201405

*286

sub16620-0V022

main16620-0V022i2ARFE..ASV50..TH201502-201809

SINGAPORE SPEC,*286

main16620-0V022i2ARFE..ASV50..IDN,MA,PHL,TH201405-201809

*286

main16620-0V040i2ARFE..ASV50..TAIW201112-201305

TYPE A:REFER ILLUST.

sub16620-0V041

main16620-0V041i2ARFE..ASV50..TAIW201305-201401

TYPE A:REFER ILLUST.

sub16620-0V042

main16620-0V042i2ARFE..ASV50..TAIW201401-201503

TYPE A:REFER ILLUST.

main16620-0V050i6ARFSE..ASV51201502-201508

sub16620-0V051

main16620-0V050i2ARFE..ASV50..TAIW201410-201503

TYPE B:REFER ILLUST.

sub16620-0V051

main16620-0V051i6ARFSE..ASV51201509-202007

main16620-28090i1AZFE..ACV51201112-201504

main16620-36010i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201402

*107

sub16620-36011

main16620-36011i2ARFE..ASV50..IND,VN201402-201509

*107

sub16620-36012

main16620-36012i2ARFE..ASV50..IND,VN201510-201712

*107

sub16620-36013

main16620-36013i2ARFE..ASV50201801

(J),*286

main16620-36013i2ARFE..ASV50201801-201903

*107

9012606012

main90126-06012

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

11 parts on this diagram · 5 diagrams in section
