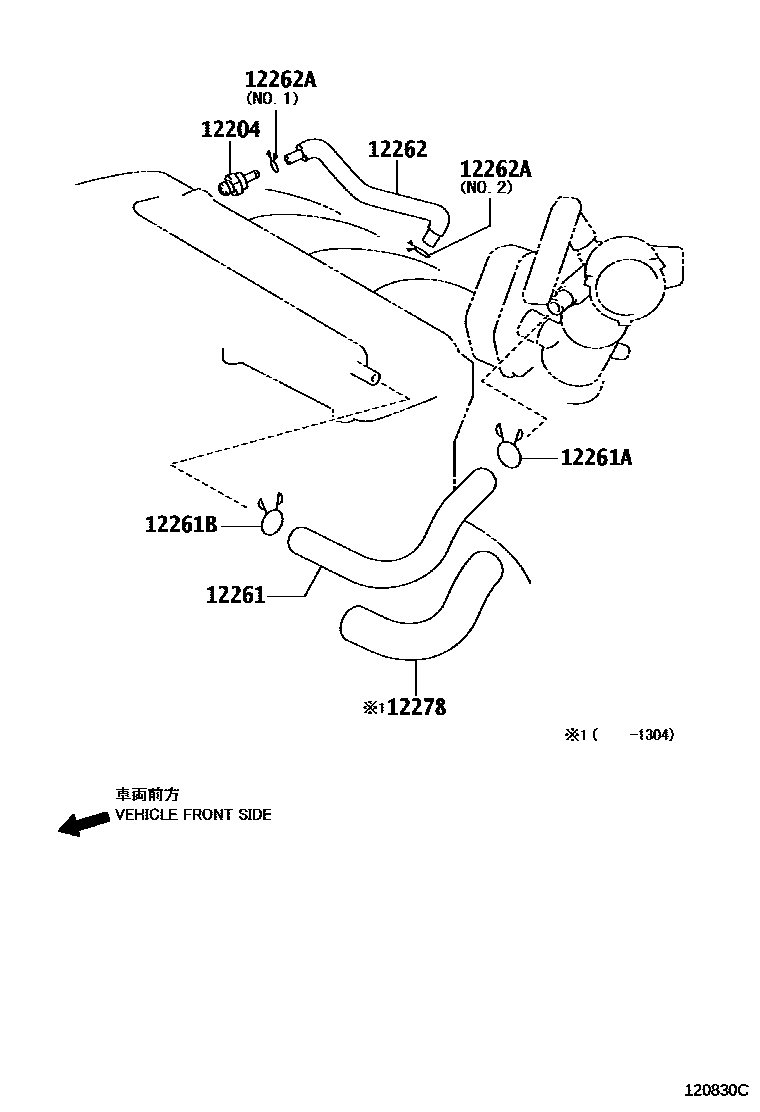

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-0V030i6ARFSE..ASV51201502-202007

main12204-28020i1AZFE..ACV51201112-201504

main12204-36020i2ARFE..ASV50..TH201502-201809

SINGAPORE SPEC,*286

main12204-36020i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201809

*286

main12204-36020i2ARFXE..AVV50..TAIW201112-201809

main12204-36020i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201501

*107

main12204-36030i2ARFE..ASV50..IDN,MA,PHL201501-201903

*107

main12204-36030i2ARFXE..AVV50..IND201504-201811

12261HOSE, VENTILATION

main12261-0H090i1AZFE..ACV51..MA,TH,VN201203-201504

main12261-0H100i1AZFE..ACV51..TAIW201112-201503

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-21004i6ARFSE..ASV51201112-202007

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-T0027i1AZFE,2ARFE..ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201310-201504

(L)

main90467-21004i2ARFXE..AVV50..RHD201112-201903

main90467-21004i1AZFE,2ARFE..ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201310-201504

(J)

12262HOSE, VENTILATION, NO.2

main12262-0H020i1AZFE..ACV51..TAIW201112-201503

(L)

main12262-0H030i1AZFE..ACV51..MA,TH,VN201203-201504

(L)

main12262-0V010i2ARFE..ASV50..TAIW201112-201503

main12262-0V020i2ARFXE..AVV50..TAIW201202-201503

sub12262-0V040

main12262-0V040i2ARFXE..AVV50..TAIW201503-201809

main12262-28021i1AZFE..ACV51201112-201207

(J)

main12262-36030i2ARFXE..AVV50..TH201303-201309

*286

sub12262-36080

main12262-36030i2ARFXE..AVV50..RHD201203-201309

*107

sub12262-36080

main12262-36040i2ARFE..ASV50..TH201303-201809

*286

main12262-36040i2ARFE..ASV50..IDN,MA,PHL,TH201203-201903

*107

main12262-36040i2ARFE..ASV50..IDN,MA,PHL,TH201502-201809

SINGAPORE SPEC,*286

main12262-36080i2ARFXE..AVV50..TH201309-201811

*107

main12262-36080i2ARFXE..AVV50..TH201309-201809

*286

main12262-36100i6ARFSE..ASV51201502-202007

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13103i1AZFE..ACV51201112-201504

NO.1

main90467-16035i2AR#..ASV50,AVV50..TAIW201112-201809

main90467-16035i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201809

*286

main90467-16035i1AZFE..ACV51201112-201504

NO.2

main90467-16035i2AR#..ASV50,AVV50..IND,VN201203-201903

*107

main90467-16035i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201502-201809

SINGAPORE SPEC,*286

main90467-17126i6ARFSE..ASV51201502-202007

12278INSULATOR, VENTILATION HOSE HEAT

main12278-0H040i1AZFE..ACV51..MA,TH,VN201203-201304

main12278-0H050i1AZFE..ACV51..TAIW201112-201304

7 parts on this diagram · 3 diagrams in section
