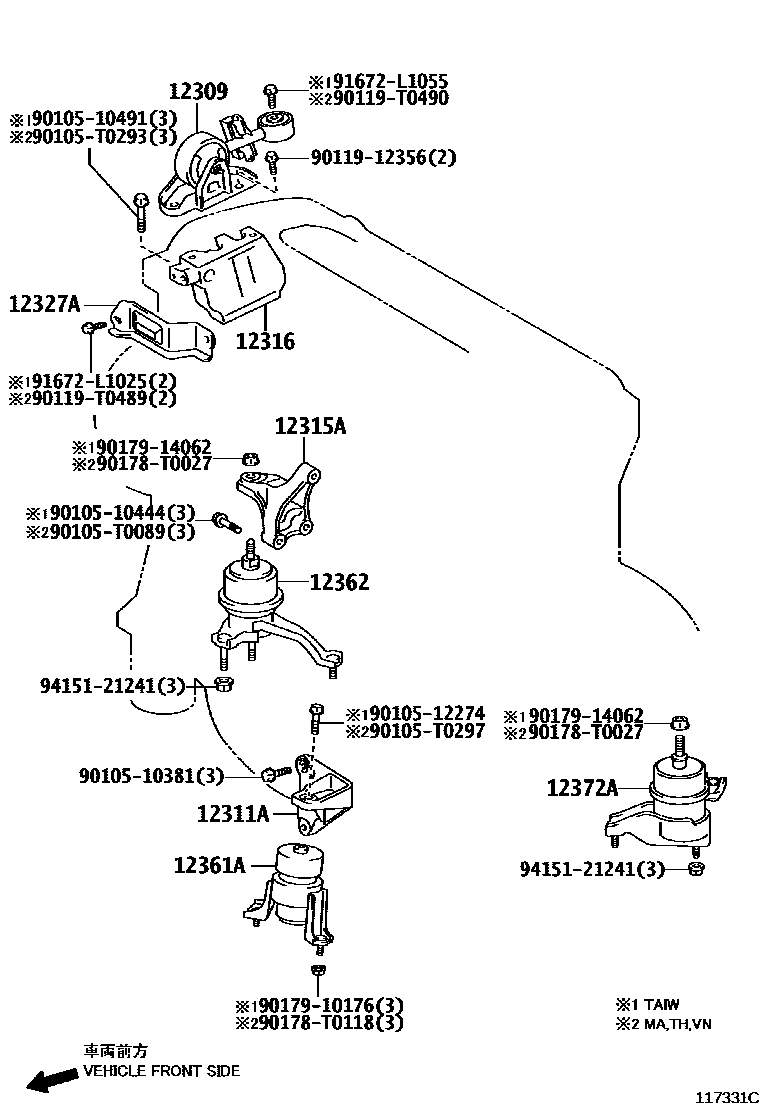

MOUNTING

0001 1 0002 1

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-0H071i1AZFE..ACV51201112-201504

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0H110i1AZFE..ACV51..TAIW201112-201503

main12311-0V090i2ARFE,6ARFSE..ASV5#..IDN,IND,MA,PHL,TH,VN201203-201903

main12311-0V100i6ARFSE..ASV51..TAIW201112-202007

main12311-0V110i2ARFXE..AVV50..RHD201203-201811

main12311-0V120i2ARFXE..AVV50..TAIW201202-201809

main12311-28210i1AZFE..ACV51..MA,TH,VN201203-201504

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0H050i1AZFE..ACV51..TAIW201112-201503

main12315-0H090i1AZFE..ACV51..MA,TH,VN201203-201504

main12319-0V090i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main12319-0V100i2ARFE..ASV50..TAIW201112-202007

main12319-0V110i2ARFXE..AVV50..IND,TH201203-201811

main12319-0V120i2ARFXE..AVV50..TAIW201202-201809

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-0H020i1AZFE..ACV51..TAIW201112-201503

main12316-0H030i1AZFE..ACV51..MA,TH,VN201203-201504

(L)

main12316-28061i1AZFE..ACV51..MA,TH,VN201203-201210

(J)

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0H020i1AZFE..ACV51..TAIW201112-201503

main12327-0H030i1AZFE..ACV51..MA,TH,VN201203-201504

main12327-0V080i2AR#,6ARFSE..ASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main12327-0V090i2AR#..ASV50,AVV50..TAIW201112-202007

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0V100i1AZFE,2ARFE..ACV51,ASV50..TAIW201112-201503

main12361-0V130i2ARFXE..AVV50..TAIW201202-201809

main12361-0V170i6ARFSE..ASV51;2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201502-202007

main12361-36080i1AZFE,2ARFE..ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main12361-36090i2ARFXE..AVV50..RHD201203-201509

sub12361-36091

main12361-36091i2ARFXE..AVV50..RHD201510-201811

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-0V090i2ARFXE,6ARFSE..ASV51,AVV50..TAIW201112-201703

sub12362-0V091

main12362-0V091i2ARFXE,6ARFSE..ASV51,AVV50..TAIW201704-202007

main12362-36050i1AZFE,2AR#..ACV51,ASV50,AVV50..IDN,MA,PHL,TH201203-201208

sub12362-36051

main12362-36051i1AZFE,2AR#..ACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201208-201402

sub12362-36052

main12362-36052i2AR#,6ARFSE..ASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201403-201903

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0H040i1AZFE..ACV51..TAIW201112-201503

main12372-0H170i6ARFSE..ASV51..TAIW201112-202007

main12372-28020i1AZFE..ACV51..MA,TH,VN201203-201504

main12372-28250i2ARFXE..AVV50201202-201811

main12372-36040i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

9010510381

main90105-10381

9010510444

main90105-10444

9010510491

main90105-10491

9010512274

main90105-12274

90105T0089

main90105-T0089

90105T0293

main90105-T0293

90105T0297

main90105-T0297

9011912356

main90119-12356

90119T0489

main90119-T0489

90119T0490

main90119-T0490

90178T0027

main90178-T0027

90178T0118

main90178-T0118

9017910176

main90179-10176

9017914062

main90179-14062

91672L1025

main91672-L1025

91672L1055

main91672-L1055

9415121241

main94151-21241

25 parts on this diagram · 2 diagrams in section
