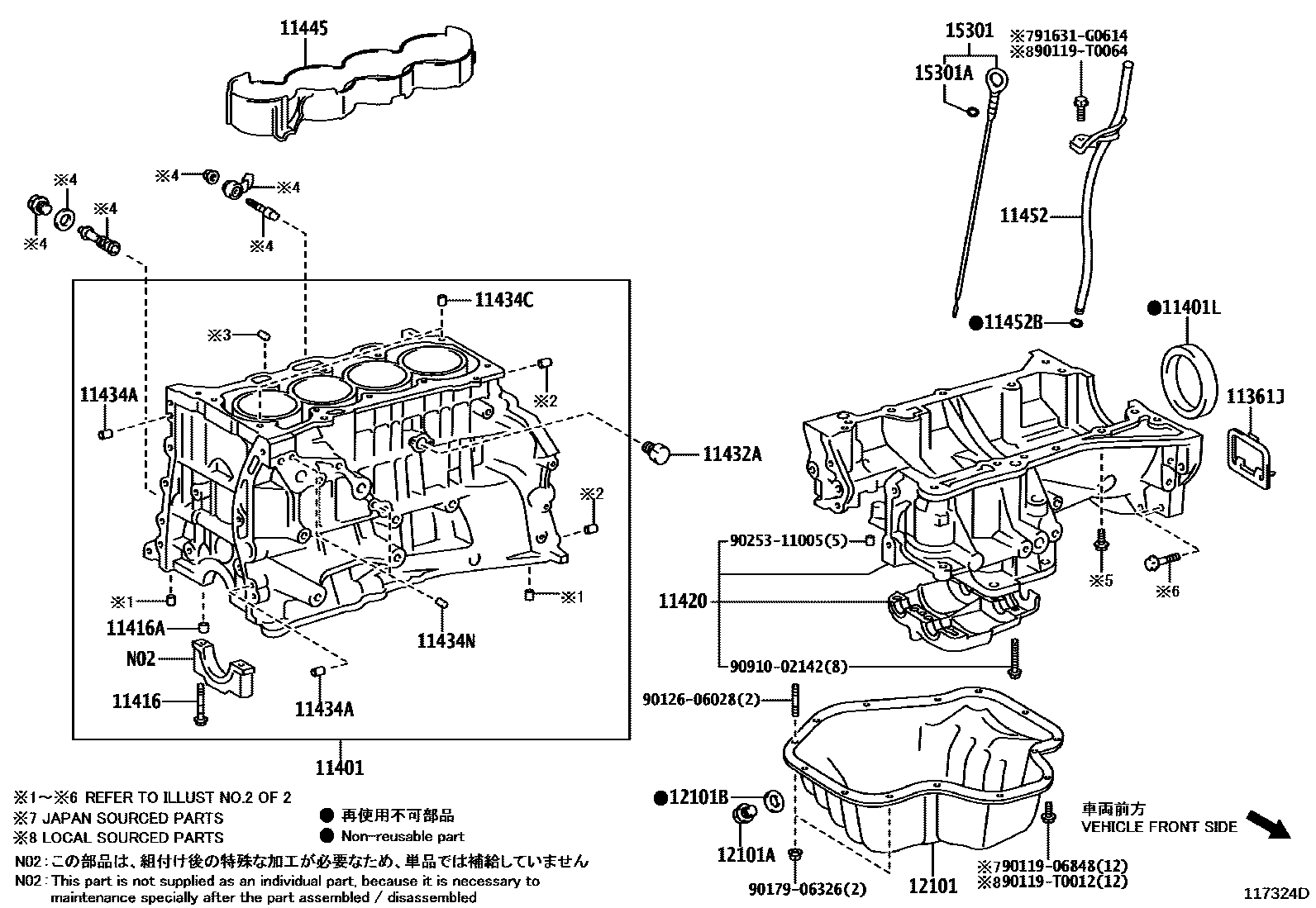

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0V010i1AZFE..ACV51201112-202007

(L)

main11361-0V010i2ARFXE..AVV50..IND,TH;2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main11361-28010i2ARFE..ASV50..IDN,MA,PHL,TH,VN;2ARFXE,6ARFSE..ASV51,AVV50..MA,TAIW,TH,VN¥540201112-202007

(J)

main11361-28010i2AR#..ASV50,AVV50..TAIW¥540201112-201503

11401BLOCK SUB-ASSY, CYLINDER

main11410-09261i1AZFE..ACV51201112-201403

sub11410-09262

main11410-09262i1AZFE..ACV51201403-201504

main11410-09570i2AR#..ASV50,AVV50..TAIW201112-201809

sub11410-39126¥165,000

main11410-09690i6ARFSE..ASV51201502-202007

main11410-39125i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥263,000201303-201405

*286

sub11410-39126¥165,000

sub90250-06003¥90

main11410-39125i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN¥263,000201203-201405

*107

sub11410-39126¥165,000

sub90250-06003¥90

main11410-39126i2AR#..ASV50,AVV50..IND,VN¥165,000201405-201903

*107

main11410-39126i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥165,000201405-201809

*286

11401LSEAL, ENGINE REAR OIL

main90311-89006i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥1,390201303-201309

*286

sub90311-89013¥1,390

main90311-89006i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN¥1,390201203-201309

*107

sub90311-89013¥1,390

main90311-89013i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥1,390201309-201407

*286

sub90311-89015¥1,390

main90311-89013i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN¥1,390201309-201408

*107

sub90311-89015¥1,390

main90311-89015i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥1,390201408-201809

*286

main90311-89015i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥1,390201408-201903

*107

main90311-89015i2ARFE..ASV50..TH¥1,390201502-201809

SINGAPORE SPEC,*286

main90311-C0023i2AR#..ASV50,AVV50..TAIW201112-201809

main90311-C0041i6ARFSE..ASV51201502-202007

main90311-T0040i1AZFE..ACV51201112-201504

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124i1AZFE..ACV51¥220201112-201504

sub90910-02206¥220

main90910-02173i2ARFXE..AVV50..MA,TH;2ARFE..ASV50..IDN,MA,PHL¥240201203-201903

*107

main90910-02173i2AR#..ASV50,AVV50..TAIW¥240201112-201406

main90910-02173i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥240201303-201809

*286

main90910-02173i2AR#..ASV50,AVV50..TAIW¥240201406-202007

(J)

main90910-02173i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥240201502-201809

SINGAPORE SPEC,*286

main90910-C2005i2AR#..ASV50,AVV50..TAIW201406-202007

(L)

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i1AZFE..ACV51¥140201112-201612

main90253-13017i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥140201203-201903

*107

main90253-13017i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥140201303-201809

*286

main90253-13017i2AR#..ASV50,AVV50..TAIW¥140201310-202007

(J)

main90253-13017i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥140201502-201809

SINGAPORE SPEC,*286

main90253-C0006i1AZFE..ACV51201310-202007

(L)

11420CRANKCASE ASSY, STIFFENING

main11420-0H051i1AZFE..ACV51201112-201504

main11420-0V010i2ARFE..ASV50..TH201502-201809

SINGAPORE SPEC,*286

main11420-0V010i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201809

*286

main11420-0V020i2AR#..ASV50,AVV50..TAIW201112-201809

main11420-0V030i6ARFSE..ASV51201502-202007

main11420-36020i2ARFXE..AVV50..MA,TH;2ARFE..ASV50..IDN,MA,PHL¥33,500201203-201903

*107

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1AZFE..ACV51¥230201112-201504

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥90201303-201809

L=14,OD=6,*286

main90250-06003i2AR#..ASV50,AVV50..IND,VN¥90201203-201903

L=14,OD=6,*107

main90250-06003i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥90201502-201809

L=14,OD=6,SINGAPORE SPEC,*286

main90250-06003i2AR#..ASV50,AVV50..TAIW¥90201112-201809

L=14,OD=6

main90250-08120i1AZFE..ACV51¥140201112-201504

L=18,OD=8

main90250-C0010i6ARFSE..ASV51201502-202007

L=14,OD=6

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-14003i1AZFE..ACV51¥140201112-201504

L=12,OD=14

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥90201203-201903

*107

main90250-06003i1AZFE..ACV51;2AR#..ASV50,AVV50..TAIW¥90201112-201809

main90250-C0010i6ARFSE..ASV51201502-202007

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0H020i1AZFE..ACV51¥2,700201112-201504

main11445-0V020i2AR#..ASV50,AVV50..TAIW201112-201809

(L)

main11445-0V020i6ARFSE..ASV51201502-202007

main11445-36010i2AR#..ASV50,AVV50..IND,VN¥1,700201203-201903

*107

main11445-36010i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥1,700201502-201809

SINGAPORE SPEC,*286

main11445-36010i2ARFE..ASV50..TH¥1,700201303-201809

*286

main11445-36010i2AR#..ASV50,AVV50..TAIW¥1,700201112-201809

(J)

11452GUIDE, OIL LEVEL GAGE

main11452-0H060i1AZFE..ACV51..MA,TH,VN201203-201504

(L)

main11452-0H080i1AZFE..ACV51..TAIW201112-201503

(L)

main11452-0V020i6ARFSE..ASV51;2ARFXE..AVV50..TAIW¥1,440201112-202007

sub11452-36020¥2,070

main11452-28060i1AZFE..ACV51..RHD¥2,070201203-201207

(J)

main11452-36021i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN¥2,070201203-201309

*107

main11452-36021i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥2,070201303-201309

*286

main11452-36050i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥1,300201309-201809

*286

main11452-36050i2AR#..ASV50,AVV50..IND,VN¥1,300201309-201903

*107

main11452-36050i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥1,300201502-201809

SINGAPORE SPEC,*286

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-C0037i2AR#..ASV50,AVV50..TAIW201112-202007

main96721-19010i1AZFE..ACV51¥190201112-201504

main96741-19010i2AR#..ASV50,AVV50..IND,VN¥250201203-201903

*107

main96741-19010i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥250201303-201809

*286

main96741-19010i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥250201502-201809

SINGAPORE SPEC,*286

12101PAN SUB-ASSY, OIL

main12101-0H070i1AZFE..ACV51..TAIW201112-201503

main12101-0H080i1AZFE..ACV51..MA,TH,VN201203-201504

main12101-0V020i6ARFSE..ASV51;2ARFXE..AVV50..TAIW201112-202007

main12101-36040i2AR#..ASV50,AVV50..IND,VN¥10,500201203-201903

*107

main12101-36040i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥10,500201303-201809

*286

main12101-36040i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥10,500201502-201809

SINGAPORE SPEC,*286

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2ARFE..ASV50..TH¥160201303-201809

*286

main90341-12012i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥160201203-201903

*107

main90341-12012i1AZFE..ACV51;2AR#..ASV50,AVV50..TAIW¥160201112-202007

main90341-12012i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥160201502-201809

SINGAPORE SPEC,*286

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2AR#..ASV50,AVV50..TAIW¥90201112-201504

main90430-12031i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥90201203-201903

*107

main90430-12031i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥90201303-201809

*286

main90430-12031i2AR#..ASV50,AVV50..TAIW¥90201403-202007

(J)

main90430-12031i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥90201502-201809

SINGAPORE SPEC,*286

main90430-C0005i6ARFSE..ASV51;2ARFXE..AVV50..TAIW201403-202007

(L)

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0V010i2AR#..ASV50,AVV50..TAIW¥820201112-202007

main15301-28030i1AZFE..ACV51¥1,200201112-201301

sub15301-28031¥1,000

main15301-28031i1AZFE..ACV51¥1,000201301-201504

main15301-36030i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥1,200201203-201207

*107

sub15301-36031¥1,000

main15301-36031i2AR#..ASV50,AVV50..IDN,MA,PHL,TH¥1,000201502-201809

SINGAPORE SPEC,*286

sub15301-36032¥750

main15301-36031i2ARFE..ASV50..TH¥1,000201303-201809

*286

sub15301-36032¥750

main15301-36031i2AR#..ASV50,AVV50..IND,VN¥1,000201207-201903

*107

sub15301-36032¥750

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2ARFE..ASV50;2ARFXE..AVV50..IND,TAIW,TH¥140201112-202007

main96741-19005i2AR#..ASV50,AVV50..IND,VN¥140201504-201903

*107

9011906848

main90119-06848¥60

90119T0012

main90119-T0012

90119T0064

main90119-T0064

9012606028

main90126-06028¥60

9017906326

main90179-06326¥60

9025311005

main90253-11005¥60

9091002142

main90910-02142¥180

91631G0614

main91631-G0614¥60

26 parts on this diagram · 7 diagrams in section
