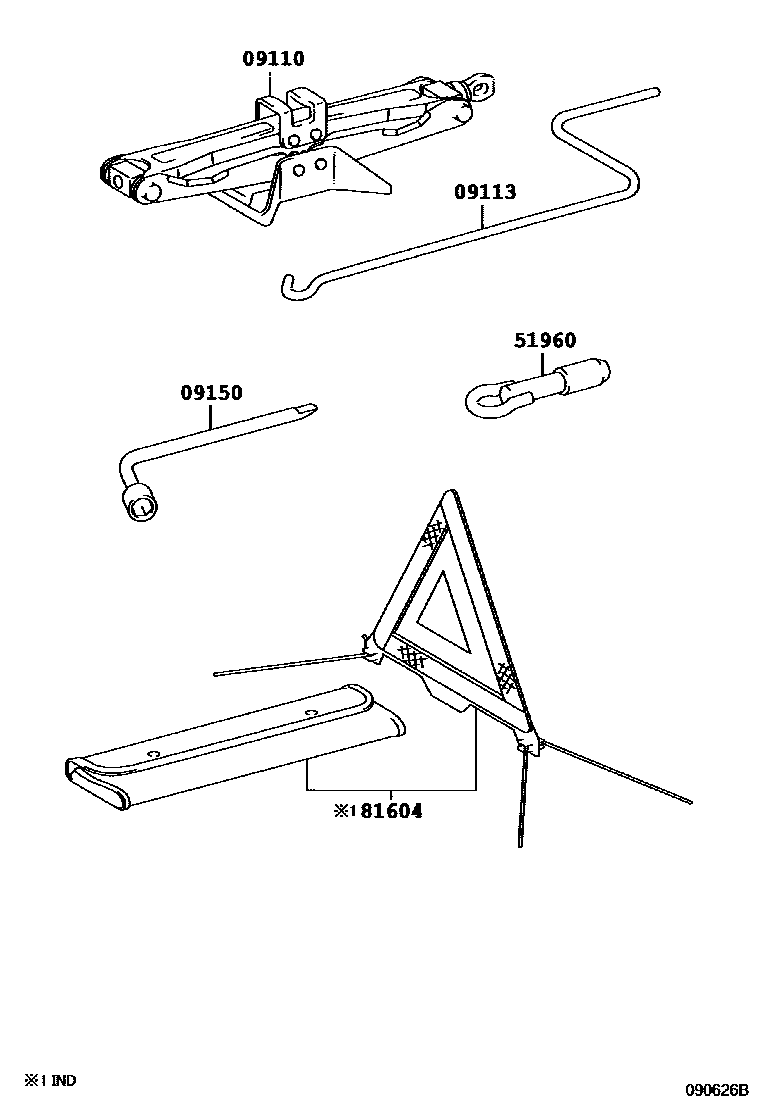

STANDARD TOOL

09110JACK ASSY

main09111-06160iACV51,ASV50,AVV50..TAIW201112-201603

sub09111-12180

main09111-0D110iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main09111-33040iASV51,AVV50..TAIW201604-202007

09113HANDLE, JACK

main09113-06090iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main09113-06110iASV51,AVV50..TAIW201112-201603

main09113-33010iASV51,AVV50..TAIW201604-202007

09150WRENCH, HUB NUT BOX

main09150-02080iASV50,AVV50..IND201510-201811

main09150-02090iASV5#..VN201510-201903

(L)

main09150-0A010iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH201203-201809

main09150-16010iACV51,ASV50,AVV50..TAIW201112-202007

main09150-40010iASV5#..VN201504-201512

(J)

main09150-40010iACV51,ASV50..VN201207-201504

51960HOOK ASSY, FRONT

main51960-0D100iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

81604REFLECTOR SET, TRIANGLE

main81604-02020iASV50,AVV50..IND201308-201811

5 parts on this diagram · 1 diagram in section
