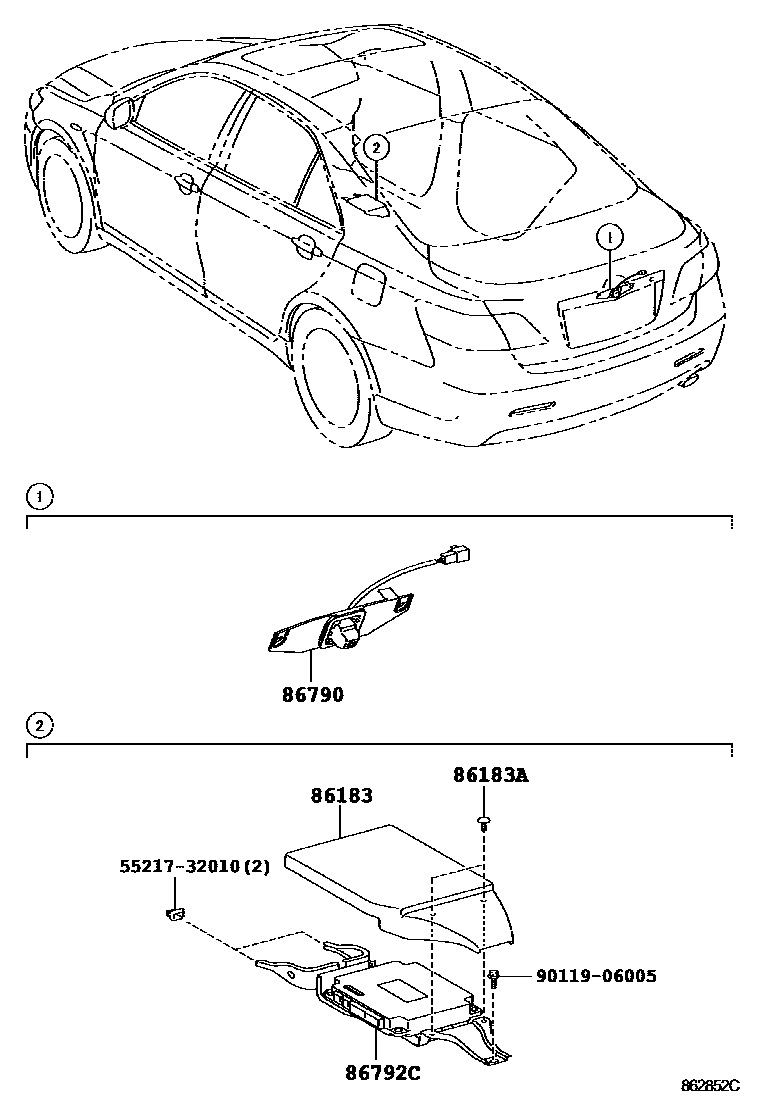

CAMERA & REAR MONITOR DISPLAY

86183COVER, AUDIO RACK

main86183-33020iGSV40..35Q..TAIW200903

TW 3.5V HI PACKAGE

86183ACLIP(FOR AUDIO RACK COVER)

main90467-05161-C0iGSV40..35Q..TAIW200903

BLACK

sub90467-05161

main90467-05161-C0iGSV40..35Q..TAIW200903

TW 3.5V HI PACKAGE,BLACK

sub90467-05161

86790CAMERA ASSY, TELEVISION

main86790-33040iGSV40..35Q..TAIW200605-200907

sub86790-33041

main86790-33040iGSV40..TH200608-200907

AUDIO-6CD CHANGER,6SPEAKER

sub86790-33041

main86790-33040iAHV40,GSV40..(35Q,HBD)..(TAIW,TH)200903-201003

TW 3.5V HI PACKAGE

sub86790-33041

main86790-33040iAHV40,GSV40..(35Q,HBD)..(TAIW,TH)200903-201003

TW 2.4G P PACKAGE

sub86790-33041

main86790-33041iAHV40,GSV40..(35Q,HBD)..(TAIW,TH)201004

TW 3.5V HI PACKAGE

main86790-33041iAHV40,GSV40..(35Q,HBD)..(TAIW,TH)201004

TW 2.4G P PACKAGE

main86790-33041iAHV40,GSV40..(35Q,HBD)..(TAIW,TH)201004

AUDIO-6CD CHANGER,6SPEAKER

main86790-33041iAHV40,GSV40..(35Q,HBD)..(TAIW,TH)201004

AUDIO-RADIO LESS(WITH/COVER),6SPEAKER

86792CCOMPUTER, PARKING ASSIST

main86792-33020iGSV40..35Q..TAIW200903

TW 3.5V HI PACKAGE

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9011906005

main90119-06005

6 parts on this diagram · 1 diagram in section
