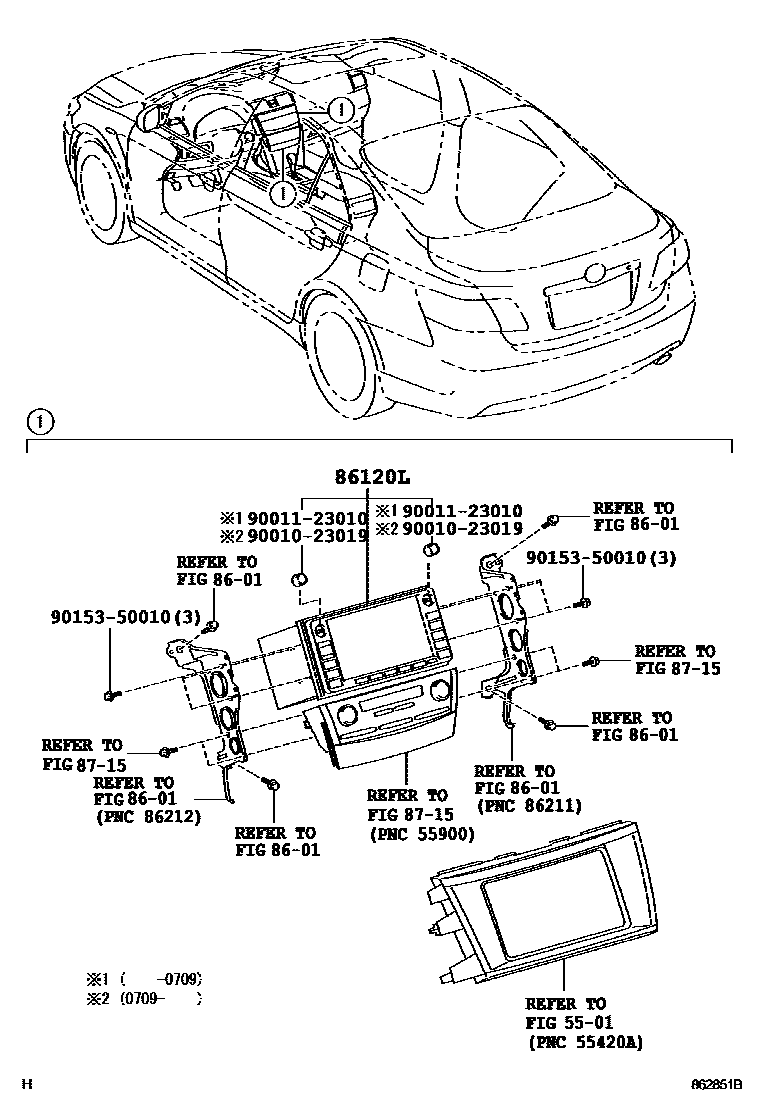

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0003 1 0005 1

5501

8601

86120LRECEIVER ASSY, NAVIGATION

main86120-33A50iACV40,GSV40..(24V,35Q)..TH200608-200907

AISHIN AW,SINGAPORE OR BRUNEI SPEC&AUDIO-6CD CHANGER,6SPEAKER

main86120-33B40iGSV40..35Q..TAIW200903

DENSO,ID=E8013,TW 3.5V HI PACKAGE

sub86120-33B41

main86120-33C40iAHV40200907

AISHIN AW

main86120-33C60iGSV40..35Q..TAIW200605-200903

DENSO,ID=E8003

sub86120-33C61

main86120-33C80iACV40..24G..TAIW200903

FUJITSU TEN,TW 2.4G P PACKAGE

sub86120-33C81

main86120-52720iACV41..20G..TAIW200605-200709

FUJITSU TEN,TW 2.0G HI PACKAGE

sub86120-52721

8715

9001023019

main90010-23019

9001123010

main90011-23010

9015350010

main90153-50010

7 parts on this diagram · 3 diagrams in section
