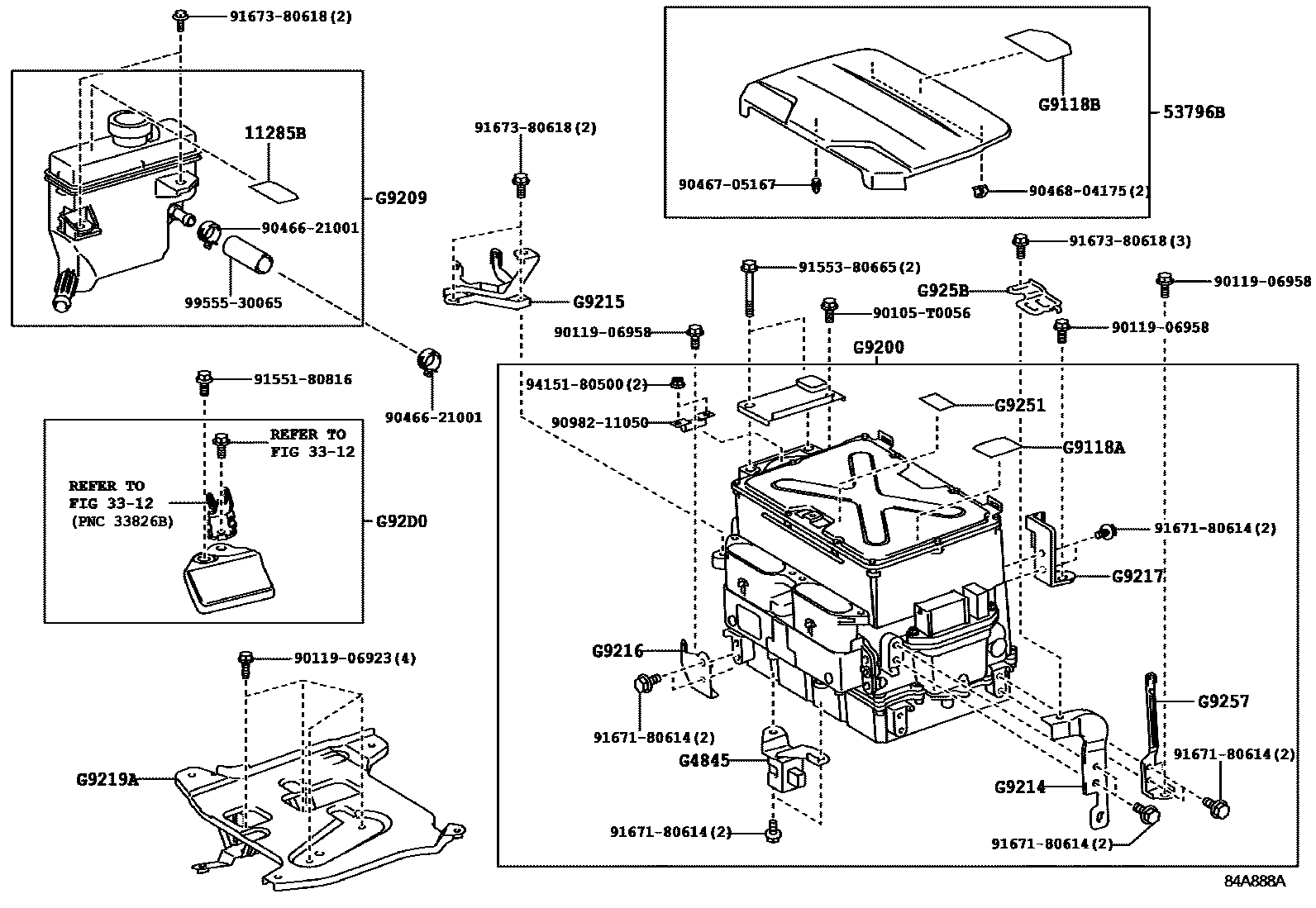

HEV INVERTER

11285BLABEL, COOLANT SYSTEM NOTICE

main11285-31010i2AZFXE..AHV40200907

3312

53796BCOVER, ENGINE ROOM SIDE, LH NO.2

main51470-30010iAHV40200907-200908

sub51470-30011

main51470-30011iAHV40200908

G4845SENSOR, CIRCUIT BREAKER, NO.1

mainG484533010iAHV40200907

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911830020iAHV40200907-201203

G9118BLABEL, POWER CONTROL UNIT CAUTION

mainG911830030iAHV40200907

G9200INVERTER ASSY, W/CONVERTER

mainG920033100iAHV40200907-201203

subG9200-33101

G9209TANK SUB-ASSY, INVERTER RESERVE

mainG920933010iAHV40200907

G9214BRACKET, INVERTER, NO.1

mainG921433010iAHV40200907

G9215BRACKET, INVERTER, NO.2

mainG921533010iAHV40200907

G9216BRACKET, INVERTER, NO.3

mainG921633010iAHV40200907

G9217BRACKET, INVERTER, NO.4

mainG921733010iAHV40200907

G9219ABRACKET, INVERTER TRAY

mainG921933020iAHV40200907

G9251SEAT, INVERTER NAME

mainG925147010iAHV40200907-201203

G9257BRACKET, INVERTER, NO.5

mainG925733011iAHV40200907

G925BBRACKET, INVERTER, NO.6

mainG925B33020iAHV40200907

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D033010iAHV40200907

90105T0056

main90105-T0056

9011906923

main90119-06923

9011906958

main90119-06958

9046621001

main90466-21001

9046705167

main90467-05167

9046804175

main90468-04175

9098211050

main90982-11050

9155180816

main91551-80816

9155380665

main91553-80665

9167180614

main91671-80614

9167380618

main91673-80618

9415180500

main94151-80500

9955530065

main99555-30065

30 parts on this diagram · 1 diagram in section
