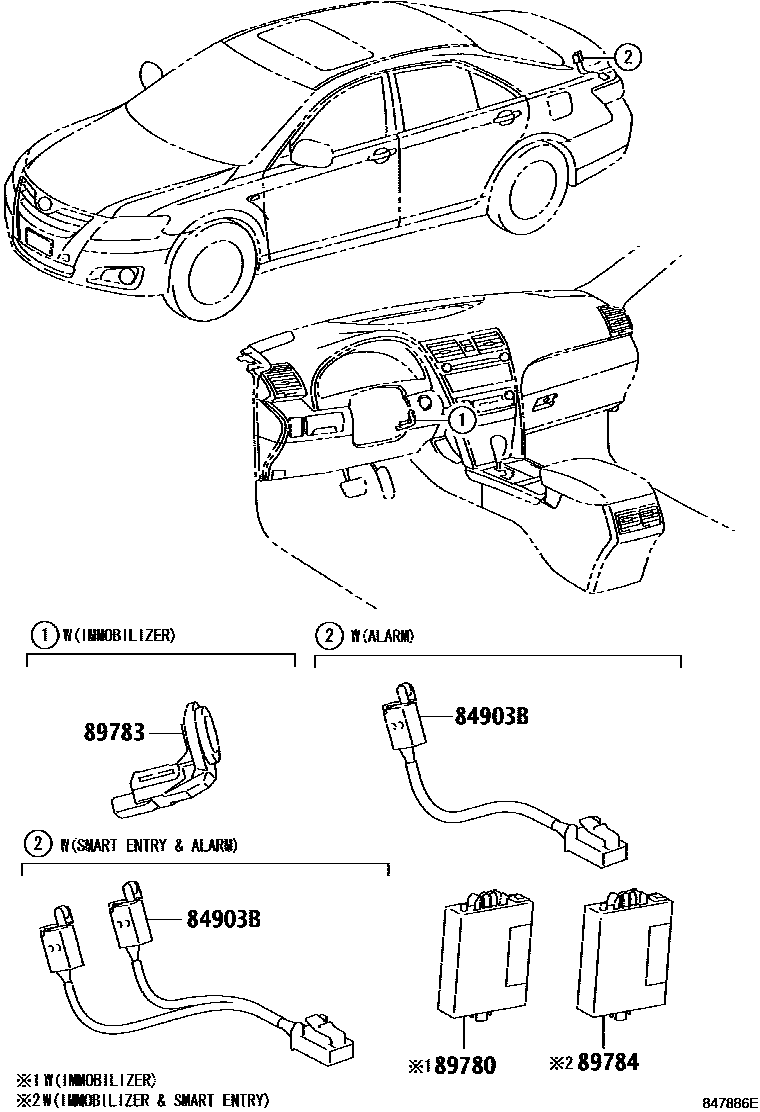

ANTI-THEFT DEVICE

0001 1 0004 1 0005 1 0006 1 0009 1

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-06010iACV40..24V..(MA,PHL);ACV4#..(20,20E,20G,24E,24G)..(IDN,MA,PHL,TH,VN)200608-200909

main84903-33160iACV4#..(20E,20G,24E)..TAIW200605-200903

main84903-33170iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

main84903-33170iGSV40;ACV40..24G..TAIW;ACV40..24V..(IDN,TH)200605-200909

main84903-33180iACV40..24E..TAIW200903

TW 2.4E SE PACKAGE

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-33160iACV40..24V..(MA,PHL);ACV4#..RHD..(20,20E,20G,24E,24G)200605-200909

main89780-33160iACV40..24E..TAIW200709-200903

TW 2.4E LOW PACKAGE

main89780-33190iACV41;ACV40..24E..TAIW;ACV40..24G..(IDN,TH,VN)200903

89783AMPLIFIER, TRANSPONDER KEY

main89783-06040iACV41..20G..TAIW200605-200803

sub89783-06041

main89783-06040iACV40..24E..TAIW200709-200803

TW 2.4E LOW PACKAGE

sub89783-06041

main89783-06041iACV40..24E..TAIW200804-200903

TW 2.4E LOW PACKAGE

sub89783-06042

main89783-06041iACV40..24V..(MA,PHL);ACV4#..RHD..(20,20E,20G,24E,24G)200804-200909

sub89783-06042

89784COMPUTER, IMMOBILIZER CODE

main89784-33010iGSV40200605-200607

sub89784-33011

main89784-33011iACV40,GSV40..(24G,35Q,35V)..TAIW200608-200909

main89784-33011iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

4 parts on this diagram · 5 diagrams in section
