CLEARANCE & BACK SONAR
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
SINGAPORE OR BRUNEI SPEC&AUDIO-6CD CHANGER,6SPEAKER
sub84490-33021
sub84490-33021
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-33070iGSV40..35V;ACV40..24G..(PHL,TH,VN);ACV40,GSV40..(24V,35Q)..(IDN,PHL,VN)200605-200909
TW 3.5V HI PACKAGE
TW 2.4G P PACKAGE
89341ASENSOR, ULTRASONIC, NO.1
SINGAPORE OR BRUNEI SPEC&AUDIO-6CD CHANGER,6SPEAKER,WHITE PEARL CS.,070
WHITE PEARL CS.,070
WHITE PEARL CS.,040
SINGAPORE OR BRUNEI SPEC,WHITE PEARL CS.,070
TW 2.4G P PACKAGE,WHITE PEARL CS.,040
SILVER ME.,1D4 ,1F8 ,4R0
SINGAPORE OR BRUNEI SPEC,SILVER ME.,1D4 ,1F8 ,4R0
SINGAPORE OR BRUNEI SPEC&AUDIO-6CD CHANGER,6SPEAKER,SILVER ME.,1D4 ,1F8 ,4R0
SILVER ME.,1D4 ,1F7 ,4R0
SILVER ME.,1D4 ,1F8 ,4R0 ,8S7 ,8U8
SILVER ME.,1F7
SILVER ME.,1D4
TW 2.4G P PACKAGE,SILVER ME.,1F7
DUMMY-MAT BLACK,1E3 ,209 ,4P9
DUMMY-MAT BLACK,1G3 ,202 ,6T6 ,6V1
DUMMY-MAT BLACK,209 ,8N8
SINGAPORE OR BRUNEI SPEC,DUMMY-MAT BLACK,209 ,8N8
SINGAPORE OR BRUNEI SPEC&AUDIO-6CD CHANGER,6SPEAKER,DUMMY-MAT BLACK,209 ,8N8
DUMMY-MAT BLACK,1G3 ,202 ,4U5 ,8S6
TW 2.4G P PACKAGE,DUMMY-MAT BLACK,1G3 ,202 ,4U5 ,8S6
DUMMY-MAT BLACK,1G3 ,209
89341BSENSOR, ULTRASONIC, NO.2
AUDIO-RADIO LESS(WITH/COVER),6SPEAKER,WHITE PEARL CS.,070
WHITE PEARL CS.,040
WHITE PEARL CS.,070
AUDIO-6CD CHANGER,6SPEAKER,WHITE PEARL CS.,070
AUDIO-AVX LESS 6SPEAKER,WHITE PEARL CS.,070
SILVER ME.,1D4
SILVER ME.,1F7
SILVER ME.,1D4 ,4R0
SILVER ME.,1D4 ,1F8 ,4R0
AUDIO-6CD CHANGER,6SPEAKER,SILVER ME.,1D4 ,1F8 ,4R0 ,8S7 ,8U8
AUDIO-RADIO LESS(WITH/COVER),6SPEAKER,SILVER ME.,1D4 ,1F8 ,4R0 ,8S7 ,8U8
AUDIO-6CD CHANGER,6SPEAKER,SILVER ME.,1D4 ,1F8 ,4R0
AUDIO-AVX LESS 6SPEAKER,SILVER ME.,1D4 ,1F8 ,4R0
SILVER ME.,1D4 ,1F7 ,4R0
AUDIO-RADIO LESS(WITH/COVER),6SPEAKER,DUMMY-MAT BLACK,1G3 ,209
DUMMY-MAT BLACK,1G3 ,202 ,6T6 ,6V1
DUMMY-MAT BLACK,1G3 ,202 ,6V1
DUMMY-MAT BLACK,209 ,8N8
AUDIO-6CD CHANGER,6SPEAKER,DUMMY-MAT BLACK,209 ,8N8
AUDIO-AVX LESS 6SPEAKER,DUMMY-MAT BLACK,209 ,8N8
DUMMY-MAT BLACK,1E3 ,209 ,4P9
DUMMY-MAT BLACK,1G3 ,202 ,4U5 ,8S6
DUMMY-MAT BLACK,1G3 ,209
AUDIO-6CD CHANGER,6SPEAKER,DUMMY-MAT BLACK,1G3 ,209
89343CBUZZER, CLEARANCE WARNING, NO.1
89348RETAINER, ULTRASONIC SENSOR, NO.1
main89348-33030-C0iACV40..24G..TH;GSV40..IDN,PHL,VN;ACV4#,GSV40..(20E,20G,24E,24G,24V,35V)..(IDN,PHL,TAIW,VN)200605-201207
DUMMY-MAT BLACK
89348ARETAINER, ULTRASONIC SENSOR, NO.2
main89348-33080-C0iACV40..24G..(PHL,TH,VN);ACV40,GSV40..(24V,35Q,35V)..(IDN,PHL,TAIW,TH,VN)200605-201207
DUMMY-MAT BLACK
8934833090RETAINER, ULTRASONIC SENSOR, NO.1
main89348-33090
9011906915
main90119-06915

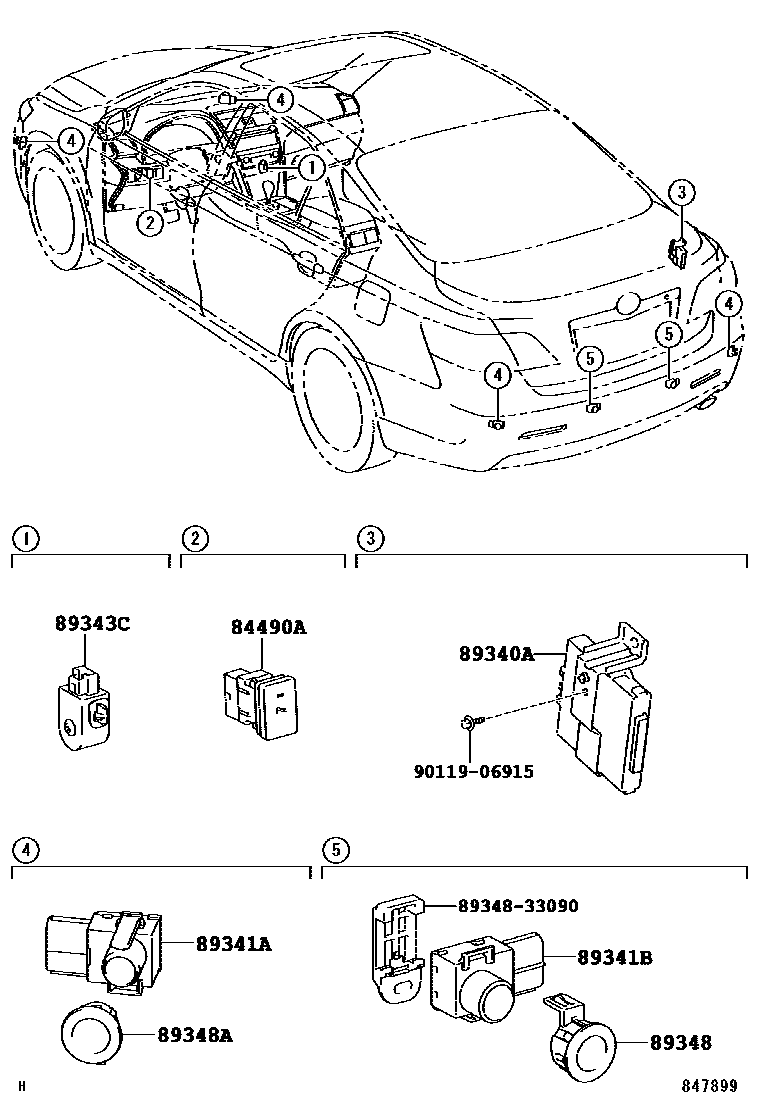

9 parts on this diagram · 2 diagrams in section
