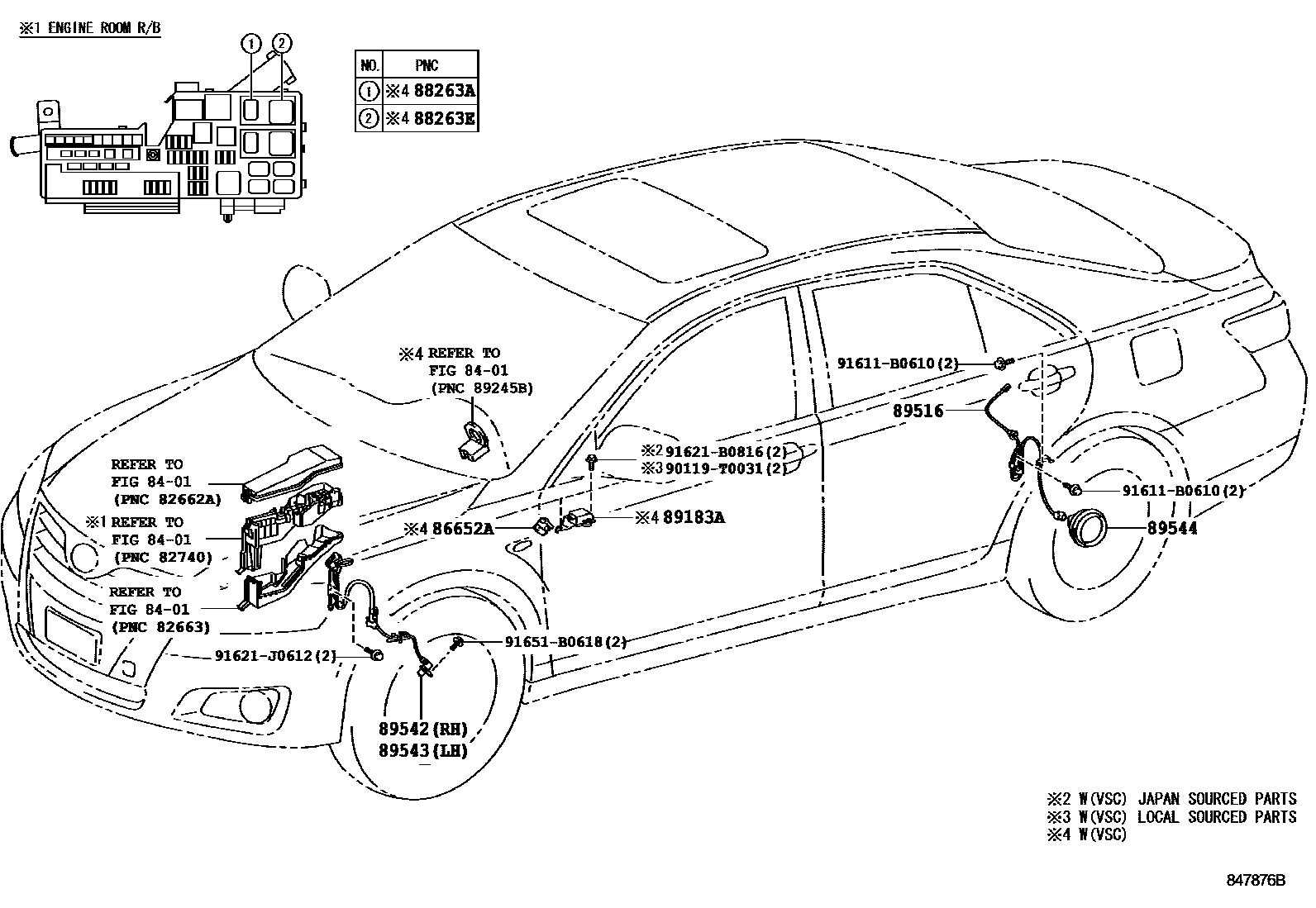

ABS & VSC

0001 1 0004 1 0007 1

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200909

main86652-48010iACV40..24E..TAIW200709-201008

TW 2.4E SE PACKAGE

88263ARELAY, SKID CONTROL

main88263-32070iACV41..20G..TAIW200605-200909

main88263-32070iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

88263ERELAY, SKID CONTROL NO.2

main88263-21010iACV41..20G..TAIW200605-200909

main88263-21010iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

89183ASENSOR, YAWRATE

main89180-33050iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

main89180-33050iACV41..20G..TAIW200605-200909

main89180-33060iAHV40200907

89516WIRE, SKID CONTROL SENSOR

main89516-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

RH

main89516-06080iACV40,GSV40..VN200608-200909

LH

main89516-06110iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

RH

main89516-06120iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

LH

main89516-33030iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

RH

main89516-33040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

LH

main89516-33050iACV4#,GSV40..TAIW200903

RH

main89516-33060iACV4#,GSV40..TAIW200903

LH

89542SENSOR, SPEED, FRONT RH

main89542-33090iACV4#,GSV40200605-201207

89543SENSOR, SPEED, FRONT LH

main89543-33080iACV4#,GSV40200605-200909

89544SENSOR, SKID CONTROL

main89544-48010iACV4#,GSV40200605-200909

90119T0031

main90119-T0031

91611B0610

main91611-B0610

91621B0816

main91621-B0816

91621J0612

main91621-J0612

91651B0618

main91651-B0618

13 parts on this diagram · 3 diagrams in section
