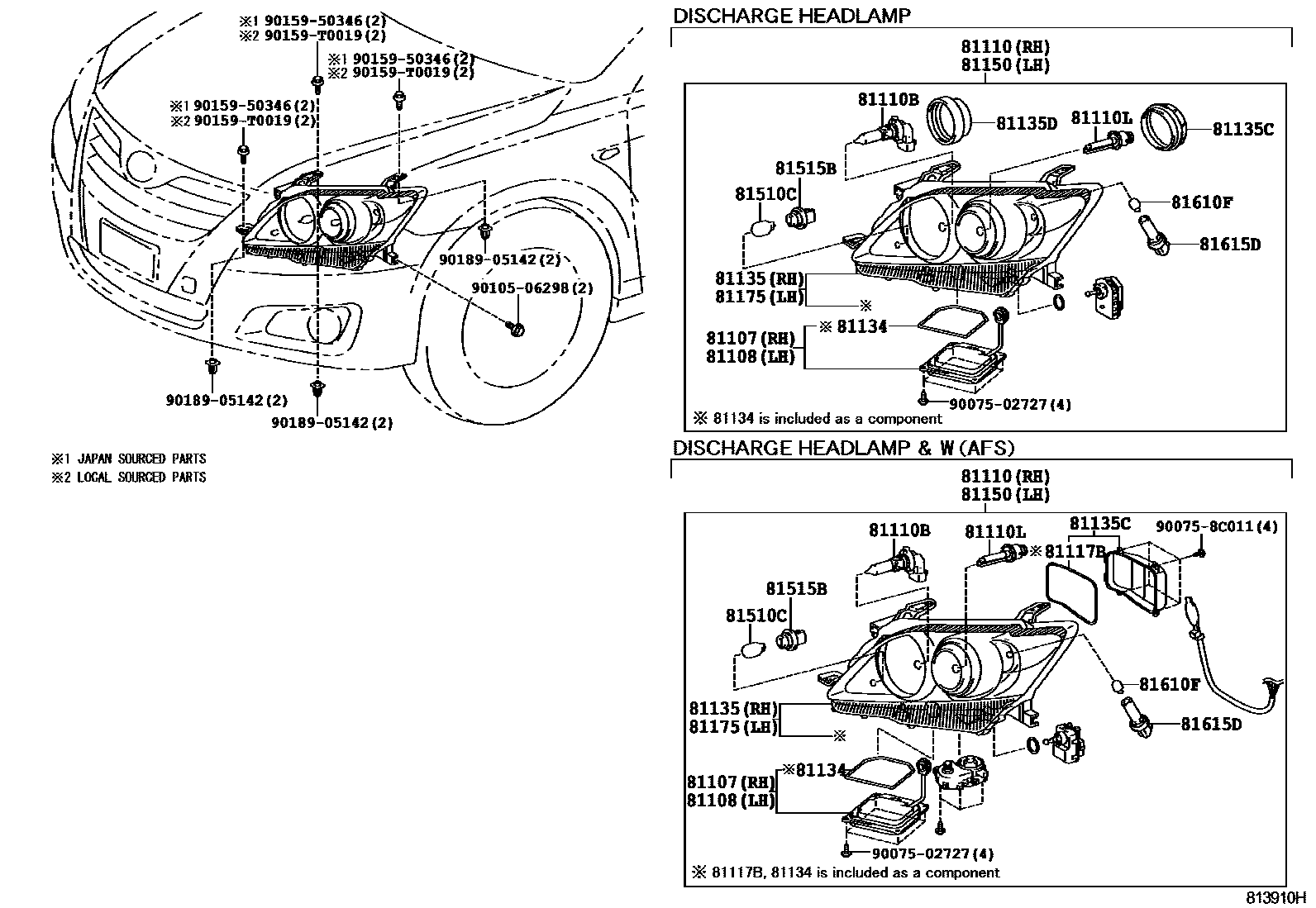

HEADLAMP

0001 1 0002 1 0004 1 0005 1

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-06231iACV40..24V..TH;GSV40..IDN,PHL,TH200608-201007

sub81107-06232

main81107-06232iAHV40201004

main81107-06560iACV4#..(20E,24E)..TAIW201006

main81107-06760iACV4#..(20G,24G,24V)..(MA,PHL,TH,VN)200907-201007

sub81107-06761

main81107-06761iACV4#..(20G,24G,24V)..(MA,PHL,TH,VN)201007

main81107-0D410iACV40,GSV40..(24G,35Q,35V)..TAIW201003

main81107-8C004iACV4#..(20E,24E)..TAIW200605-201006

sub81107-06560

main81107-8C005iACV40,GSV40..(24G,35Q,35V)..TAIW200605-201001

sub81107-0D410

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-06231iGSV40..VN200608-201007

sub81107-06232

main81107-06232iGSV40..IDN,PHL,TH,VN201004

main81107-06560iACV4#..(20E,24E)..TAIW201006

main81107-06760iACV4#..(20G,24G,24V)..(MA,PHL,TH,VN)200907-201007

sub81107-06761

main81107-06761iACV4#..(20G,24G,24V)..(MA,PHL,TH,VN)201007

main81107-0D410iACV40,GSV40..(24G,35Q,35V)..TAIW201003

main81107-8C004iACV40..VN200605-201006

sub81107-06560

main81107-8C005iACV40,GSV40..(24G,35Q,35V)..TAIW200605-201001

sub81107-0D410

81110HEADLAMP ASSY, RH

main81110-06220iACV4#..LHD200605-200703

sub81110-06221

main81110-06221iACV4#..(20E,24E)..TAIW200704-200909

main81110-06230iGSV40..VN200608-200909

main81110-06240iACV4#..20,24E200608-200703

sub81110-06241

main81110-06241iACV4#..(20,24E)..TH200704-200907

main81110-06250iACV40..24V..TH200608-200703

SINGAPORE OR BRUNEI SPEC

sub81110-06251

main81110-06251iACV40..24V..TH200704-200907

SINGAPORE OR BRUNEI SPEC

main81110-06270iACV40..IDN;ACV41..20E..MA200608-200703

sub81110-06271

main81110-06271iACV40..IDN;ACV41..20E..MA200704-200907

TH 2.0E PACKAGE

main81110-06280iGSV40..RHD;ACV40..24V..TH200608-200907

main81110-06490iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

main81110-06530iACV40..IDN;ACV41..20E..MA200907

main81110-06540iGSV40..RHD200907-201002

sub81110-06541

main81110-06541iGSV40..RHD201003

main81110-06550iACV4#..(20G,24G,24V)..(MA,TH)200907

main81110-06560iACV4#..(20E,24E)..TAIW200903-201005

sub81110-06561

main81110-06561iACV4#..(20E,24E)..TAIW201006

main81110-06570iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201002

sub81110-06571

main81110-06571iACV40,GSV40..(24G,35Q,35V)..TAIW201003

main81110-06600iAHV40200907-201003

sub81110-06601

main81110-06601iAHV40201004

main81110-06690iGSV40..PHL,VN200907-201002

sub81110-06691

main81110-06691iGSV40..PHL,VN201003

main81110-06760iACV40..PHL,VN200907

main81110-06120iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

main81110-06580iACV40..24E..TAIW200903-201005

TW 2.4E SE PACKAGE

sub81110-06581

main81110-06581iACV40..24E201006

TW 2.4E SE PACKAGE

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041iACV40..IDN,MA,PHL,VN;ACV4#..(20,20E,20G,24E,24G)..(MA,TAIW,TH)200605-200704

12V 65W

sub90981-13046

main90981-13046iGSV40..VN200605-201007

12V65W(SAE),60W(ECE)

81110LBULB, DISCHARGE HEADLAMP

main90981-20013iACV4#..(20E,24E)..TAIW;ACV41,GSV40..20G,35Q,35V;ACV40..(24G,24V)..(MA,PHL,TAIW,TH,VN)200605-200803

45V 35W

sub90981-20024

main90981-20021iACV4#..(20E,24E)..TAIW;ACV41,GSV40..20G,35Q,35V;ACV40..(24G,24V)..(MA,PHL,TAIW,TH,VN)200804-200902

45V 35W

sub90981-20024

main90981-20024iACV4#..(20E,24E)..TAIW;ACV41,GSV40..20G,35Q,35V;ACV40..(24G,24V)..(MA,PHL,TAIW,TH,VN)200902-200909

42V 35W

81117BGASKET

main81117-8C002iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200804

RH

main81117-8C003iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200804

LH

81134GASKET, HEADLAMP

main81117-8C001iACV41..20E..TAIW;ACV40..24V..(MA,PHL);ACV4#..(20G,24G)..(MA,PHL,TAIW,TH,VN)200605-200704

sub90075-68007

main81134-06231iGSV40..VN200608-200909

main90075-68007iACV41..20E..TAIW200605-201001

main90075-68007iACV40..24V..(MA,PHL);ACV4#..(20G,24G)..(MA,PHL,TH)200704-200907

SINGAPORE OR BRUNEI SPEC

81135UNIT ASSY, HEADLAMP, RH

main81130-06241iACV4#..(20,24E)..TH200608-200907

main81130-06271iACV40..IDN;ACV41..20E..MA200608-200907

main81130-06530iACV40..IDN;ACV41..20E..MA200907

main81145-06221iACV40..PHL200704-200909

main81145-06231iGSV40..VN200608-200909

main81145-06251iACV40..24V..TH200704-200907

SINGAPORE OR BRUNEI SPEC

main81145-06281iGSV40..RHD;ACV40..24V..TH200608-200907

main81145-06491iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

main81145-06540iGSV40..RHD200907-201003

sub81145-06541

main81145-06541iGSV40..RHD201003

main81145-06550iACV4#..(20G,24G,24V)..(MA,TH)200907

main81145-06560iACV4#..(20E,24E)..TAIW200903

main81145-06570iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201001

main81145-06600iAHV40200907-201004

main81145-06601iAHV40201004

main81145-06690iGSV40..PHL,VN200907-201003

sub81145-06691

main81145-06691iGSV40..PHL,VN201003

main81145-06760iACV40..PHL,VN200907

main81145-8C005iACV4#..LHD200605-200704

sub81145-06221

main81145-8C006iACV40..24V..TH200608-200704

SINGAPORE OR BRUNEI SPEC

main81145-06120iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

main81145-06580iACV40..24E..TAIW200903

TW 2.4E SE PACKAGE

81135CCOVER, HEADLAMP BACK, NO.1

main81135-06231iGSV40..VN200608-200909

RH

main81135-06560iACV4#..(20E,24E)..TAIW200903

main81135-06570iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201001

RH

main81135-06690iAHV40,GSV40..IDN,PHL,TH,VN200907

RH

main81135-8C005iACV40..24V..(MA,PHL);ACV4#..(20G,24G)..(MA,PHL,TH)200605-200909

main81139-06241iACV40..IDN;ACV4#..RHD..(20,20E,24E)200608-200907

main81139-06760iACV4#..(20G,24G,24V)..(MA,PHL,TH,VN)200907

main81139-8C003iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

RH

main81139-8C004iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

LH

main81175-06231iGSV40..VN200608-200909

LH

main81175-06460iAHV40,GSV40..IDN,PHL,TH,VN200907

LH

main81175-06570iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201001

LH

81135DCOVER, HEADLAMP BACK, NO.2

main81135-06760iACV4#..IDN,MA,PHL,TH,VN200907

main81135-13270iACV40..IDN;ACV4#..RHD..(20,20E,24E)200608-200907

main81135-8C006iACV40..VN200605-200909

main81175-06560iACV4#..(20E,24E)..TAIW200903

81150HEADLAMP ASSY, LH

main81150-06220iACV4#..LHD200605-200703

sub81150-06221

main81150-06221iACV40..VN200704-200909

main81150-06230iGSV40..VN200608-200909

main81150-06240iACV4#..20,24E200608-200703

sub81150-06241

main81150-06241iACV4#..(20,24E)..TH200704-200907

main81150-06250iACV40..24V..TH200608-200703

SINGAPORE OR BRUNEI SPEC

sub81150-06251

main81150-06251iACV40..24V..TH200704-200907

SINGAPORE OR BRUNEI SPEC

main81150-06270iACV40..IDN;ACV41..20E..MA200608-200703

sub81150-06271

main81150-06271iACV40..IDN;ACV41..20E..MA200704-200907

TH 2.0E PACKAGE

main81150-06280iGSV40..RHD;ACV40..24V..TH200608-200907

main81150-06490iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

main81150-06530iACV40..IDN;ACV41..20E..MA200907

main81150-06540iGSV40..RHD200907-201002

sub81150-06541

main81150-06541iGSV40..RHD201003

main81150-06550iACV4#..(20G,24G,24V)..(MA,TH)200907

main81150-06560iACV4#..(20E,24E)..TAIW200903-201005

sub81150-06561

main81150-06561iACV4#..(20E,24E)..TAIW201006

main81150-06570iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201002

sub81150-06571

main81150-06571iACV40,GSV40..(24G,35Q,35V)..TAIW201003

main81150-06600iAHV40200907-201003

sub81150-06601

main81150-06601iAHV40201004

main81150-06690iGSV40..PHL,VN200907-201002

sub81150-06691

main81150-06691iGSV40..PHL,VN201003

main81150-06760iACV40..PHL,VN200907

main81150-06120iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

main81150-06580iACV40..24E..TAIW200903-201005

TW 2.4E SE PACKAGE

sub81150-06581

main81150-06581iACV40..24E201006

TW 2.4E SE PACKAGE

81175UNIT ASSY, HEADLAMP, LH

main81170-06241iACV4#..(20,24E)..TH200608-200907

main81170-06271iACV40..IDN;ACV41..20E..MA200608-200907

main81170-06530iACV40..IDN;ACV41..20E..MA200907

main81185-06221iACV40..VN200704-200909

main81185-06231iGSV40..VN200608-200909

main81185-06251iACV40..24V..TH200704-200907

SINGAPORE OR BRUNEI SPEC

main81185-06281iGSV40..RHD;ACV40..24V..TH200608-200907

main81185-06491iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

main81185-06540iGSV40..RHD200907-201003

sub81185-06541

main81185-06541iGSV40..RHD201003

main81185-06550iACV4#..(20G,24G,24V)..(MA,TH)200907

main81185-06560iACV4#..(20E,24E)..TAIW200903

main81185-06570iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201001

main81185-06600iAHV40200907-201004

main81185-06601iAHV40201004

main81185-06690iGSV40..PHL,VN200907-201003

sub81185-06691

main81185-06691iGSV40..PHL,VN201003

main81185-06760iACV40..PHL,VN200907

main81185-8C005iACV4#..LHD200605-200704

sub81185-06221

main81185-8C006iACV40..24V..TH200608-200704

SINGAPORE OR BRUNEI SPEC

main81185-06120iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

main81185-06580iACV40..24E..TAIW200903

TW 2.4E SE PACKAGE

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iACV4#,GSV40..IDN,MA,PHL,TH200605-200909

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81073iACV40..IDN;ACV41..20E..MA200608-200909

main90075-60028iACV4#..(20E,24E)..TAIW200605-201001

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iACV41..20E..TAIW200605-200909

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90069-81072iACV40..24G..IDN;ACV40..(24E,24V)..(IDN,TH);ACV41,GSV40..(20,20E,35Q)..(IDN,MA,PHL,TH)200608-200909

main90075-60077iACV4#..(20E,24E)..TAIW201003

main90075-8C006iACV40..VN200605-201006

9007502727

main90075-02727

900758C011

main90075-8C011

9010506298

main90105-06298

9015950346

main90159-50346

90159T0019

main90159-T0019

9018905142

main90189-05142

22 parts on this diagram · 4 diagrams in section
