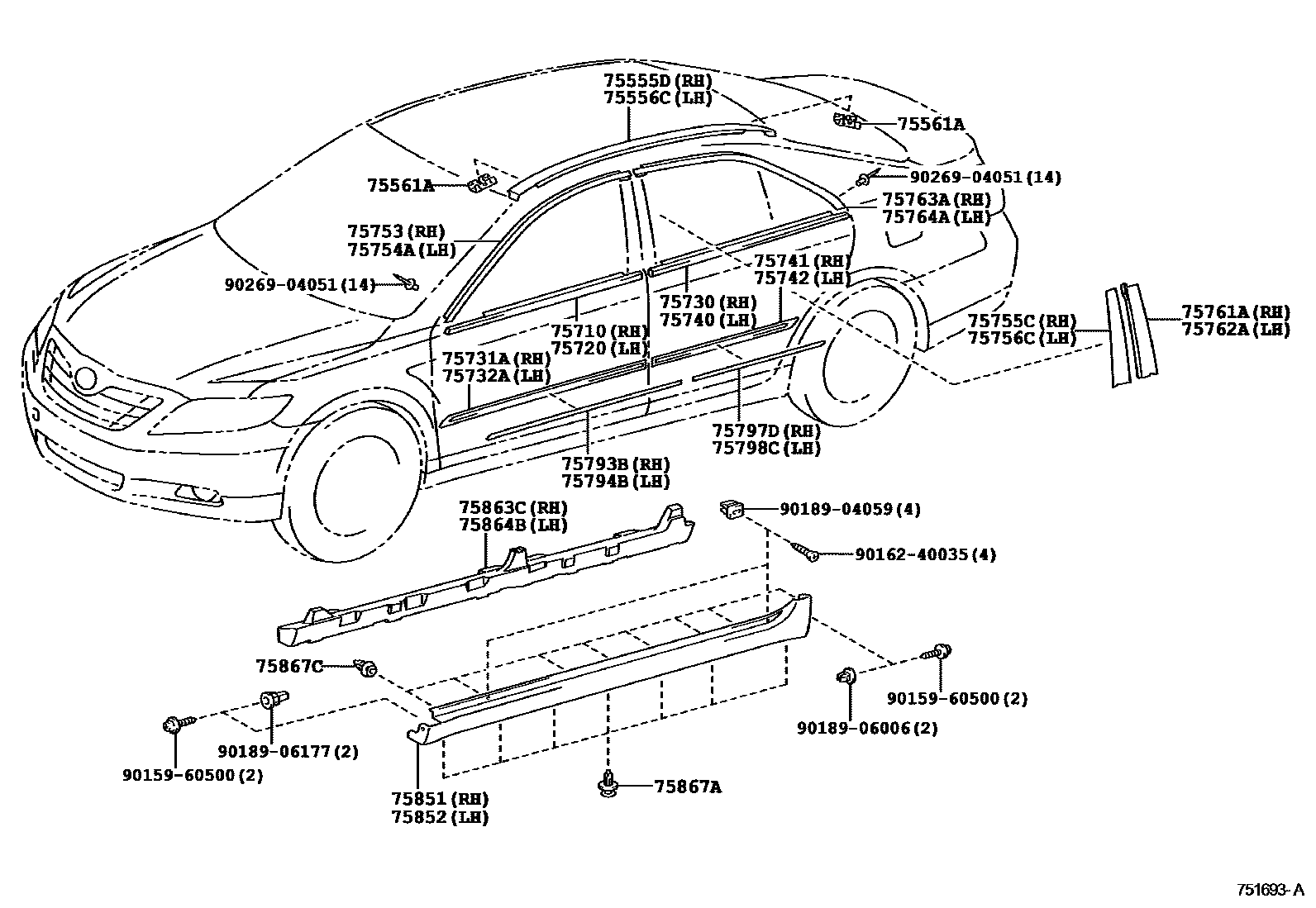

SIDE MOULDING

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-06040iACV41..20G..TAIW200605-200709

main75555-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-06040iACV41..20G..TAIW200605-200709

main75556-06050iACV40,GSV40..VN200608-200909

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-33030×4iACV41,GSV40..TAIW200709-200909

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-06110iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main75710-06120iACV41..20G..TAIW200605-200709

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-06110iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main75720-06120iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-06090iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main75730-06100iACV41..20G..TAIW200605-200709

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-06911iACV40..24G..IDN;ACV4#..RHD..(20E,24E)200608-200907

PAINT REQ.

main75731-06912iGSV40..VN200608-200909

PAINT REQ.

main75731-06915iACV4#..(20E,24E)..TAIW200605-200903

PAINT REQ.

main75731-06916iACV41..20G..TAIW200605-200709

PAINT REQ.

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-06911iACV4#..(20E,24G)..(IDN,MA,VN)200907-201207

main75732-06912iGSV40..VN200608-200909

main75732-06915iACV4#..(20E,24E)..TAIW200605-200903

main75732-06916iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-06090iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main75740-06100iACV41..20G..TAIW200605-200709

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-06909iACV4#..(20E,24G)..(IDN,MA,VN)200907-201207

PAINT REQ.

main75741-06910iACV40..24G..(PHL,TH);ACV4#,AHV40,GSV40..(20,20G,24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907-201207

PAINT REQ.

main75741-06913iACV4#..(20E,24E)..TAIW200903-201112

PAINT REQ.

main75741-06914iACV41..20G..TAIW200605-200709

PAINT REQ.

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-06909iACV4#..(20E,24G)..(IDN,MA,VN)200907-201207

PAINT REQ.

main75742-06910iACV40..24G..(PHL,TH);ACV4#,AHV40,GSV40..(20,20G,24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907-201207

PAINT REQ.

main75742-06913iACV4#..(20E,24E)..TAIW200903-201112

PAINT REQ.

main75742-06914iACV41..20G..TAIW200605-200709

PAINT REQ.

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main75753-06050iACV41..20G..TAIW200605-200709

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-06040iACV40,GSV40..VN200608-200909

main75754-06050iACV4#,GSV40..TAIW200903

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main75755-33030iACV40,GSV40..VN200608-200909

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main75756-33030iACV40,GSV40..VN200608-200909

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-06040iACV41..20G..TAIW200605-200709

NO PAINT REQ.

main75761-33030iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

NO PAINT REQ.

main75762-33030iACV40,GSV40..VN200608-200909

NO PAINT REQ.

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main75763-06060iACV41..20G..TAIW200605-200709

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-06050iACV40,GSV40..VN200608-200909

main75764-06060iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

75793BINSERT, FRONT DOOR OUTSIDE MOULDING, RH

main75793-06020iACV40..24G..(PHL,TH);ACV4#,AHV40,GSV40..(20,20G,24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907

main75793-06050iACV40,GSV40..(24G,35Q,35V)..TAIW200903

75794BINSERT, FRONT DOOR OUTSIDE MOULDING, LH

main75794-06020iACV40..24G..(PHL,TH);ACV4#,AHV40,GSV40..(20,20G,24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907

main75794-06050iACV41..20G..TAIW200605-200709

75797DINSERT, REAR DOOR OUTSIDE MOULDING, RH

main75797-06020iACV40..24G..(PHL,TH);ACV4#,GSV40..(20,20G,24V,35Q)..(IDN,MA,PHL,TH)200608-200907

main75797-06050iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

75798CINSERT, REAR DOOR OUTSIDE MOULDING, LH

main75798-06020iACV40..24G..(PHL,TH);ACV4#,GSV40..(20,20G,24V,35Q)..(IDN,MA,PHL,TH)200608-200907

main75798-06050iACV40,GSV40..(24G,35Q,35V)..TAIW200903

75851MOULDING, ROCKER PANEL, RH

main75851-06901iACV41..20G..TAIW200605-200709

main75851-06908iACV40,GSV40..VN200608-200909

75852MOULDING, ROCKER PANEL, LH

main75852-06901iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main75852-06908iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3

main75863-06080iACV4#,GSV40..TAIW200903-201112

main75863-06090iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4

main75864-06080iACV41..20G..TAIW200605-200709

main75864-06090iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907-201203

75867ACLIP, ROCKER PANEL MOULDING

main75867-30120×14iACV41..20G..TAIW200605-200709

75867CCLIP, ROCKER PANEL MOULDING

main75867-33030×16iACV41..20G..TAIW200605-200709

9015960500

main90159-60500

9016240035

main90162-40035

9018904059

main90189-04059

9018906006

main90189-06006

9018906177

main90189-06177

9026904051

main90269-04051

35 parts on this diagram · 1 diagram in section
