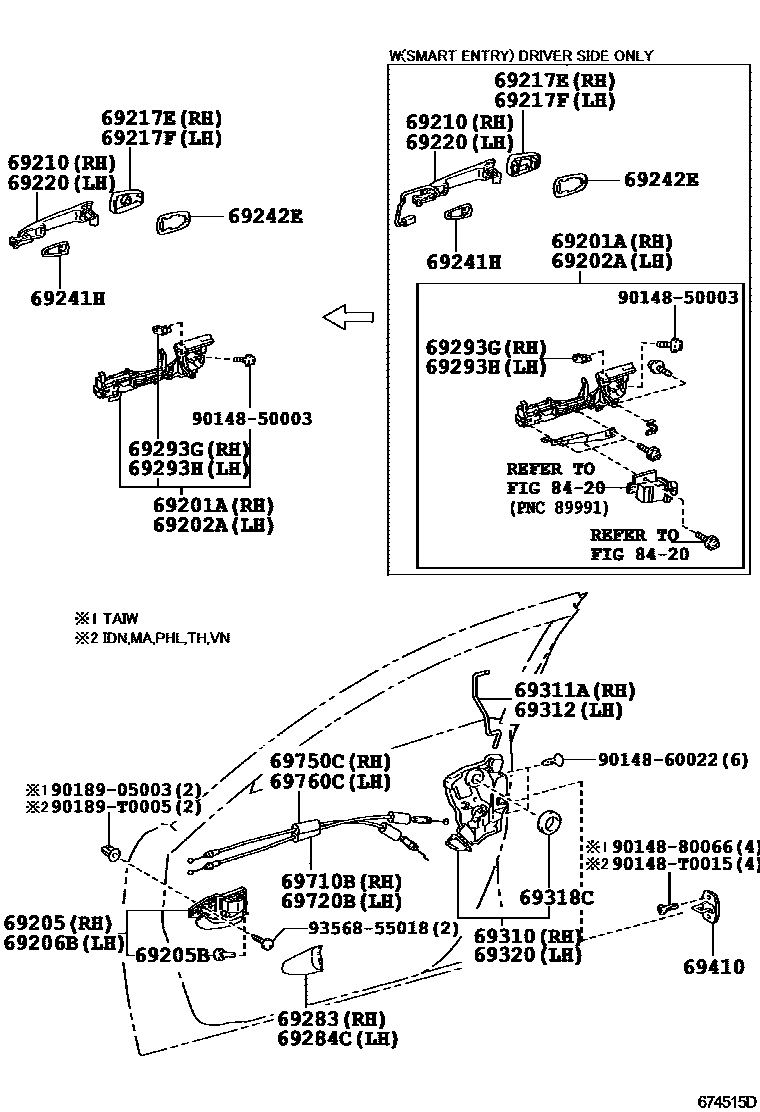

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-28010iACV40,GSV40..VN200605-200909

main69201-33040iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-28010iACV4#..(20E,24E)..TAIW200605-200909

main69202-33040iACV40..24G..TAIW;ACV40,GSV40..LHD..(24V,35Q,35V)200903

TW 2.4E SE PACKAGE

main69202-33040iGSV40..VN200605-200909

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-06060-C0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

BLACK,TRIM2#

main69205-06060-E0iACV4#,GSV40..(20G,24G,35Q,35V)..TAIW200605-200903

GREGE,TRIM4#

main69205-06070-C0iACV4#..(20E,24E)..TAIW200605-200903

BLACK,TRIM2#

main69205-06070-E0iACV4#..(20E,24E)..TAIW200605-200903

GREGE,TRIM4#

main69205-33090-C0iAHV40,GSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

sub69205-33090

main69205-33090-E0iACV40..24G..(PHL,TH);ACV4#..(20,20G,24V)..(IDN,MA,PHL,TH)200608-200907

GREGE,TRIM4#

sub69205-33090

main69205-42030-E0iACV41..TH200907

TH 2.0E PACKAGE,GREGE,TRIM4#

main69205-42030-E0iACV40..24G..(IDN,VN);ACV4#..RHD..(20E,24E)200608-200909

GREGE,TRIM4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200909

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-06060-C0iACV4#,GSV40..(20G,24G,35Q,35V)..TAIW200605-200903

BLACK,TRIM2#

main69206-06060-E0iACV4#,GSV40..(20G,24G,35Q,35V)..TAIW200605-200903

GREGE,TRIM4#

main69206-06070-C0iACV4#..(20E,24E)..TAIW200605-200903

BLACK,TRIM2#

main69206-06070-E0iACV4#..(20E,24E)..TAIW200605-200903

GREGE,TRIM4#

main69206-33100-C0iAHV40,GSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

sub69206-33100

main69206-33100-E0iACV40..24G..(PHL,TH);ACV4#..(20,20G,24V)..(IDN,MA,PHL,TH)200608-200907

GREGE,TRIM4#

sub69206-33100

main69206-42030-E0iACV4#..(20E,24G)..(IDN,MA,VN)200907

TH 2.0E PACKAGE,GREGE,TRIM4#

main69206-42030-E0iACV41..TH200608-200909

GREGE,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22240-A2iACV40,GSV40..(24G,35Q,35V)..TAIW200605-201112

SUPER WHITE 2,040

sub69210-22240

main69210-22240-A5iGSV40..PHL200608-201203

WHITE PEARL CS.,070

sub69210-22240

main69210-22240-B0iACV40,GSV40..(24G,35Q,35V)..TAIW200811-201112

SILVER ME.,1F7

sub69210-22240

main69210-22240-B3iGSV40..LHD;ACV40..24G..TAIW200605-201207

SILVER ME.,1D4

sub69210-22240

main69210-22240-B4iGSV40..PHL200608-201207

MEDIUM SILVER ME.,1F8

sub69210-22240

main69210-22240-B5iACV40,GSV40..(24G,35Q,35V)..TAIW200605-201207

GRAY ME.,1G3

sub69210-22240

main69210-22240-B7iGSV40..VN200611-200909

GRAY M.M.,1E3

sub69210-22240

main69210-22240-C1iGSV40..PHL,VN200608-201207

BLACK MC.,209

sub69210-22240

main69210-22240-C2iACV40,GSV40..(24G,35Q,35V)..TAIW200605-201112

BLACK,202

sub69210-22240

main69210-22240-E0iGSV40..PHL,TAIW;ACV40..24G..TAIW200605-201207

BEIGE ME.,4R0

sub69210-22240

main69210-22240-E2iGSV40..VN200611-200909

GRAYISH BROWN ME,4P9

sub69210-22240

main69210-22240-E5iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201112

DK.BROWN ME.,4U5

sub69210-22240

main69210-22240-G2iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

LT.GREEN ME.,6V1

sub69210-22240

main69210-22240-J0iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201112

DK.BLUE MC.,8S6

sub69210-22240

main69210-22240-J3iGSV40..PHL200608-200907

DK.BLUE MC.,8N8

sub69210-22240

main69210-30310-A3iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200608-201203

WHITE PEARL CS.,070

sub69210-30310

sub69210-30290

main69210-30310-B3iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200608-201203

SILVER ME.,1D4

sub69210-30310

sub69210-30290

main69210-30310-B4iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200608-201203

MEDIUM SILVER ME.,1F8

sub69210-30310

sub69210-30290

main69210-30310-B5iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200907-201203

GRAY ME.,1G3

sub69210-30310

sub69210-30290

main69210-30310-C1iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200608-201203

BLACK MC.,209

sub69210-30310

sub69210-30290

main69210-30310-E0iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200608-201203

BEIGE ME.,4R0

sub69210-30310

sub69210-30290

main69210-30310-J1iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

DK.BLUE MC.,8N8

sub69210-30310

sub69210-30290

main69210-30310-J5iAHV40201010-201203

LT.BLUE M.M.,8S7

sub69210-30310

sub69210-30290

main69210-30310-R0iAHV40200907-201203

LIGHT BLUE MICA METALLIC,8U8

sub69210-30310

sub69210-30290

main69210-58010iACV4#..(20,20G,24G)..(MA,PHL,TH)200605-201203

PLATED

main69211-28906iACV4#..20E,24E;ACV40..24G..(IDN,VN)200605-201207

PAINT REQ.

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-30040iACV40..PHL;ACV41..20G..TAIW200605-200907

*CR

main69217-58010iACV40..MA;ACV4#..(20,20G,24G)..(MA,TH)200608-200907

*CR

main69217-60010iACV40..VN;ACV4#..(20E,24E)..TAIW200605-200909

main69217-60030iACV41..TH200907

TH 2.0E PACKAGE

main69217-60030iACV40..24G..IDN;ACV4#..RHD..(20E,24E)200608-200907

main69250-30010-A7iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

WHITE PEARL CS.,070

sub69250-30010

main69250-30010-B5iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

SILVER ME.,1D4

sub69250-30010

main69250-30010-B6iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

MEDIUM SILVER ME.,1F8

sub69250-30010

main69250-30010-B7iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200907

GRAY ME.,1G3

sub69250-30010

main69250-30010-C2iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

BLACK MC.,209

sub69250-30010

main69250-30010-E0iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

BEIGE ME.,4R0

sub69250-30010

main69250-30010-J3iAHV40201010

LT.BLUE ME.,8S7

sub69250-30010

main69250-30010-J5iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

DK.BLUE MC.,8N8

sub69250-30010

main69250-30010-R5iAHV40200907

LIGHT BLUE MICA METALLIC,8U8

sub69250-30010

main69250-30020-A0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

SUPER WHITE 2,040

sub69250-30020

main69250-30020-A6iGSV40..PHL200608-200907

WHITE PEARL CS.,070

sub69250-30020

main69250-30020-B2iACV40,GSV40..(24G,35Q,35V)..TAIW200811-200903

SILVER ME.,1F7

sub69250-30020

main69250-30020-B4iGSV40..LHD;ACV40..24G..TAIW200605-200909

SILVER ME.,1D4

sub69250-30020

main69250-30020-B5iGSV40..PHL200608-200907

MEDIUM SILVER ME.,1F8

sub69250-30020

main69250-30020-B6iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

GRAY ME.,1G3

sub69250-30020

main69250-30020-C0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

BLACK,202

sub69250-30020

main69250-30020-C2iACV40,GSV40..(24V,35Q)..(PHL,VN)200608-200909

BLACK MC.,209

sub69250-30020

main69250-30020-E0iGSV40..PHL,TAIW;ACV40..24G..TAIW200605-200907

BEIGE ME.,4R0

sub69250-30020

main69250-30020-E2iGSV40..VN200611-200909

GRAYISH BROWN ME,4P9

sub69250-30020

main69250-30020-E6iACV40,GSV40..(24G,35Q,35V)..TAIW200903

DK.BROWN ME.,4U5

sub69250-30020

main69250-30020-G3iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

LT.GREEN ME.,6V1

sub69250-30020

main69250-30020-J2iACV40,GSV40..(24G,35Q,35V)..TAIW200903

DK.BLUE MC.,8S6

sub69250-30020

main69250-30020-J4iGSV40..PHL200608-200907

DK.BLUE MC.,8N8

sub69250-30020

main69250-30020-P0iGSV40..VN200611-200909

GRAY M.M.,1E3

sub69250-30020

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-30040iACV4#..(20,20G,24G)..(MA,TH)200608-200907

*CR

main69217-58010iACV40..PHL;ACV41..20G..TAIW200605-200907

*CR

main69217-60010iACV4#..(20E,24G)..(IDN,MA)200907

TH 2.0E PACKAGE

main69217-60010iACV40..24G..IDN;ACV4#..RHD..(20E,24E)200608-200907

main69217-60030iACV40..VN;ACV4#..(20E,24E)..TAIW200605-200909

main69250-30010-A0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

SUPER WHITE 2,040

sub69250-30010

main69250-30010-A7iGSV40..PHL200608-200907

WHITE PEARL CS.,070

sub69250-30010

main69250-30010-B2iACV40,GSV40..(24G,35Q,35V)..TAIW200811-200903

SILVER ME.,1F7

sub69250-30010

main69250-30010-B5iGSV40..LHD;ACV40..24G..TAIW200605-200909

SILVER ME.,1D4

sub69250-30010

main69250-30010-B6iACV40,GSV40..(24V,35Q)..(PHL,VN)200608-200907

MEDIUM SILVER ME.,1F8

sub69250-30010

main69250-30010-B7iACV40..24G..TAIW;ACV40,GSV40..LHD..(24V,35Q,35V)200605-200903

GRAY ME.,1G3

sub69250-30010

main69250-30010-C0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

BLACK,202

sub69250-30010

main69250-30010-C2iGSV40..PHL,VN200608-200909

BLACK MC.,209

sub69250-30010

main69250-30010-E0iGSV40..PHL,TAIW;ACV40..24G..TAIW200605-200907

BEIGE ME.,4R0

sub69250-30010

main69250-30010-E2iGSV40..VN200611-200909

GRAYISH BROWN ME,4P9

sub69250-30010

main69250-30010-E6iACV40,GSV40..(24G,35Q,35V)..TAIW200903

DK.BROWN ME.,4U5

sub69250-30010

main69250-30010-G3iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

LT.GREEN ME.,6V1

sub69250-30010

main69250-30010-J2iACV40,GSV40..(24G,35Q,35V)..TAIW200903

DK.BLUE MC.,8S6

sub69250-30010

main69250-30010-J5iGSV40..PHL200608-200907

DK.BLUE MC.,8N8

sub69250-30010

main69250-30010-P1iGSV40..VN200611-200909

GRAY M.M.,1E3

sub69250-30010

main69250-30020-A6iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

WHITE PEARL CS.,070

sub69250-30020

main69250-30020-B4iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

SILVER ME.,1D4

sub69250-30020

main69250-30020-B5iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200608-200907

MEDIUM SILVER ME.,1F8

sub69250-30020

main69250-30020-B6iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200907

GRAY ME.,1G3

sub69250-30020

main69250-30020-C2iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200608-200907

BLACK MC.,209

sub69250-30020

main69250-30020-E0iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

BEIGE ME.,4R0

sub69250-30020

main69250-30020-J3iAHV40201010

LT.BLUE ME.,8S7

sub69250-30020

main69250-30020-J4iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

DK.BLUE MC.,8N8

sub69250-30020

main69250-30020-R4iAHV40200907

LIGHT BLUE MICA METALLIC,8U8

sub69250-30020

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-22240-A5iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-201203

WHITE PEARL CS.,070

sub69210-22240

main69210-22240-B3iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-201203

SILVER ME.,1D4

sub69210-22240

main69210-22240-B4iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200608-201203

MEDIUM SILVER ME.,1F8

sub69210-22240

main69210-22240-B5iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200907-201203

GRAY ME.,1G3

sub69210-22240

main69210-22240-C1iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-201203

BLACK MC.,209

sub69210-22240

main69210-22240-E0iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200608-201203

BEIGE ME.,4R0

sub69210-22240

main69210-22240-J1iAHV40201010-201203

LT.BLUE M.M.,8S7

sub69210-22240

main69210-22240-J3iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

DK.BLUE MC.,8N8

sub69210-22240

main69210-22240-R3iAHV40200907-201203

LIGHT BLUE MICA METALLIC,8U8

sub69210-22240

main69210-30310-A0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-201112

SUPER WHITE 2,040

sub69210-30310

sub69210-30290

main69210-30310-A3iGSV40..PHL200608-201203

WHITE PEARL CS.,070

sub69210-30310

sub69210-30290

main69210-30310-B1iACV40,GSV40..(24G,35Q,35V)..TAIW200811-201112

SILVER ME.,1F7

sub69210-30310

sub69210-30290

main69210-30310-B3iGSV40..LHD;ACV40..24G..TAIW200605-201207

SILVER ME.,1D4

sub69210-30310

sub69210-30290

main69210-30310-B4iGSV40..PHL200608-201207

MEDIUM SILVER ME.,1F8

sub69210-30310

sub69210-30290

main69210-30310-B5iACV40,GSV40..(24G,35Q,35V)..TAIW200605-201207

GRAY ME.,1G3

sub69210-30310

sub69210-30290

main69210-30310-B7iGSV40..VN200611-200909

GRAY M.M.,1E3

sub69210-30310

sub69210-30290

main69210-30310-C0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-201112

BLACK,202

sub69210-30310

sub69210-30290

main69210-30310-C1iACV40,GSV40..(24V,35Q)..(PHL,VN)200608-201207

BLACK MC.,209

sub69210-30310

sub69210-30290

main69210-30310-E0iGSV40..PHL,TAIW;ACV40..24G..TAIW200605-201207

BEIGE ME.,4R0

sub69210-30310

sub69210-30290

main69210-30310-E2iGSV40..VN200611-200909

GRAYISH BROWN ME,4P9

sub69210-30310

sub69210-30290

main69210-30310-E5iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201112

DK.BROWN ME.,4U5

sub69210-30310

sub69210-30290

main69210-30310-G2iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

LT.GREEN ME.,6V1

sub69210-30310

sub69210-30290

main69210-30310-J0iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201112

DK.BLUE MC.,8S6

sub69210-30310

sub69210-30290

main69210-30310-J1iGSV40..PHL200608-200907

DK.BLUE MC.,8N8

sub69210-30310

sub69210-30290

main69210-58010iACV41..20,20G;ACV40..24G..(PHL,TH);ACV40..24V..(MA,PHL)200605-201203

PLATED

main69211-28906iACV4#..20E,24E;ACV40..24G..(IDN,VN)200605-201207

PAINT REQ.

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-28060iACV41..20G..TAIW200605-200909

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-33020iGSV40..TAIW,VN;ACV40..24G..TAIW200605-200909

main69242-AC031iGSV40..RHD;ACV4#..IDN,MA,PHL,TH200701-200907

sub69242-04010

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-06040-C0iACV4#,GSV40..TAIW200605-200903

BLACK,TRIM2#

main69283-06040-E0iACV4#,GSV40..TAIW200605-200903

GREGE,TRIM4#

main69283-33040-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

sub69283-33040

main69283-33040-E0iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

GREGE,TRIM4#

sub69283-33040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-06040-C0iACV4#,GSV40..TAIW200605-200903

BLACK,TRIM2#

main69284-06040-E0iACV4#,GSV40..TAIW200605-200903

GREGE,TRIM4#

main69284-33040-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

sub69284-33040

main69284-33040-E0iACV4#,AHV40..IDN,MA,PHL,TH,VN200608-200909

GREGE,TRIM4#

sub69284-33040

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200909

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iACV40,GSV40..VN200605-200909

69310LOCK ASSY, FRONT DOOR, RH

main69030-06110iACV4#,GSV40..RHD200608-200907

main69030-06120iACV40,GSV40..VN200608-200909

main69030-06130iACV4#,GSV40..TAIW200605-200903

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-06060iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main69311-06070iACV41..20G..TAIW200605-200903

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-06060iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main69312-06070iACV4#,GSV40..TAIW200605-200903

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iACV40,GSV40..VN200605-200909

69320LOCK ASSY, FRONT DOOR, LH

main69040-06100iACV4#,AHV40,GSV40..RHD200608-200907

main69040-06110iACV40,GSV40..PHL200608-200909

main69040-06120iACV41..20G..TAIW200605-200903

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-06010iACV4#,GSV40..TAIW200605-200903

main69410-0K010iACV40,GSV40..VN200608-200909

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-06060iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main69710-06070iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-06060iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main69710-06070iACV41..20G..TAIW200605-200903

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-06050iACV40,GSV40..VN200608-200909

main69750-06060iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-06050iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

main69750-06060iACV4#,GSV40..TAIW200605-200903

8420

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

90148T0015

main90148-T0015

9018905003

main90189-05003

90189T0005

main90189-T0005

9356855018

main93568-55018

33 parts on this diagram · 1 diagram in section
