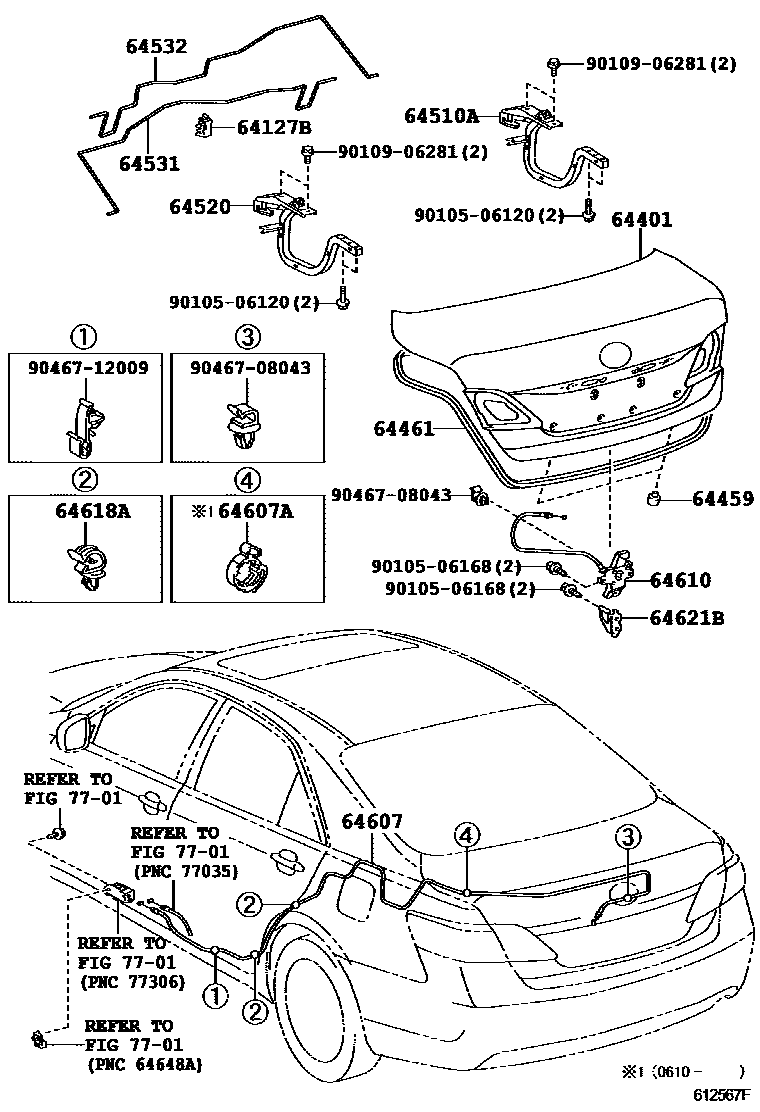

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-06040iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

main64127-33060iACV4#,GSV40..TAIW200605-200903

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-06300iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

main64401-06320iACV4#..(20E,20G,24E)..TAIW200605-200903

main64401-06330iGSV40..IDN,PHL,TH,VN;ACV40..24V..(IDN,TH)200608-200909

main64401-06350iACV4#..(20,20E,20G,24G)..(IDN,MA,PHL,TH,VN)200907

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×2iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-06070iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main64461-06080iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-06040iACV4#,GSV40..TAIW200605-200903

main64510-06050iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-06040iACV4#,GSV40..TAIW200605-200903

main64510-06050iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-06100iACV4#,GSV40..TAIW200903

main64531-06110iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-06120iACV4#,GSV40..TAIW200903

main64532-06130iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-06080iACV4#,GSV40..RHD200907-200912

main64607-06081iACV4#,GSV40..RHD201001-201005

main64607-06082iACV4#,GSV40..RHD201008

main64607-06100iACV4#,GSV40..TAIW200903-200912

main64607-06101iACV4#,GSV40..TAIW201001-201005

main64607-06102iACV4#,GSV40..TAIW201009

main64607-06110iACV40,GSV40..PHL,VN200907-200912

main64607-06111iACV40,GSV40..PHL,VN201001-201003

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main82711-35060iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200610-200903

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-06020iACV41..20G..TAIW200605-200709

64618ACLAMP, LUGGAGE LOCK CONTROL CABLE

main82711-1E260×2iACV41..20G..TAIW200605-200709

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06050iACV41..20G..TAIW200605-200709

7701

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9046708043

main90467-08043

9046712009

main90467-12009

19 parts on this diagram · 2 diagrams in section
