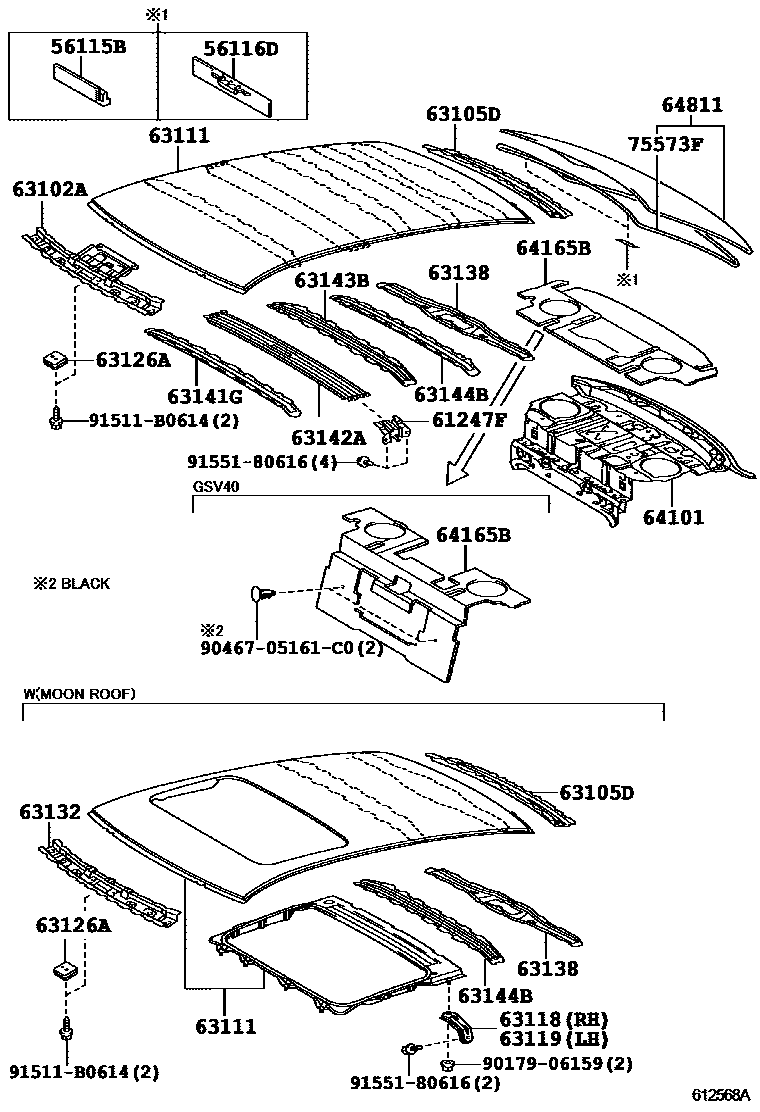

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
(J)
(L)
61247FREINFORCEMENT, ROOF SIDE RAIL, INNER
63102APANEL SUB-ASSY, WINDSHIELD HEADER
MOON ROOF-WITH
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
sub63111-33230
TW 2.4E SE PACKAGE
TW 2.4G P PACKAGE
TW 2.4G HI PACKAGE
TW 3.5V HI PACKAGE
63118SUPPORT, ROOF PANEL, RH
TW 3.5V HI PACKAGE
TW 2.4E SE PACKAGE
TW 2.4G P PACKAGE
TW 2.4G HI PACKAGE
MOON ROOF-WITH
63119SUPPORT, ROOF PANEL, LH
TW 3.5V HI PACKAGE
TW 2.4E SE PACKAGE
TW 2.4G P PACKAGE
TW 2.4G HI PACKAGE
MOON ROOF-WITH
63126ADAMPER, WINDSHIELD HEADER PANEL
63132PANEL, WINDSHIELD HEADER, INNER
TW 2.4G P PACKAGE
TW 3.5V HI PACKAGE
TW 2.4E SE PACKAGE
TW 2.4G HI PACKAGE
63138BRACKET, DOME LAMP, NO.2
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
MOON ROOF-WITH
63142AREINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144BREINFORCEMENT, ROOF PANEL, NO.4
TW 2.4G P PACKAGE
TW 3.5V HI PACKAGE
TW 2.4E SE PACKAGE
TW 2.4G HI PACKAGE
MOON ROOF-WITH
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
SUN SHADE-WITHOUT
TW 2.4G P PACKAGE
64811GLASS, BACK WINDOW
*EHT,T=3.5,GREEN
*EHTT,T=3.5,GREEN
75573FMOULDING, BACK WINDOW, OUTSIDE
9017906159
main90179-06159
9046705161C0
main90467-05161C0
91511B0614
main91511-B0614
9155180616
main91551-80616
24 parts on this diagram · 3 diagrams in section
