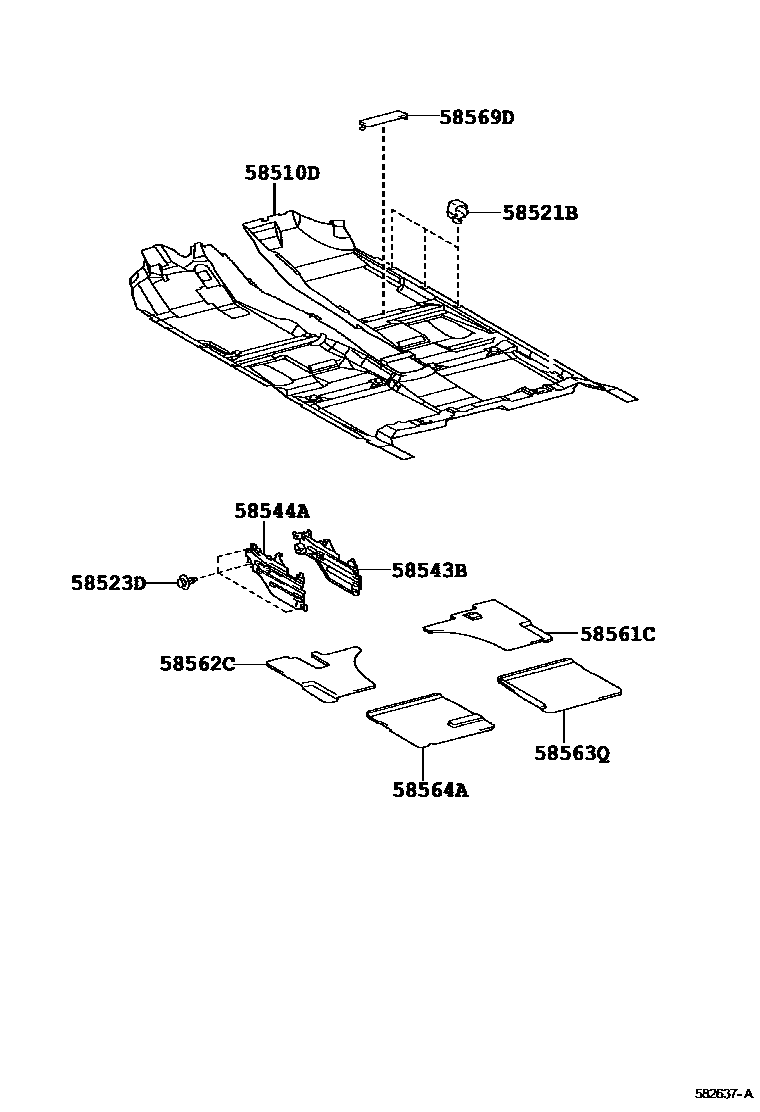

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-06270-C1iGSV40..PHL,VN200608-200909

BLACK,TRIM2#

sub58510-06270

main58510-06270-E1iACV40..PHL,VN200608-200909

GREGE,TRIM4#

sub58510-06270

main58510-06290-C1iACV41,GSV40..TAIW200605-200702

BLACK,TRIM2#

sub58510-06291

main58510-06290-E1iACV41,GSV40..TAIW200605-200702

GREGE,TRIM4#

sub58510-06291

main58510-06291iACV41..20G..TAIW200703-200709

main58510-06291-C1iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200703-200903

BLACK,TRIM2#

main58510-06291-E1iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200703-200903

GREGE,TRIM4#

main58510-06300-C1iGSV40..RHD200608-200907

BLACK,TRIM2#

main58510-06300-E1iACV4#,AHV40..RHD200608-200907

GREGE,TRIM4#

main58510-06450-C0iACV4#,GSV40..TAIW200903-201010

BLACK,TRIM2#

sub58510-06451

main58510-06450-E0iACV4#,GSV40..TAIW200903-201010

GREGE,TRIM4#

sub58510-06451

main58510-06451-C0iACV4#,GSV40..TAIW201011

BLACK,TRIM2#

main58510-06451-E0iACV4#,GSV40..TAIW201011

GREGE,TRIM4#

main58510-06460-C0iGSV40..PHL,VN200907-201102

BLACK,TRIM2#

sub58510-06461

main58510-06460-E0iACV40..PHL,VN200907-201102

GREGE,TRIM4#

sub58510-06461

main58510-06461-C0iGSV40..PHL,VN201103

BLACK,TRIM2#

main58510-06461-E0iACV40..PHL,VN201103

GREGE,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main58521-33040iACV40,GSV40..VN¥900200608-200909

58523DCLIP(FOR FLOOR CARPET SET BRACKET)

main90467-07076-C0iACV4#,GSV40200605-200909

BLACK

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

58543BBRACKET, FLOOR CARPET, RH

main58543-06030iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

main58543-06050iACV4#,GSV40..TAIW200605-200903

58544ABRACKET, FLOOR CARPET, LH

main58544-06030iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

main58544-06050iACV4#,GSV40..TAIW200605-200903

58561CSILENCER, FRONT FLOOR, NO.1

main58561-06050iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

main58561-06070iACV4#,GSV40..TAIW200605-200903

58562CSILENCER, FRONT FLOOR, NO.2

main58562-06050iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

main58562-06070iACV4#,GSV40..TAIW200605-200903

58563QSILENCER, FRONT FLOOR, NO.3

main58563-06040iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

main58563-06060iACV4#,GSV40..TAIW200605-200903

58564ASILENCER, FRONT FLOOR, NO.4

main58564-06040iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

main58564-06060iACV4#,GSV40..TAIW200605-200903

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-44010-C0iGSV40;ACV4#..TAIW200605-200909

BLACK,TRIM2#

sub58569-44010¥2,630

main58569-44010-E1iACV40,GSV40..(24E,35Q,35V)..TAIW;ACV4#,AHV40..20,20E,20G,24G,24V,HBD200605-200909

GREGE,TRIM4#

sub58569-44010¥2,630

10 parts on this diagram · 1 diagram in section
