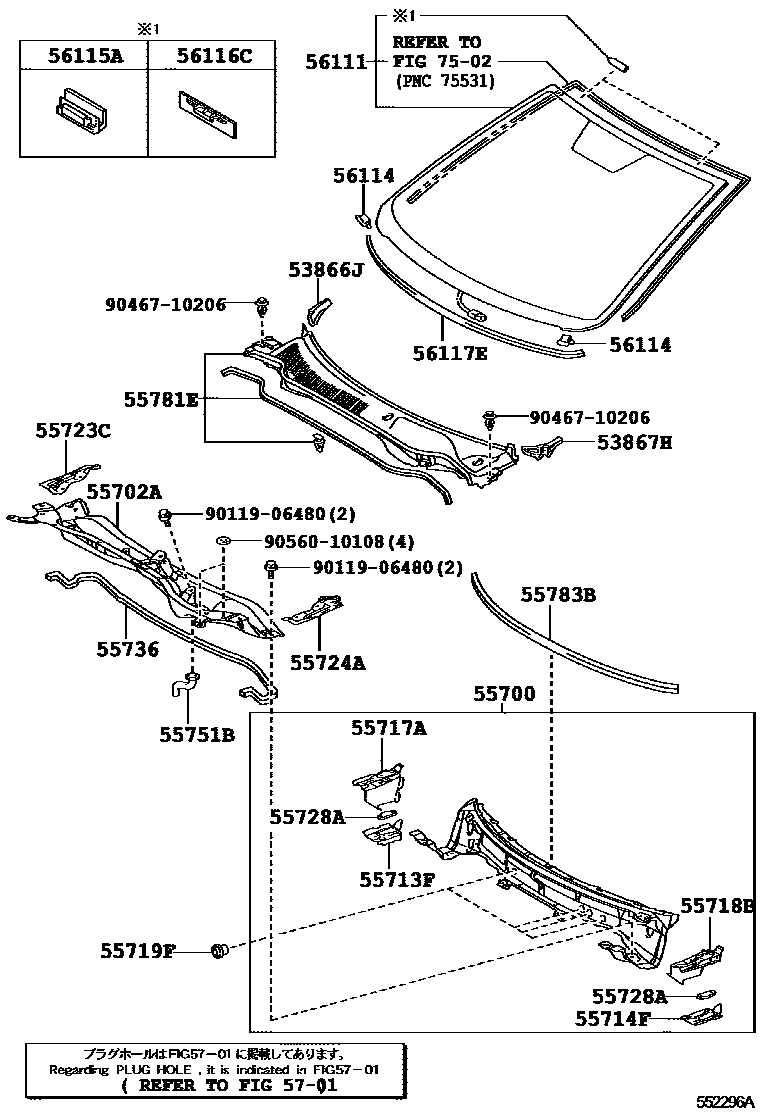

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-06030iACV41..20G..TAIW200605-200903

main53866-33060iACV40,GSV40..VN¥940200608-200909

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-06030iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main53867-33060iACV40,GSV40..VN¥940200608-200909

55700PANEL ASSY, FRONT

main55701-06130iACV4#,GSV40..TAIW200605-200903

main55701-06140iACV4#,GSV40..RHD200608-200907

main55701-06150iACV40,GSV40..PHL,VN200608-200909

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-06020iACV41..20G..TAIW200605-200903

main55702-06030iACV40,GSV40..PHL200608-200909

main55702-06040iACV4#,GSV40..RHD200608-200805

main55702-06041iACV4#,GSV40..RHD200806-200907

main55702-06050iAHV40200907

55713FREINFORCEMENT, COWL TOP SIDE, RH

main55713-06060iACV41..20G..TAIW200605-200903

main55713-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

55714FREINFORCEMENT, COWL TOP SIDE, LH

main55714-06060iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main55714-06070iACV40,GSV40..VN200608-200909

55717APANEL, COWL TOP SIDE, INNER RH

main55717-06070iACV41..20G..TAIW200605-200903

main55717-06080iACV40,GSV40..VN200608-200909

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-06070iACV4#,GSV40..TAIW200605-200903

main55718-06080iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

55719FPACKING, FRONT LOWER PANEL

main55719-06030iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main55719-06040iACV40,GSV40..PHL200608-200909

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-06060iACV4#,GSV40..TAIW200605-200903

main55723-06070iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-06070iACV4#,GSV40..TAIW200605-200903

main55724-06080iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

55728AREINFORCEMENT, HOOD STOPPER

main55728-06040iACV4#,GSV40..TAIW200605-200903

main55728-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

55736SEAL, WATER GUARD PLATE

main55736-06020iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main55736-06030iACV4#,GSV40..RHD200608-200609

sub55736-06080

main55736-06080iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-06020iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main55751-06030iACV4#,AHV40,GSV40..RHD200608-200907

main55751-33010iACV40,GSV40..PHL200608-200909

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06090iACV41..20G..TAIW200605-200903

main55708-06100iACV4#,GSV40..RHD200608-200907

main55708-33100iACV40,GSV40..PHL200608-200909

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main55783-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

56111GLASS, WINDSHIELD

main56101-06190iACV4#,GSV40..(20E,24E,24G,35V)..TAIW200605-200908

*LAM,T=4.76,GREEN

main56101-06191iACV4#,GSV40..(20E,24E,24G,35V)..TAIW200909

*LAM,T=4.76,GREEN

main56101-06200iGSV40..35Q..TAIW200605-200908

*LAM,T=4.76,GREEN

main56101-06201iGSV40..35Q..TAIW200909

*LAM,T=4.76,GREEN

main56101-06909iACV40..24V..PHL;ACV40..(24E,24G)..(PHL,TH)200608-200808

*LAM,T=4.76,GREEN

sub56101-06917

main56101-06910iACV4#..MA,VN;ACV40..24G..IDN200608-200808

*HSEAL,T=4.76,GREEN

sub56101-06920

main56101-06911iACV40..24V..IDN200608-200808

*HSEAL,T=4.76,GREEN

sub56101-06922

main56101-06912iACV40,GSV40..(24V,35Q)..TH200608-200808

*LAM,T=4.76,GREEN

sub56101-06919

main56101-06913iACV41..TH200608-200808

*LAM,T=4.76,GREEN

sub56101-06918

main56101-06914iGSV40..PHL200608-200808

*LAM,T=4.76,GREEN

sub56101-06921

main56101-06915iGSV40..VN200611-200808

*HSEAL,T=4.76,GREEN

sub56101-06924

main56101-06916iGSV40..IDN200608-200808

*HSEAL,T=4.76,GREEN

sub56101-06923

main56101-06917iACV40..PHL200808-200911

*LAM,T=4.76,GREEN

main56101-06917iACV40..24V..PHL;ACV40..(24E,24G)..(PHL,TH)200808-200911

*LAM,T=4.76,GREEN,TH 2.0E PACKAGE

main56101-06918iACV41..TH200808-200911

*LAM,T=4.76,GREEN

main56101-06919iACV40,GSV40..(24V,35Q)..TH200808-200911

*LAM,T=4.76,GREEN

main56101-06920iACV40..VN200808-200911

*HSEAL,T=4.76,GREEN

main56101-06921iGSV40..PHL200808-200911

*LAM,T=4.76,GREEN

main56101-06922iACV40..24V..IDN200808-200911

*HSEAL,T=4.76,GREEN

main56101-06923iGSV40..IDN200808-200911

*LAM,T=4.76,GREEN

main56101-06924iGSV40..VN200808-200911

*HSEAL,T=4.76,GREEN

main56101-06925iAHV40200907-200911

*LAM,T=4.76,GREEN

sub56101-06934

main56101-06934iAHV40200911

*LAM,T=4.76,GREEN

sub56101-06992

main56101-06935iACV40..PHL200911

*LAM,T=4.76,GREEN,TH 2.0E PACKAGE

sub56101-06989

main56101-06935iACV41..TH200911

*LAM,T=4.76,GREEN

sub56101-06989

main56101-06936iACV4#..(20,24G)..TH200911

*LAM,T=4.76,GREEN

sub56101-06990

main56101-06937iACV40,GSV40..(24V,35Q)..TH200911

*LAM,T=4.76,GREEN

sub56101-06991

main56101-06938iACV4#..MA,VN;ACV40..24G..IDN200911

*HSEAL,T=4.76,GREEN

sub56101-06935

main56101-06939iGSV40..PHL200911

*LAM,T=4.76,GREEN

main56101-06940iACV40..24V..IDN200911

*HSEAL,T=4.76,GREEN

sub56101-06936

main56101-06941iGSV40..IDN200911

*LAM,T=4.76,GREEN

sub56101-06991

main56101-06942iGSV40..VN200911

*HSEAL,T=4.76,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-22050iACV41,GSV40¥320200605-200606

main56114-33050iACV41..20G..TAIW¥320200607-200909

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iACV40,GSV40..VN¥130200605-200909

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020iACV41..20G..TAIW200605-200909

(L)

main56116-02020iACV40..MA,TH,VN;ACV40..24G..IDN;ACV41,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

TH 2.0E PACKAGE,(L)

main56116-22050iACV41,GSV40..TAIW;ACV40..24G..(PHL,TAIW);ACV40..(24E,24V)..(IDN,PHL,TAIW)¥120200605-200909

(J)

56117EDAM, WINDOW GLASS ADHESIVE

main56117-33100iACV4#,GSV40..IDN,MA,PHL,TH,VN¥820200802-200805

L=1496

sub56117-50140¥870

main56117-33100iACV4#,GSV40..IDN,MA,PHL,TH,VN¥820200802-200805

L=1496,TH 2.0E PACKAGE

sub56117-50140¥870

main56117-33100iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW¥820200605-200909

L=1480

sub56117-50140¥870

5701

7502

9011906480

main90119-06480¥80

9046710206

main90467-10206¥100

9056010108

main90560-10108¥140

26 parts on this diagram · 3 diagrams in section
