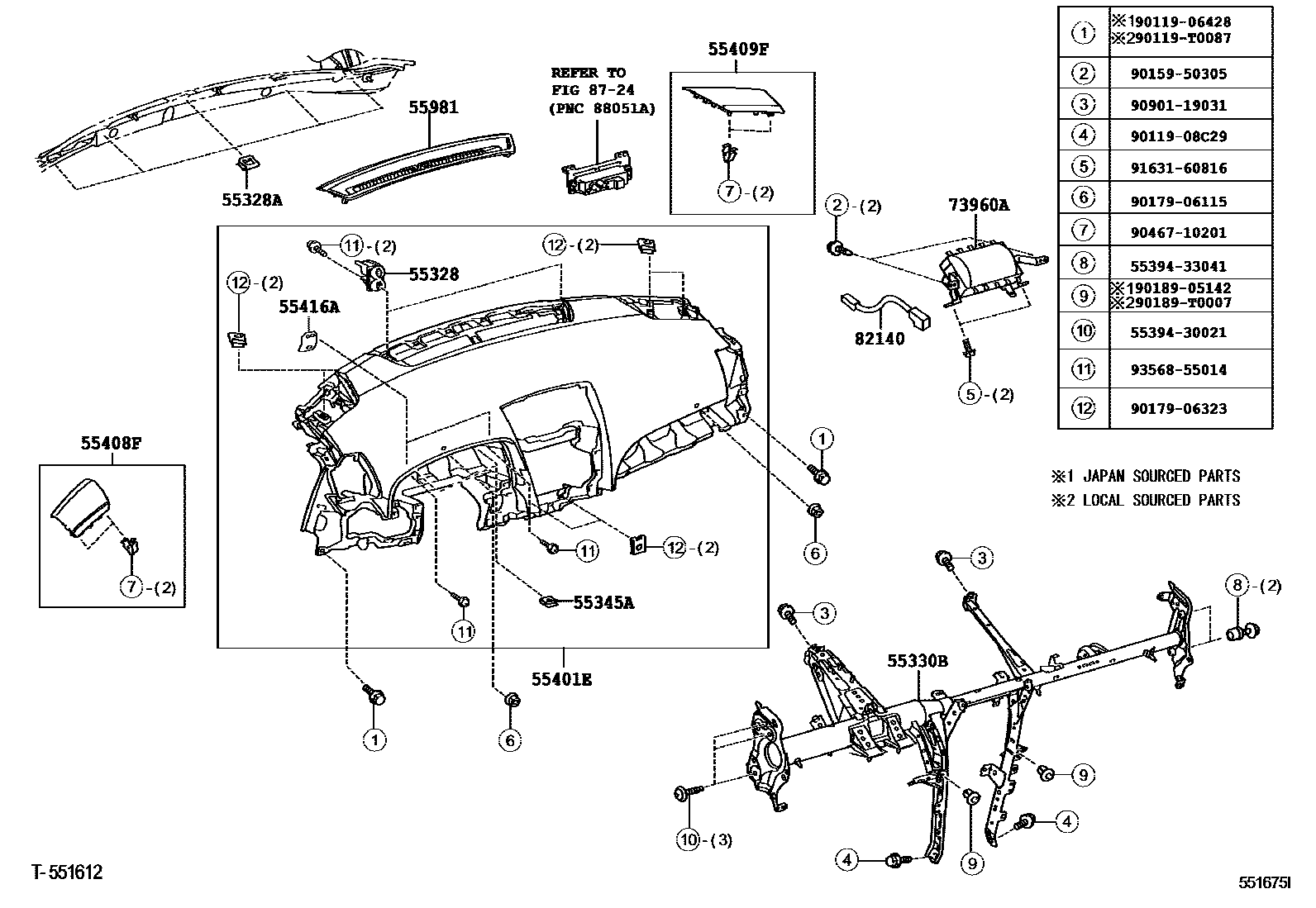

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55328PIN, INSTRUMENT PANEL, NO.1

main55328-30140iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200605-200909

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-30160iACV41..RHD;ACV40,GSV40;ACV41..20G..TAIW200605-200708

sub55328-50170

main55328-33120iACV41..TAIW200705-200711

sub55328-50170

main55328-50170iACV4#,GSV40200708-200909

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-06170iGSV40..35Q..TAIW200605-200803

sub55330-06171

main55330-06171iGSV40..35Q..TAIW200804-200903

main55330-06180iACV41..20G..TAIW200605-200803

sub55330-06181

main55330-06181iACV4#,GSV40..(20E,24E,24G,35V)..TAIW200804-200903

main55330-06190iGSV40..VN200611-200802

sub55330-06191

main55330-06191iGSV40..VN200803-200909

main55330-06200iGSV40..PHL;ACV40..PHL,VN200608-200802

sub55330-06201

main55330-06201iACV40,GSV40..PHL200803-200909

main55330-06210iGSV40..RHD200608-200802

sub55330-06211

main55330-06211iGSV40..RHD200803-200907

main55330-06220iACV4#..RHD200608-200802

sub55330-06221

main55330-06221iACV4#..RHD200803-200907

main55330-06250iAHV40200907

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iACV4#,GSV40200605-200909

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-06120-C0iGSV40..LHD;ACV4#..(20G,24E,24G)..TAIW200605-200807

BLACK,TRIM2#

sub55401-06220

main55401-06120-E0iACV41..TAIW200605-200807

ASH BROWN,TRIM4#

sub55401-06220

main55401-06130-C0iACV41..20E..TAIW200605-200710

BLACK,TRIM2#

main55401-06130-E0iACV41..20E..TAIW200605-200710

ASH BROWN,TRIM4#

main55401-06140-C0iGSV40..RHD200608-200811

BLACK,TRIM2#

sub55401-06141

main55401-06140-E0iACV4#,GSV40..RHD200608-200811

ASH BROWN,TRIM4#

sub55401-06141

main55401-06141-C0iGSV40..RHD200812-200907

BLACK,TRIM2#

main55401-06141-E0iACV4#..RHD200812-200907

ASH BROWN,TRIM4#

main55401-06200-C0iAHV40201010

BLACK,TRIM2#

main55401-06200-E0iAHV40200907

ASH BROWN,TRIM4#

main55401-06220-C0iGSV40..LHD;ACV4#..TAIW200807-200909

BLACK,TRIM2#

main55401-06220-E0iACV4#..LHD;GSV40..TAIW200807-200909

ASH BROWN,TRIM4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-06040-C0iACV4#,GSV40..TAIW200605-200903

BLACK,TRIM2#

main55472-06040-E0iACV4#,GSV40..TAIW200605-200903

ASH BROWN,TRIM4#

main55472-06050-C0iAHV40,GSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

sub55472-06050

main55472-06050-E0iACV4#,AHV40..IDN,MA,PHL,TH,VN200608-200909

ASH BROWN,TRIM4#

sub55472-06050

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-06040-C0iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

BLACK,TRIM2#

main55473-06040-E0iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

ASH BROWN,TRIM4#

main55473-06050-C0iGSV40..VN200608-200909

BLACK,TRIM2#

sub55473-06050

main55473-06050-E0iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

ASH BROWN,TRIM4#

sub55473-06050

55416ARETAINER, METER HOOD, NO.1

main55416-30140iACV4#,GSV40200605-200909

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-06060-C0iACV41..20G..TAIW200605-200903

BLACK,TRIM2#

main55981-06060-E0iACV41..20G..TAIW200605-200903

ASH BROWN,TRIM4#

main55981-06070-C0iAHV40,GSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

sub55981-06070

main55981-06070-E0iACV4#,AHV40..IDN,MA,PHL,TH,VN200608-200909

ASH BROWN,TRIM4#

sub55981-06070

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06130iACV41..TAIW200605-200909

82140WIRE ASSY, INSTRUMENT PANEL

main82143-06110iACV40,GSV40..VN200611-200909

main82143-06220iACV4#,AHV40,GSV40..IDN,MA,PHL,TH200608-200907

main82143-06230iACV41..20G..TAIW200605-200903

8724

5539430021BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-30021

5539433041BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-33041

9011906428

main90119-06428

9011908C29

main90119-08C29

90119T0087

main90119-T0087

9015950305

main90159-50305

9017906115

main90179-06115

9017906323

main90179-06323

9018905142

main90189-05142

90189T0007

main90189-T0007

9046710201

main90467-10201

9090119031

main90901-19031

9163160816

main91631-60816

9356855014

main93568-55014

26 parts on this diagram · 8 diagrams in section
