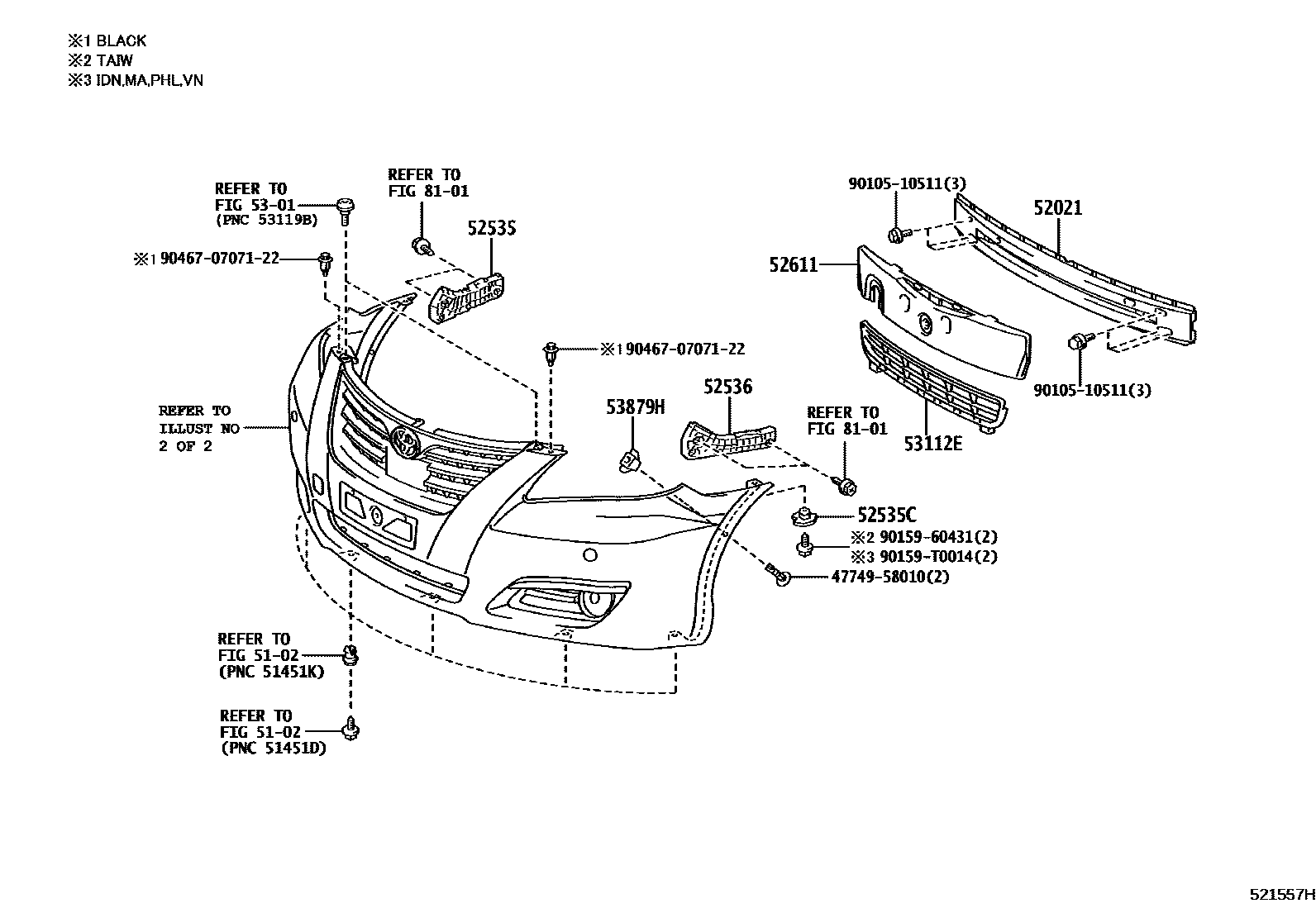

FRONT BUMPER & BUMPER STAY

0001 1 0004 1 0007 1 0010 1 0013 1 0014 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06050iACV41..20G..TAIW200605-200903

main52021-06060iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06040iACV41..20G..TAIW200605-200903

main52535-06080iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main52535-06090iACV4#,GSV40..TAIW200903

main52535-06100iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iACV41..20G..TAIW200605-200909

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06030iACV41..20G..TAIW200605-200903

main52536-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main52536-06080iACV4#,GSV40..TAIW200903

main52536-06090iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06080iACV41..20G..TAIW200605-200903

main52611-06110iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main52611-06150iACV4#,GSV40..TAIW200903-201112

main52611-06150iACV40,GSV40..VN201203-201206

WHITE

main52611-06160iACV40,GSV40..VN201203-201206

BLACK

main52611-06160iACV4#,GSV40..IDN,MA,PHL,TH,VN200907-201203

main52611-06190iAHV40200907-201201

5301

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-06030iACV41..20G..TAIW200605-200903

NO PAINT REQ.

main53112-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

NO PAINT REQ.

main53112-06110iACV4#,GSV40..TAIW200903-201112

NO PAINT REQ.

main53112-06120iACV4#,GSV40..IDN,MA,PHL,TH,VN200907-201207

NO PAINT REQ.

main53112-06150iAHV40200907-201203

NO PAINT REQ.

53879HRETAINER, FRONT FENDER LINER

main53879-0K010iACV40,GSV40..VN200608-200909

main53879-58010iACV41..20G..TAIW200605-200903

8101

4774958010CLIP, PIN HOLD

main47749-58010

9010510511

main90105-10511

9015960431

main90159-60431

90159T0014

main90159-T0014

904670707122

main90467-0707122

15 parts on this diagram · 6 diagrams in section
