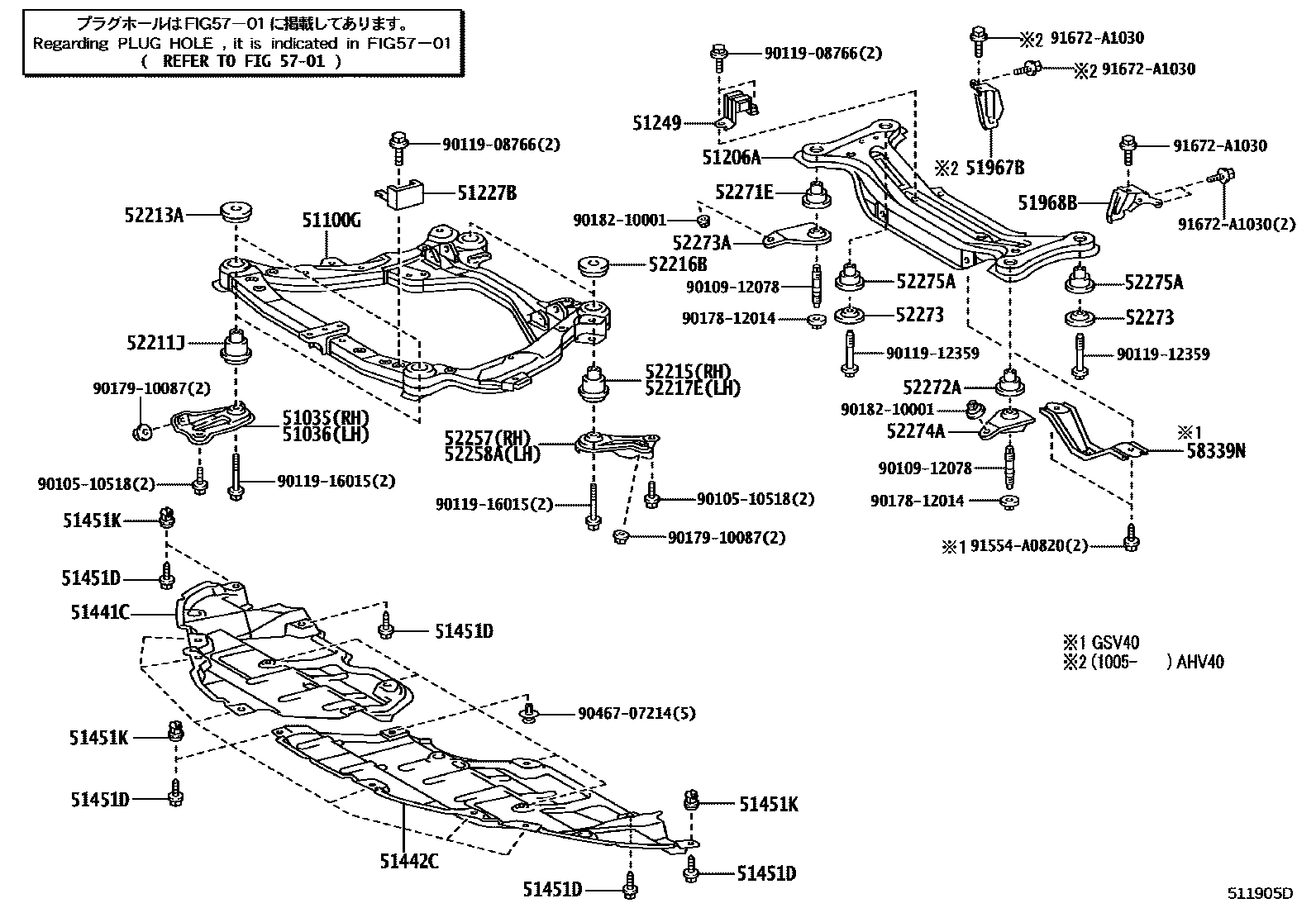

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1FLOOR UNDER COVER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-06010iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main51035-06020iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-06010iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main51036-06020iACV40,GSV40..VN200608-200909

51100GFRAME ASSY, FRONT

main51100-06140iACV40,GSV40..VN200907-200909

sub51100-33120¥79,300

main51100-33070iACV4#,GSV40..IDN,MA,PHL,TH¥86,900200605-200908

sub51100-33073¥86,900

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33061iACV40,GSV40..VN¥45,700200605-200909

sub51206-33100¥38,100

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-06050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main51227-06060iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

51249DAMPER, REAR SUSPENSION MEMBER

main51249-06020iACV4#,GSV40..TAIW200605-200903

main51249-06030iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

51441CCOVER, ENGINE UNDER, RH

main51441-06070iACV41..20G..TAIW200605-200812

sub51441-06071

main51441-06071iACV4#,GSV40..TAIW200901-200903

main51441-06080iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main51441-06120iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

51442CCOVER, ENGINE UNDER, LH

main51442-06060iACV41..20G..TAIW200605-200812

sub51442-06061

main51442-06061iACV4#,GSV40..TAIW200901-200903

main51442-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main51442-06110iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

51451DSCREW, NO.1

main90159-60525iACV4#,GSV40..TAIW¥110200605-201112

main90159-T0008iACV4#,GSV40..IDN,MA,PHL,TH,VN200808-201207

51451KGROMMET, SCREW, NO.1

main90189-06193iACV4#,GSV40¥80200605-201207

51967BHOOK, TRANSPORT, REAR RH

main51967-06030iACV41..TH200608-200702

sub51967-33030¥2,690

main51967-06030iACV4#,GSV40..IDN,MA,PHL200608-200907

SINGAPORE OR BRUNEI SPEC

sub51967-33030¥2,690

51968BHOOK, TRANSPORT, REAR LH

main51096-06010iGSV40..IDN200608-200907

main51968-06030iACV41..20G..TAIW200605-200903

main51968-06040iACV40,GSV40..VN200608-200909

sub51968-33020¥2,710

main51968-06050iACV40..IDN200608-200907

sub51968-33030¥4,650

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06090iGSV40..TAIW200605-200903

main52211-06100iGSV40..VN200608-200909

main52211-06140iACV4#..(20E,24E,24G)..TAIW200605-200903

main52211-06150iACV40..VN200608-200909

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06090iGSV40..TAIW200605-200903

main52213-06100iGSV40..VN200608-200909

main52213-06140iACV41..20G..TAIW200605-200903

main52213-06150iACV40..VN200608-200909

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06070iACV4#,GSV40..TAIW200605-200903

main52215-06080iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06070iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main52216-06080iACV40,GSV40..VN200608-200909

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main52217-06060iACV40,GSV40..VN200608-200909

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-06010iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main51023-06020iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-06010iACV4#,GSV40..TAIW200605-200903

main51024-06020iACV40,GSV40..VN200608-200909

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-06060iACV4#,GSV40..TAIW200605-200903

main52271-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main52271-33050iACV40,GSV40..VN¥2,780200611-200909

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-06050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main52272-06060iACV4#,AHV40,GSV40..IDN,MA,PHL,TH200608-200907

main52272-33050iACV40,GSV40..VN¥2,460200611-200909

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW¥690200605-200909

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-33030iACV41..20G..TAIW¥3,150200605-200909

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-33030iACV4#,GSV40..IDN,MA,PHL,TH¥3,150200605-200909

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06060iACV41..20G..TAIW200605-200903

main52275-06110iACV4#,AHV40,GSV40..IDN,MA,PHL,TH200608-200907

main52275-33050iACV40,GSV40..VN¥2,460200611-200909

5701

58339NBRACKET, JACK UP

main58339-33020iGSV40..TAIW200605-201009

sub58339-33021¥2,370

main58339-33021iGSV40¥2,370201010

9010510518

main90105-10518¥140

9010912078

main90109-12078¥330

9011908766

main90119-08766¥160

9011912359

main90119-12359¥410

9011916015

main90119-16015¥600

9017812014

main90178-12014¥160

9017910087

main90179-10087¥110

9018210001

main90182-10001¥220

9046707214

main90467-07214¥70

91554A0820

main91554-A0820¥80

91672A1030

main91672-A1030¥120

38 parts on this diagram · 3 diagrams in section
