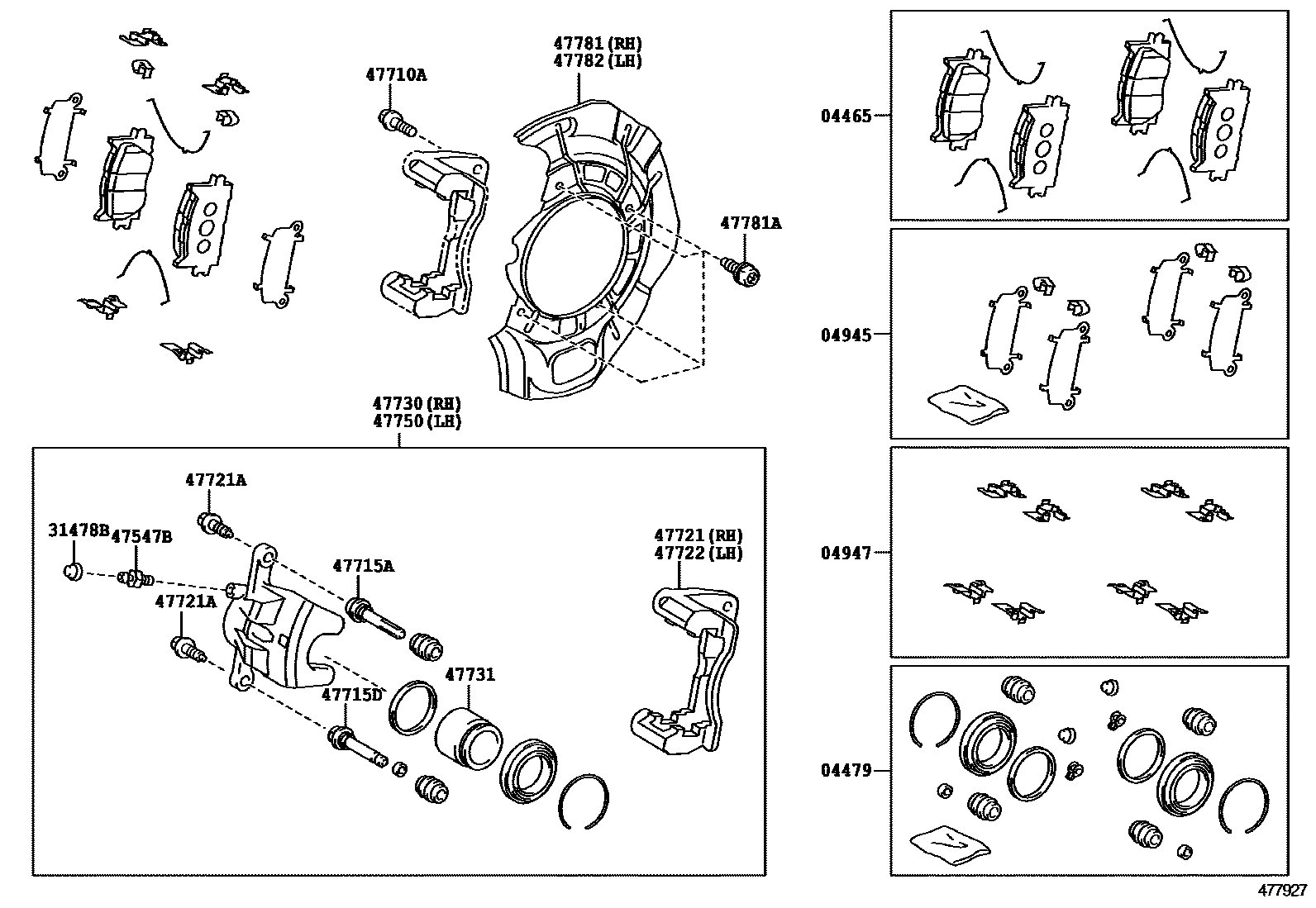

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-06110iACV4#,GSV40..IDN,MA,PHL,TH200608-201001

MARK NBK PN562H

main04465-06130iACV4#,GSV40..IDN,MA,PHL,TH,VN201008-201201

MARK NBK D6911H

sub04465-06131

main04465-06131iACV40,GSV40..VN201201

MARK NBK D6911H

main04465-33450iACV41..20G..TAIW200605-200903

MARK NBK PN562H

main04465-33470iACV4#,GSV40..IDN,MA,PHL,TH,VN201001-201008

MARK NBK D6911H

sub04465-33471

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06160iACV41..20G..TAIW200605-200804

sub04478-06240

main04478-06170iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200804

sub04478-06250

main04478-06240iACV4#,GSV40..TAIW200804-201112

main04478-06250iACV40,GSV40..VN200804-201004

sub04478-06251

main04478-06251iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN201004-201109

sub04478-06252

main04478-06252iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN201109-201201

sub04478-06253

main04478-06270iACV40,GSV40..VN201201-201206

sub04478-06271

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06110iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

main04945-33260iACV41..20G..TAIW200605-200903

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main04947-33220iACV41,GSV40200605-200606

sub04947-33240

main04947-33240iACV41..20G..TAIW200606-200903

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN201004

main31478-30010iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-201004

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030iAHV40201001-201206

main47547-20010iACV4#,GSV40..(20,20E,20G,24G,24V,35Q)..(IDN,MA,PHL,TH,VN)200605-201112

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iACV4#,GSV40200605-201206

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-33361iACV4#,GSV40201201-201207

main47715-06250iACV4#,GSV40..TAIW200605-201112

main47715-52190iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-201203

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-06250iACV4#,GSV40..TAIW200605-201112

main47715-33340iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-201207

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06250iACV4#,GSV40..TAIW200605-201112

main47721-06260iACV40,GSV40..VN200608-201201

main47721-06281iACV40,GSV40..VN201201-201206

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603iAHV40201001-201206

*8-1.00PX23-15

main90105-08164iACV4#,GSV40..(20,20E,20G,24G,24V,35Q)..(IDN,MA,PHL,TH,VN)200605-201112

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-06250iACV41..20G..TAIW200605-201112

main47722-06260iACV40,GSV40..VN200608-201201

main47722-06281iACV40,GSV40..VN201201-201206

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06250iACV4#,GSV40..TAIW200605-200903

main47730-06260iACV4#,GSV40..IDN,MA,PHL,TH200608-201201

main47730-06281iACV40,GSV40..VN201201

47731PISTON, FRONT DISC BRAKE

main47731-06260iACV40,GSV40..VN200608-200909

LH

main47731-06260iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907-201206

main47731-33340iACV4#,GSV40..TAIW200605-201112

LH

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06250iACV41..20G..TAIW200605-200903

main47750-06260iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-201201

main47750-06281iACV40,GSV40..VN201201

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06090iACV4#,GSV40..TAIW200605-200903

main47781-06120iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

sub47781-33040

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iACV4#,GSV40..TAIW,VN200605-200909

main90119-T0005iACV4#,AHV40,GSV40..IDN,MA,PHL,TH200608-200907

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06090iACV4#,GSV40..TAIW200605-200903

main47782-06120iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

sub47782-33040

18 parts on this diagram · 1 diagram in section
