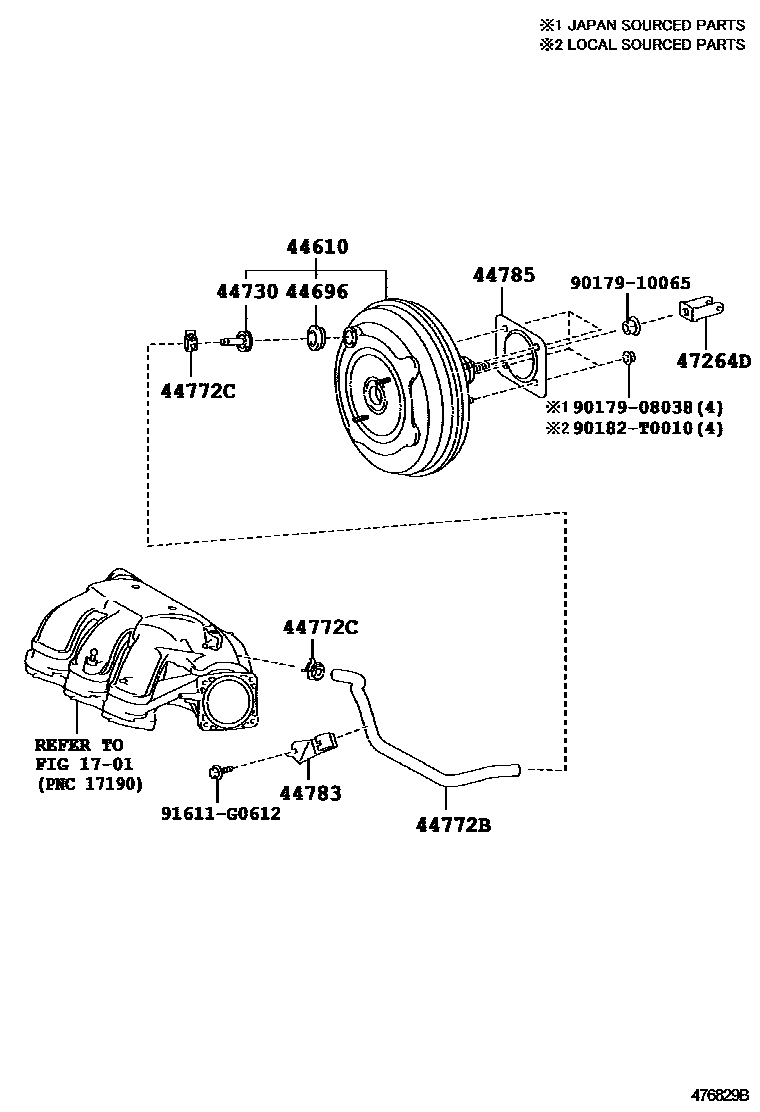

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701

44610BOOSTER ASSY, BRAKE

main44610-06390iACV40..PHL200608-201001

main44610-06391iACV40..PHL201001-201008

sub44610-06392

main44610-06392iACV40..PHL201009

main44610-06400iACV40,GSV40..VN200608-201001

main44610-06401iACV40..VN;GSV40..PHL,VN201001-201008

sub44610-06402

main44610-06402iACV40..VN;GSV40..PHL,VN201009

main44610-06410iACV40..IDN;ACV4#..(20,20E,20G,24G)..(MA,TH)200608-201001

main44610-06411iACV40..IDN;ACV4#..(20,20E,20G,24G)..(MA,TH)201001-201008

sub44610-06412

main44610-06412iACV40..IDN;ACV4#..(20,20E,20G,24G)..(MA,TH)201009

main44610-06420iGSV40..RHD;ACV40..24V..(MA,TH)200608-201001

main44610-06421iGSV40..RHD;ACV40..24V..(MA,TH)201001-201008

sub44610-06422

main44610-06422iGSV40..RHD;ACV40..24V..(MA,TH)201009

main44610-33670iACV4#..(20E,24E)..TAIW200605-200903

main44610-33680iACV40..24E..TAIW200903

TW 2.4E SE PACKAGE

main44610-33680iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

44696GROMMET, CHECK VALVE

main90480-24015iACV41..20G..TAIW200605-200909

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10020iACV4#,GSV40..RHD200608-200907

main44730-28030iACV40,GSV40..PHL200605-200909

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-06210iACV41..20G..TAIW200605-200903

main44772-06230iGSV40..TAIW200605-200903

main44772-33120iACV4#..RHD200608-200907

main44772-33130iGSV40..RHD200608-200907

main44772-33150iACV40..PHL200608-200909

main44772-33170iGSV40..PHL200608-200909

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014iACV40,GSV40..VN200605-200909

44783CLAMP, VACUUM HOSE

main44783-28010iACV41..20G..TAIW200605-200909

main44783-33010iGSV40..VN200605-200909

44785GASKET, BRAKE BOOSTER

main44785-0D020iACV4#,GSV40..IDN,MA,PHL,TH,VN201101

main44785-16020iACV40,GSV40..VN200605-201101

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06020iACV4#,GSV40..IDN,MA,PHL,TH200810-200909

main47264-63020iACV41..20G..TAIW200605-200903

9017908038

main90179-08038

9017910065

main90179-10065

90182T0010

main90182-T0010

91611G0612

main91611-G0612

13 parts on this diagram · 4 diagrams in section
