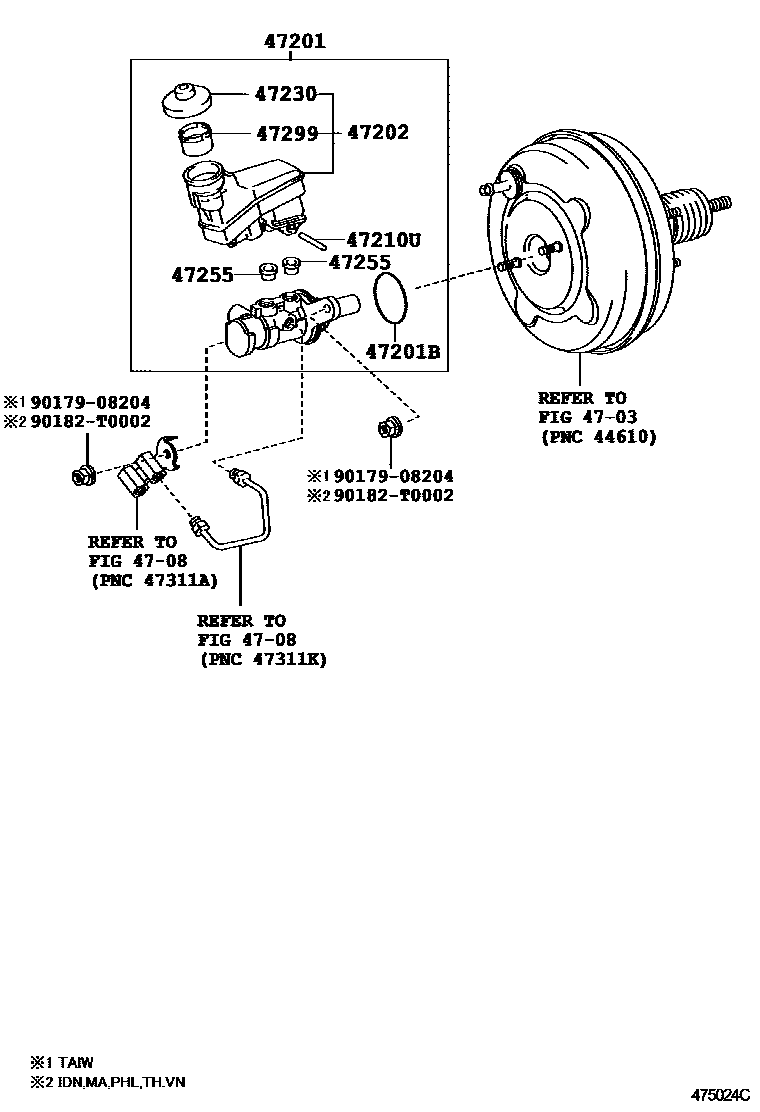

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06380iACV40,GSV40..VN200608-201008

sub47201-06381

main47201-06381iACV40,GSV40..PHL,VN201009

main47201-06390iACV4#,GSV40..RHD200608-201008

sub47201-06391

main47201-06391iACV4#,GSV40..RHD201009

main47201-33480iACV41..20G..TAIW200605-200807

sub47201-33481

main47201-33481iACV4#,GSV40..TAIW200808-200903

main47201-33540iAHV40200907

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200909

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06200iACV40,GSV40..VN200608-200909

main47220-06210iACV4#,GSV40..RHD200608-200907

main47220-33070iACV41..20G..TAIW200605-200807

sub47220-33071

main47220-33071iACV4#,GSV40..TAIW200808-200903

main47221-50080iAHV40200907

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iACV4#,GSV40..IDN,MA,PHL,TH200605-200909

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33071iACV40..24E..TAIW;ACV4#,GSV40..20,20E,20G,24G,24V,35Q,35V200805-200909

sub47230-33072

main47230-52030iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200808

sub47230-33071

main47230-58010iAHV40200907

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAHV40200907

main90015-AT001iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200909

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-30190iAHV40200907

main47299-52110iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200909

9017908204

main90179-08204

90182T0002

main90182-T0002

11 parts on this diagram · 2 diagrams in section
