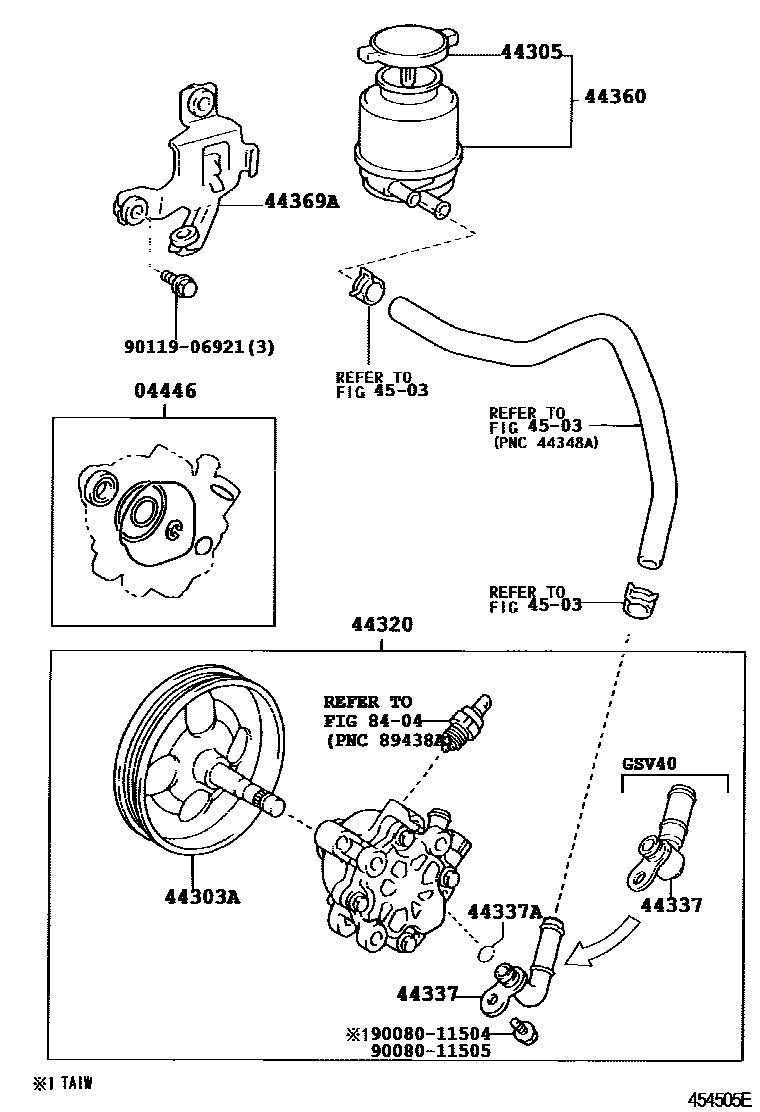

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-02090iACV4#,GSV40..TAIW200605-200903

main04446-06060iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200709

main04446-06100iACV4#,GSV40..IDN,MA,PHL,TH,VN200709-200803

sub04446-06110

main04446-06110iACV4#,GSV40..IDN,MA,PHL,TH,VN200803-200909

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main44303-06050iACV41..20G..TAIW200605-200903

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-02060iACV41..20G..TAIW200605-200801

sub44305-02070

main44305-02070iACV4#,GSV40..TAIW200802-201112

main44305-28030iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200801

sub44305-28060

main44305-28060iACV4#,GSV40..IDN,MA,PHL,TH200802-201206

sub44305-28061

44320PUMP ASSY, VANE

main44310-06100iGSV40..VN200608-200909

main44310-06140iACV41..20G..TAIW200605-200903

main44310-06160iGSV40..TAIW200605-200903

main44310-06180iACV40..VN200608-200909

44337UNION, POWER STEERING SUCTION PORT

main44337-02080iACV41..20G..TAIW200605-200903

main44337-06060iACV4#..IDN,MA,PHL,TH,VN200608-200909

main44337-06080iGSV40..IDN,PHL,TH,VN200608-200909

main44337-06090iGSV40..TAIW200605-200903

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30088iACV4#,GSV40..TAIW200903

main90080-30093iACV40,GSV40..VN200608-200909

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-06040iACV41..20G..TAIW200605-200903

main44360-33040iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-06040iACV41..20G..TAIW200605-200903

main44390-33020iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200809

sub44390-33021

main44390-33021iACV4#,GSV40..IDN,MA,PHL,TH200810-200909

4503

8404

9008011504

main90080-11504

9008011505

main90080-11505

9011906921

main90119-06921

13 parts on this diagram · 1 diagram in section
