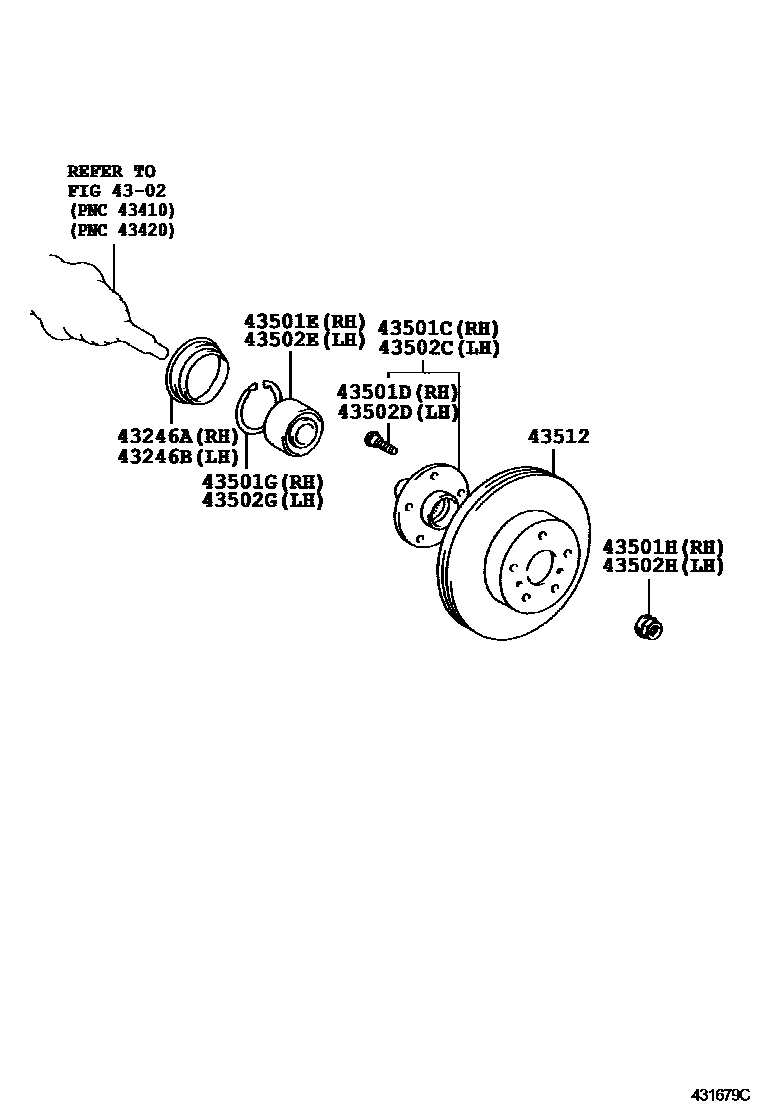

FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020iACV41..20G..TAIW200605-200709

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-06070iACV4#..TAIW201001

(L)

main43502-06080iGSV40..TAIW201001

(L)

main43502-06120iACV4#,AHV40..IDN,MA,PHL,TH200907

main43502-06130iGSV40..IDN,PHL,TH200907

main43502-28090iACV4#..IDN,MA,PHL,TH,VN200608-200703

main43502-28100iGSV40..VN200608-200909

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iACV40,GSV40..VN200605-200909

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-45005iACV4#,GSV40..TAIW200903

main90369-T0004iACV4#,GSV40200605-200904

main90369-T0007iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iACV4#..IDN,MA,PHL,TH,VN200605-200703

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iACV41..20G..TAIW200605-200709

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-06070iACV4#..(20E,24E,24G)..TAIW200605-200903

main43502-06080iGSV40..TAIW201001

(L)

main43502-06120iACV4#,AHV40..IDN,MA,PHL,TH200907

main43502-06130iGSV40..IDN,PHL,TH200907

main43502-28090iACV4#..IDN,MA,PHL,TH,VN200608-200703

main43502-28100iGSV40..VN200608-200909

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iACV41..20G..TAIW200605-200709

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-45005iACV4#,GSV40..TAIW200903

main90369-T0004iACV4#,GSV40200605-200904

main90369-T0007iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iACV4#..IDN,MA,PHL,TH,VN200605-200703

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

43512DISC, FRONT

main43512-06110×2iACV4#,GSV40..TAIW200903-201102

main43512-06111×2iACV4#,GSV40..TAIW201103-201112

main43512-06120×2iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907-201112

main43512-06121×2iACV40,GSV40..VN201201-201206

14 parts on this diagram · 1 diagram in section
