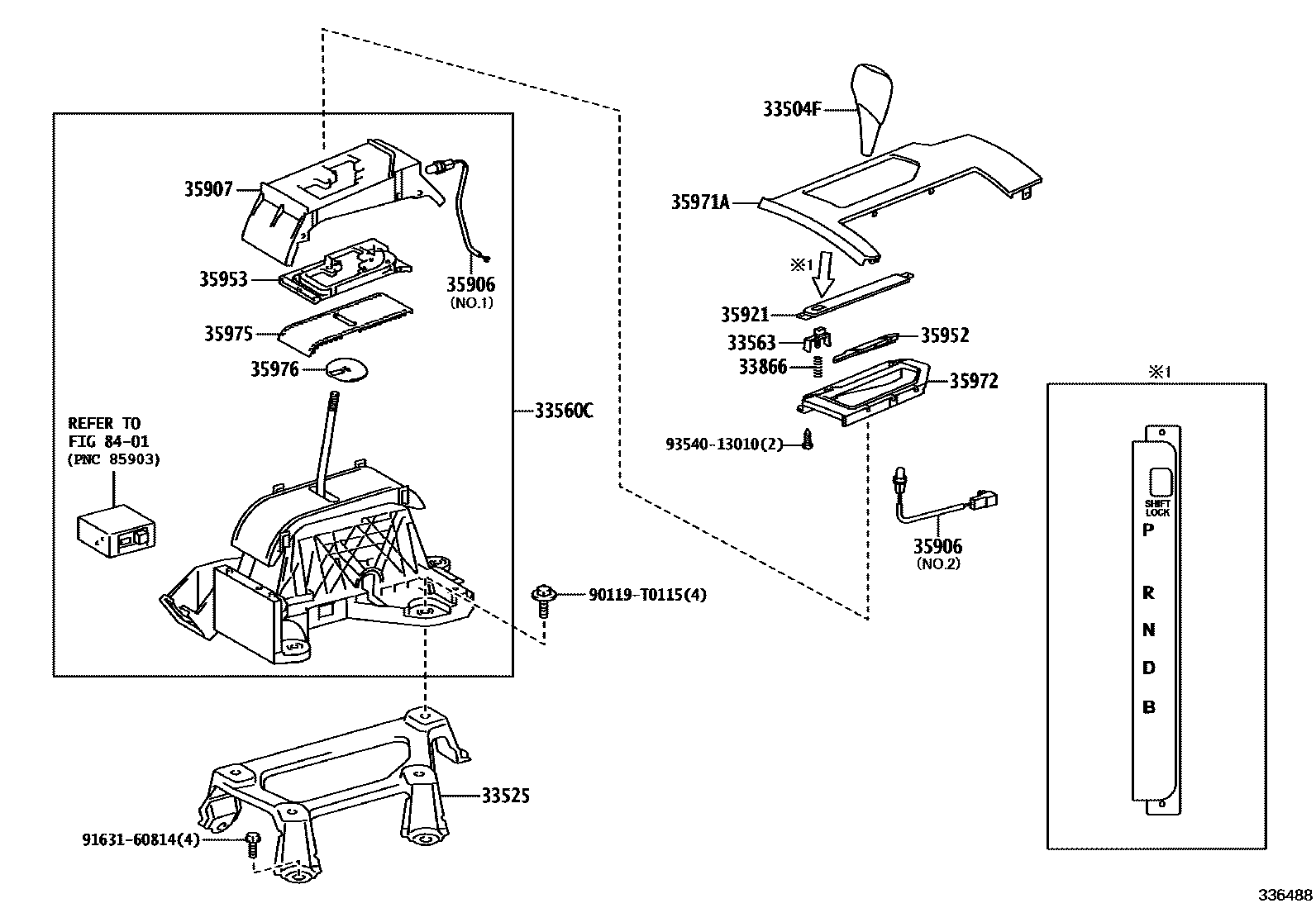

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-06070-C0iACV40..24E..TAIW200709-200903

TW 2.4E LOW PACKAGE,BLACK,TRIM2#

main33504-06070-C0iACV41..TAIW200605-200903

BLACK,TRIM2#

main33504-06070-E0iACV41..TAIW200605-200903

ASH BROWN,TRIM4#

main33504-06070-E0iACV40..24E..TAIW200709-200903

TW 2.4E LOW PACKAGE,ASH BROWN,TRIM4#

main33504-06100-C0iACV41..20E..TAIW200605-200710

TW 2.0E HI PACKAGE,BLACK,TRIM2#

main33504-06100-C0iACV4#,GSV40..(20G,24E,24G,35Q,35V)..TAIW200605-200903

BLACK,TRIM2#

main33504-06100-E0iACV40,GSV40..TAIW200605-200903

ASH BROWN,TRIM4#

main33504-06100-E0iACV41..20E..TAIW200605-200710

TW 2.0E HI PACKAGE,ASH BROWN,TRIM4#

main33504-33020-E0iACV40..24E..TH;ACV40..24G..IDN200608-200907

ASH BROWN,TRIM4#

sub33504-42020

main33504-33030-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

sub33504-33030

sub33504-12460

main33504-33030-E0iACV40..24G..(PHL,TH,VN);ACV4#,GSV40..(20,20E,20G,24V,35Q)..(IDN,MA,PHL,TH,VN)200608-200909

ASH BROWN,TRIM4#

sub33504-33030

sub33504-12460

33525SUPPORT, SHIFT LEVER

main58123-06030iACV4#,GSV40..LHD200605-200909

main58123-06040iACV4#,GSV40..RHD200608-200907

33560CLEVER ASSY, SHIFT, LOWER

main33560-06080iACV40..PHL,VN;ACV40..24E..TAIW200608-200909

main33560-06090iACV40..RHD..24G200907

main33560-06100iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

main33560-06100iGSV40..LHD;ACV40..24G..TAIW200605-200909

main33560-06110iACV41..TAIW200605-200903

main33560-06120iACV40..MA;ACV40..RHD..(24E,24G)200608-200906

sub33560-06090

main33560-06130iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200906

sub33560-06210

main33560-06140iACV41..RHD200608-200906

sub33560-06220

main33560-06190iAHV40200907

main33560-06210iACV40,GSV40..RHD..(24V,35Q)200907

main33560-06220iACV41..RHD200907

33563BUTTON, SHIFT LOCK RELEASE

main33563-06120iACV4#,AHV40,GSV40..RHD200608-200907

33866SPRING, SHIFT LOCK RELEASE

main33866-06030iACV4#,GSV40..RHD200608-200907

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-06070iACV4#,GSV40..RHD200608-200907

NO.1

main35906-06090iACV4#,GSV40..RHD200608-200907

NO.2

main35906-06091iACV4#,AHV40,GSV40..RHD200907

NO.2

main35906-06100iACV4#,GSV40..LHD200605-200909

NO.2

main35906-06170iAHV40200907

NO.1

main35906-33160iACV4#,GSV40..LHD200605-200909

NO.1

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-06020iACV40,GSV40..LHD200605-200909

main35907-06030iACV41..TAIW200605-200903

main35907-06040iACV40,GSV40..RHD200608-200907

main35907-06050iACV41..RHD200608-200907

main35907-06080iAHV40200907

35921PLATE, CONTROL POSITION INDICATOR

main35921-06040iACV40,GSV40..RHD200608-200907

main35921-06050iACV41..RHD200608-200907

main35921-06140iAHV40200907

35952LENS, POSITION INDICATOR

main35952-06010iACV4#,GSV40..RHD200608-200907

sub35952-06040

main35952-06040iACV4#,AHV40,GSV40..RHD200907

35953GUIDE, POSITION INDICATOR LIGHT

main35953-06030iACV41..TAIW200605-200903

main35953-06040iACV40,GSV40..RHD200608-200907

main35953-06050iACV41..RHD200608-200802

sub35953-06051

main35953-06051iACV41..RHD200803-200907

main35953-06080iACV40,GSV40..LHD200605-200909

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-06070iACV40..24G..TH;ACV4#,AHV40,GSV40..RHD..(20,20E,20G,24V,35Q,HBD)200608-200907

main35971-06080iACV40..24E..TH;ACV40..24G..IDN200608-200907

35972COVER, POSITION INDICATOR HOUSING

main35972-06050iACV4#,GSV40..RHD200608-200907

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-06060iACV4#,GSV40..RHD200608-200907

main35975-06070iACV4#,GSV40..LHD200605-200909

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-06070iACV4#,GSV40..RHD200608-200907

main35976-06080iACV4#,GSV40..LHD200605-200909

8401

90119T0115

main90119-T0115

9163160814

main91631-60814

9354013010

main93540-13010

18 parts on this diagram · 5 diagrams in section
