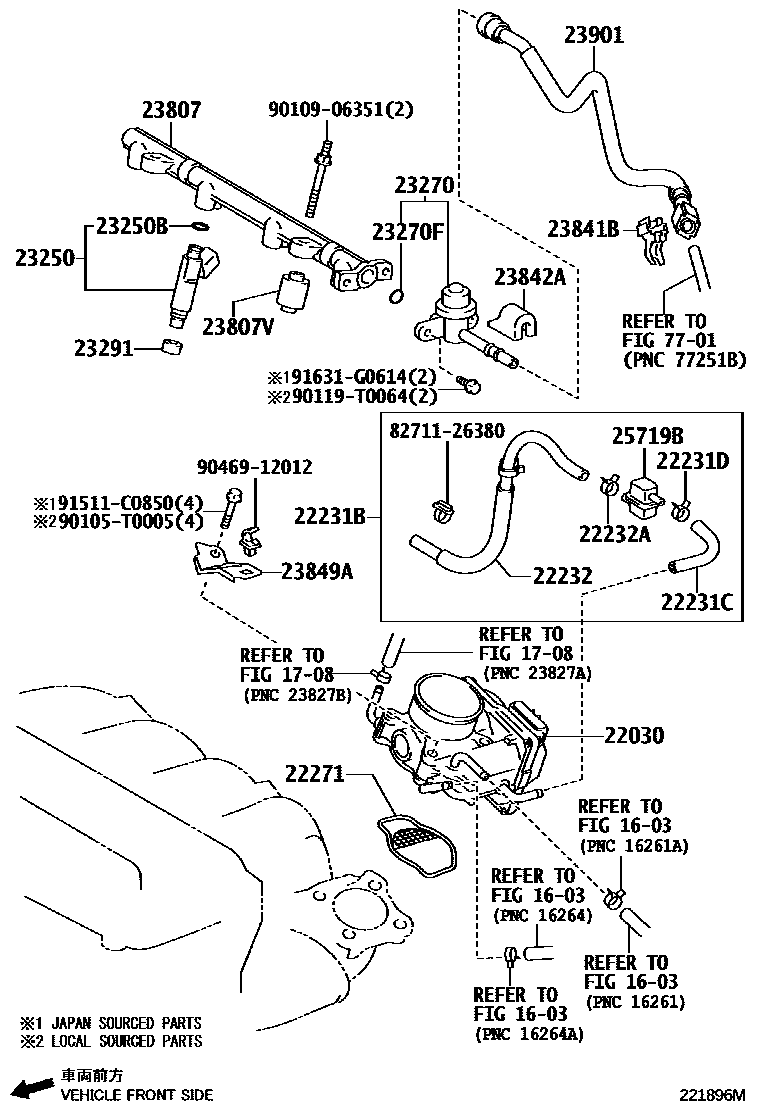

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28070i1AZFE,2AZFE..ACV4#¥83,600200605-200908

sub22030-28071¥69,700

main22030-28071i1AZFE,2AZ#..ACV4#,AHV40¥69,700200908-200909

main22030-31030i2GRFE..GSV40..TAIW¥58,000200605-200909

22231BHOSE, THROTTLE BODY

main22231-28070i1AZFE..ACV41200605-200908

22231CHOSE, THROTTLE BODY, NO.1

main22231-28060i2AZFE..ACV40¥770200608-200908

main22231-28100i1AZFE..ACV41200605-200908

22231DCLAMP OR CLIP(FOR THROTTLE BODY HOSE)

main90467-12056i1AZFE..ACV41¥70200605-200908

22232HOSE, THROTTLE BODY, NO.2

main22232-28010i1AZFE..ACV41¥520200605-200908

22232ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)

main90467-12056i1AZFE..ACV41¥70200605-200908

22271GASKET, THROTTLE BODY

main22271-28020i1AZFE..ACV41¥760200605-201203

main22271-31040i2GRFE..GSV40¥340200605-201206

main22271-75031i2AZFE..ACV40..24E..TAIW;2AZ#..ACV40,AHV40..24G,24V,HBD¥250200608-201207

23250INJECTOR ASSY, FUEL

main23209-0H070i1AZFE..ACV41..20G..TAIW200605-200909

(L)

main23209-0H070i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903

main23209-28060i2AZFXE..AHV40¥16,800200907

main23209-28080i2AZFE..ACV40..VN¥16,800200605-200909

(J)

main23209-31050i2GRFE..GSV40..IDN,PHL,TH¥14,000200605-200909

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1AZFE..ACV41¥190200605-200607

main90301-07033i2GRFE..GSV40..VN¥140200605-200909

main90301-07037i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH¥140200607-200909

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28050i1AZFE,2AZFE..ACV4#¥9,100200605-200702

sub23270-28051¥9,100

main23270-28051i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN¥9,100200702-200801

sub23270-28052¥9,200

main23270-28052i1AZFE,2AZFE..ACV4#..TAIW¥9,200200801-201206

main23270-28070i1AZFE,2AZFE..ACV4#..(20,24G)..TH201112-201201

main23270-28080i1AZFE,2AZFE..ACV4#..(20,24G)..TH¥9,100200712-201112

sub23270-28070

main23270-31010i2GRFE..GSV40¥6,400200605-200708

sub23270-31080¥6,400

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD¥140200605-201206

23291INSULATOR, INJECTOR VIBRATION

main23291-0H020i2AZFE..ACV40..VN200605-201207

(L)

main23291-23010i2GRFE..GSV40..VN¥240200605-200909

main23291-28020i2AZFXE..AHV40¥310200907-201203

main23291-41010i2AZFE..ACV40..VN¥340200605-201207

(J)

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31040i2GRFE..GSV40¥13,300200605-200708

main23807-31090i2GRFE..GSV40..IDN,PHL,TH¥13,400200708-200909

main23814-28031i1AZFE,2AZFE..ACV4#..IDN,MA,PHL¥9,400200605-200909

sub23814-28060¥7,800

main23814-28060i1AZFE,2AZFE..ACV4#..TH¥7,800200802-200907

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i1AZFE..ACV41..20G..TAIW¥180200605-200909

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2GRFE..GSV40..TAIW¥220200705-200909

main23841-28010i1AZFE,2AZFE..ACV4#¥370200605-200704

sub23841-21050¥220

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH¥500200605-200909

main23842-31040i2GRFE..GSV40¥630200605-200909

23849ASUPPORT, FUEL PIPE

main23849-28050i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW¥300200605-200909

23901TUBE SUB-ASSY, FUEL

main23901-0H130i2AZFXE..AHV40200907

main23901-28320i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V¥6,100200605-200909

main23901-31060i2GRFE..GSV40..TAIW¥6,400200605-200909

25719BTANK, VACUUM SURGE

main25719-28040i1AZFE..ACV41¥2,100200605-200908

7701

8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26380¥120

90105T0005

main90105-T0005

9010906351

main90109-06351¥130

90119T0064

main90119-T0064

9046912012

main90469-12012¥210

91511C0850

main91511-C0850¥110

91631G0614

main91631-G0614¥60

29 parts on this diagram · 4 diagrams in section
