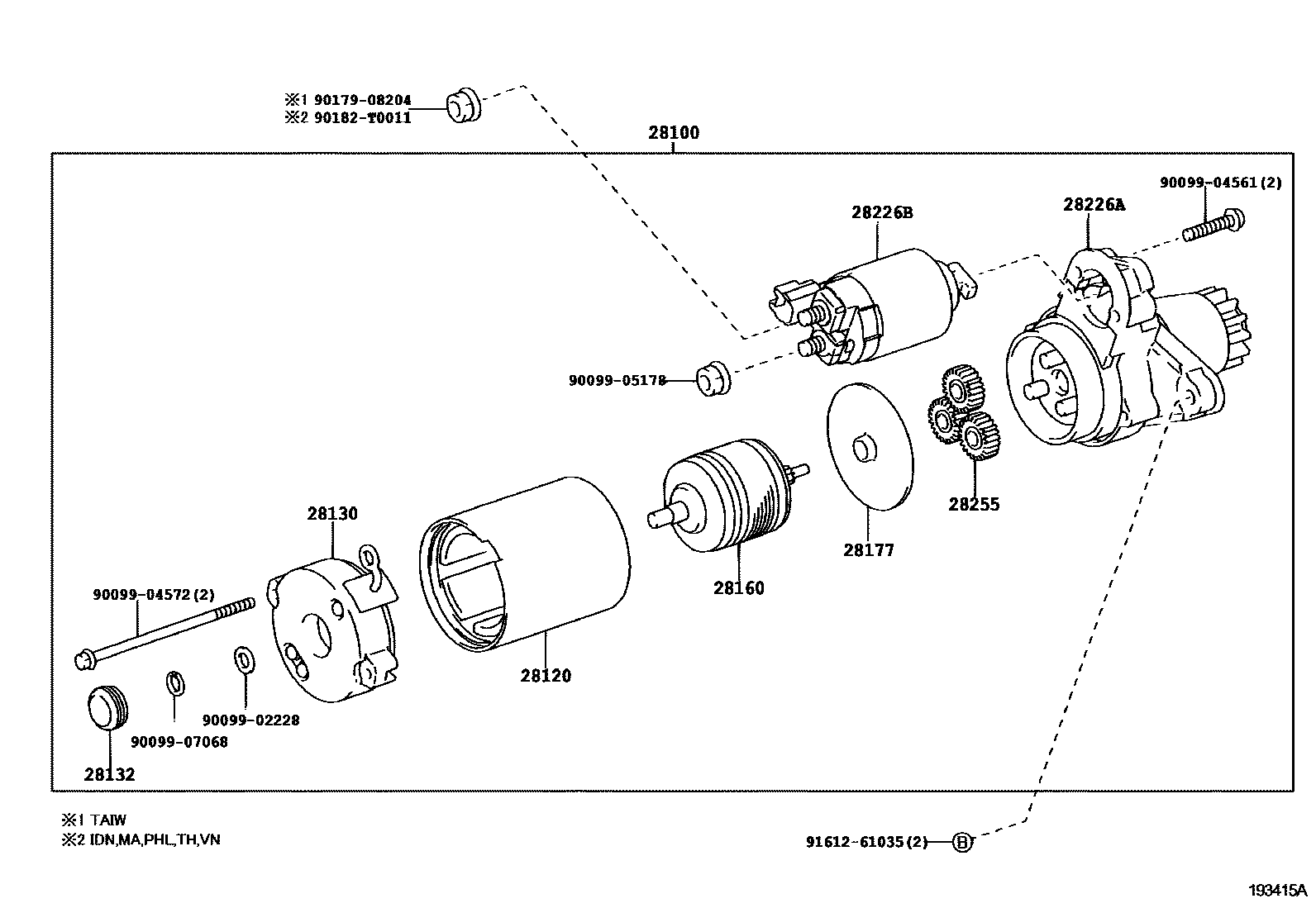

STARTER

0001 112V 1.6KW,1.7KW 0004 112V 1.6KW,1.7KW

28100STARTER ASSY

main28100-20020i2GRFE..GSV40200605-200909

12V 1.7KW

sub28100-20021

main28100-28041i1AZFE,2AZFE..ACV4#200605-200909

12V 1.6KW

sub28100-28042

main28100-28060i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903-200910

12V 1.6KW

sub28100-28062

main28100-28062i1AZFE,2AZFE..ACV4#200911

12V 1.6KW

main28100-28070i2GRFE..GSV40200903-200910

12V 1.7KW

sub28100-28072

main28100-28072i2GRFE..GSV40200911

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-28040i1AZFE,2AZFE,2GRFE..ACV4#,GSV40200605-200808

sub28120-28060

main28120-28060i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE,2GRFE..ACV4#,GSV40..20,20E,20G,24G,24V,35Q,35V200808-200909

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2GRFE..GSV40200605-200909

main28130-28040i1AZFE,2AZFE..ACV4#200605-200909

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28132-28040i1AZFE,2AZFE,2GRFE..ACV4#,GSV40200605-200909

28160ARMATURE ASSY, STARTER

main28160-28040i1AZFE,2AZFE,2GRFE..ACV4#,GSV40200605-200909

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i1AZFE,2AZFE,2GRFE..ACV4#,GSV40200605-200909

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i1AZFE,2AZFE,2GRFE..ACV4#,GSV40200605-200909

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i1AZFE,2AZFE,2GRFE..ACV4#,GSV40200605-200909

main28226-28060i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE,2GRFE..ACV4#,GSV40..20,20E,20G,24G,24V,35Q,35V200903

28255GEAR, PLANET

main28255-20020i2GRFE..GSV40200605-200909

main28255-28040i1AZFE,2AZFE..ACV4#200605-200909

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

90182T0011

main90182-T0011

9161261035

main91612-61035

17 parts on this diagram · 2 diagrams in section
