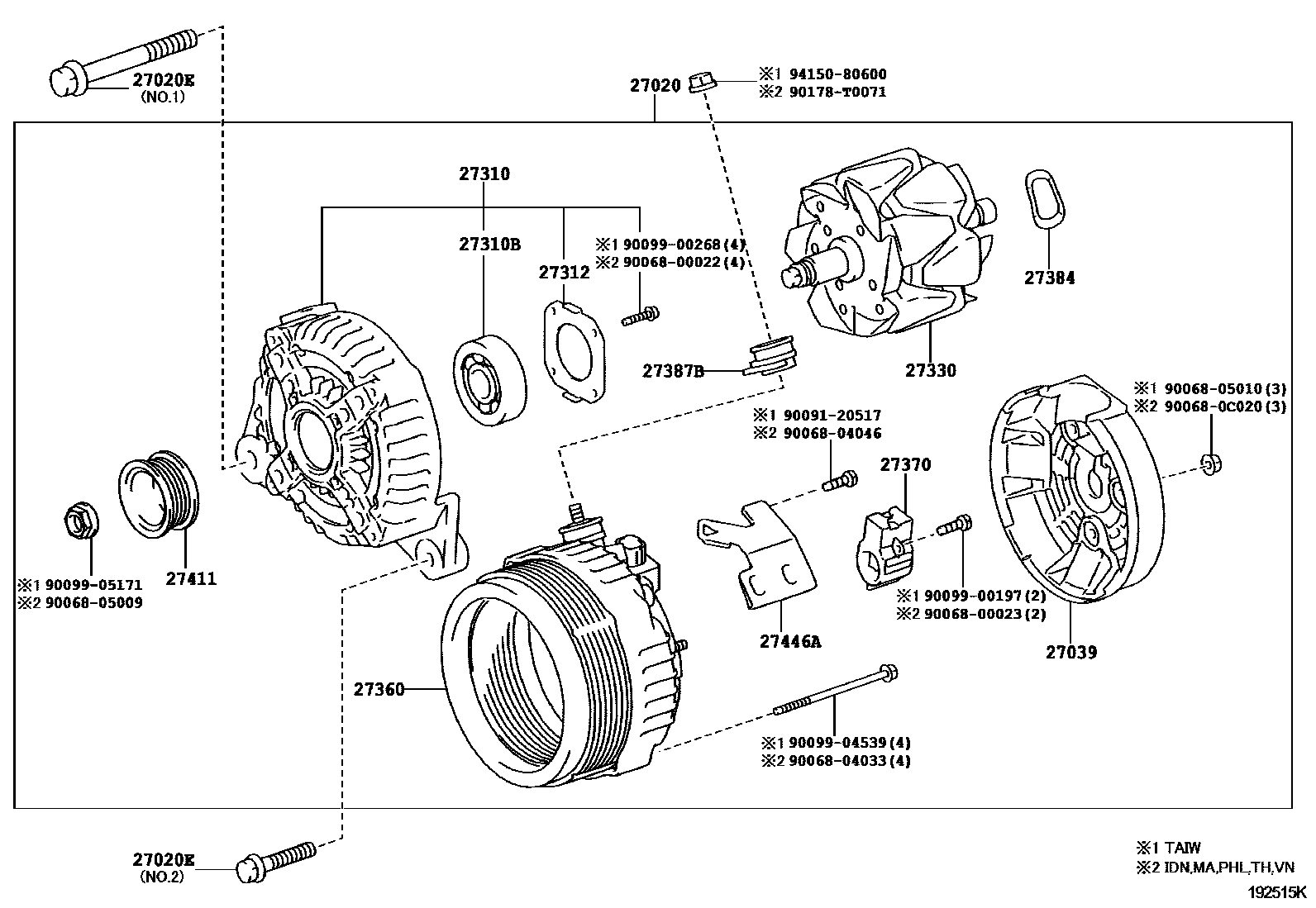

ALTERNATOR

0001 112V 80A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-0H090i1AZFE,2AZFE..ACV4#..TAIW200605-201011

12V 80A

sub27060-0H091

main27060-0H091i1AZFE,2AZFE..ACV4#..TAIW201012

12V 80A

main27060-0H120i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200608-201012

12V 80A

sub27060-0H121

main27060-0H121i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN201101

12V 80A

main27060-0P230i2GRFE..GSV40..TAIW200605-200702

12V 100A

sub27060-0P231

main27060-0P231i2GRFE..GSV40..TAIW200703-200902

12V 100A

sub27060-0P232

main27060-0P232i2GRFE..GSV40..TAIW200903

12V 100A

main27060-31080i2GRFE..GSV40..IDN,PHL,TH,VN200608-200706

12V 100A

sub27060-31081

main27060-31081i2GRFE..GSV40..IDN,PHL,TH200707-200908

12V 100A

sub27060-31082

main27060-31082i2GRFE..GSV40..IDN,PHL,TH,VN200908-200909

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-T0125i2GRFE..GSV40200605-201207

(L),NO.1

main91512-81085i1AZFE..ACV41..20G..TAIW200605-201207

NO.1

main91551-80840i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-201207

NO.2

main91552-81040i2GRFE..GSV40..VN200605-201207

(J),NO.1

main91552-81070i2GRFE..GSV40..VN200605-201207

NO.2

27039COVER, ALTERNATOR REAR END

main27039-0A110i2GRFE..GSV40..TAIW200805-200903

main27039-0C020i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200608-200909

main27039-0C020i1AZFE,2AZFE..ACV4#..TAIW200901-200903

###

main27039-0H080i1AZFE,2AZFE..ACV4#..TAIW200605-200903

sub27039-0C020

main27039-27060i2GRFE..GSV40..TAIW200605-200907

main27039-31390i2GRFE..GSV40..VN200907-200909

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0H080i1AZFE,2AZFE..ACV4#..TAIW200605-200903

###

sub27310-0H100

main27310-0H080i1AZFE,2AZFE..ACV4#..TAIW200903

sub27310-0H100

main27310-0H100i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN201004

main27310-0H120i1AZFE,2AZFE..ACV4#..TAIW200605-201004

main27310-0P050i2GRFE..GSV40..TAIW200805-200903

sub27310-31290

main27310-31290i2GRFE..GSV40..IDN,PHL,TH,VN200605-200909

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10029i1AZFE,2AZFE..ACV4#..(20,20E,20G,24G,24V)..(IDN,MA,PHL,TH,VN)200605-201004

main90068-10033i2GRFE..GSV40..TAIW200805-200903

main90068-10036i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN201004

main90099-10142i2GRFE..GSV40..TAIW200605-200703

sub90099-10223

main90099-10223i2GRFE..GSV40..TAIW200612-200909

27312PLATE, RETAINER

main27312-0C020i1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V;2AZFE,2GRFE..ACV40,GSV40..(24E,35Q,35V)..TAIW200608-200909

main27312-0C020i1AZFE,2AZFE..ACV4#..TAIW200605-200903

###

main27312-0H080i2GRFE..GSV40..TAIW200605-200903

main27312-72100i2GRFE..GSV40..TAIW200605-200909

27330ROTOR ASSY, ALTERNATOR

main27330-0F060i2GRFE..GSV40..TAIW200805-200903

main27330-0H080i1AZFE,2AZFE..ACV4#..TAIW200901-200903

###

sub27330-0M040

main27330-0H080i1AZFE,2AZFE..ACV4#..TAIW200903

sub27330-0M040

main27330-0H090i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN201004

main27330-0M040i1AZFE,2AZFE..ACV4#..TAIW200605-201004

main27330-30070i2GRFE..GSV40..IDN,PHL,TH,VN200605-200909

27360COIL ASSY, ALTERNATOR

main27360-0H080i1AZFE,2AZFE..ACV4#..TAIW200605-201012

sub27360-0H081

main27360-0H081i1AZFE,2AZFE..ACV4#..TAIW201012-201112

sub27360-0H091

main27360-0H090i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200608-201101

main27360-0H091i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN201101-201207

main27360-0P050i2GRFE..GSV40..TAIW200805-201112

main27360-31330i2GRFE..GSV40..TAIW200605-201207

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0C020i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200608-200909

main27370-31220i2GRFE..GSV40200605-200909

main27370-58460i1AZFE,2AZFE..ACV4#..TAIW200605-200903

27384WASHER

main27384-0C020i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200608-200909

main27384-16380i1AZFE,2AZFE..ACV4#..TAIW200605-200903

main27384-50030i2GRFE..GSV40200605-200909

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0C020i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200608-200909

main27387-0C020i1AZFE,2AZFE..ACV4#..TAIW200901-200903

###

main27387-0H110i1AZFE,2AZFE..ACV4#..TAIW200605-200903

main27387-20130i2GRFE..GSV40200605-200909

27411PULLEY, ALTERNATOR

main27411-0H080i1AZFE,2AZFE..ACV4#..TAIW200605-200903

sub27411-0H090

main27411-0H090i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200608-200909

27446ACLAMP

main27446-0H080i1AZFE,2AZFE..ACV4#..TAIW200605-200903

sub27446-28120

main27446-0H090i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200608-200909

9006800022

main90068-00022

9006800023

main90068-00023

9006804033

main90068-04033

9006804046

main90068-04046

9006805009

main90068-05009

9006805010

main90068-05010

900680C020

main90068-0C020

9009120517

main90091-20517

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905171

main90099-05171

90178T0071

main90178-T0071

9415080600

main94150-80600

27 parts on this diagram · 2 diagrams in section
