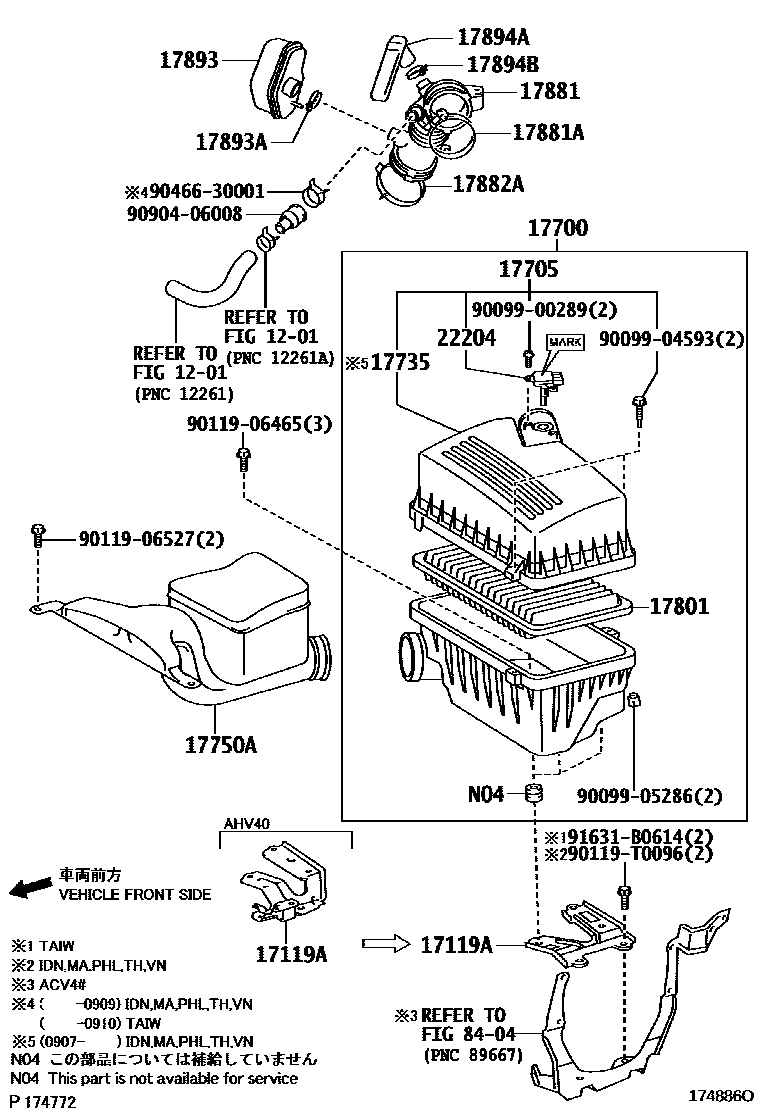

AIR CLEANER

0001 1 0002 1 0003 1

1201

17119ABRACKET, AIR CLEANER

main17119-0H030i2AZFE..ACV40..VN200608-200909

main17119-0H040i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

main17119-31050i2GRFE..GSV40..TAIW200605-200909

17700CLEANER ASSY, AIR

main17700-0H110i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200608-200703

sub17700-0H111

main17700-0H111i2AZFE..ACV40..VN200704-200909

main17700-0H120i1AZFE..ACV41..TAIW200605-200708

sub17700-0H121

main17700-0H121i1AZFE,2AZFE..ACV4#..TAIW200709-201103

sub17700-0H122

main17700-0H122i1AZFE,2AZFE..ACV4#..TAIW201104

main17700-0H140i2AZFXE..AHV40200907-201103

sub17700-0H141

main17700-0H141i2AZFXE..AHV40201104

main17700-31610i2GRFE..GSV40..TAIW200605-200709

sub17700-31740

main17700-31740i2GRFE..GSV40..IDN,PHL,TH200704-201103

sub17700-31741

main17700-31741i2GRFE..GSV40201104

17705CAP SUB-ASSY, AIR CLEANER

main17705-0H110i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200608-200703

sub17705-0H111

main17705-0H111i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200704-201103

sub17705-0H112

main17705-0H112i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN201104

main17705-0H120i1AZFE..ACV41..TAIW200605-200708

sub17705-0H121

main17705-0H121i1AZFE,2AZFE..ACV4#..TAIW200709-201103

sub17705-0H122

main17705-0H122i1AZFE,2AZFE..ACV4#..TAIW201104

main17705-28231i2AZFXE..AHV40200907-201103

sub17705-28232

main17705-28232i2AZFXE..AHV40201104

main17705-31160i2GRFE..GSV40..IDN,PHL,TH,VN200605-200709

sub17705-31270

main17705-31270i2GRFE..GSV40200704-201103

sub17705-31271

main17705-31271i2GRFE..GSV40201104

17735CAP, AIR CLEANER

main17735-0H090i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200907-201207

main17735-28090i2AZFXE..AHV40200907-201203

main17735-31120i2GRFE..GSV40200903-201207

17750AINLET ASSY, AIR CLEANER

main17750-0H070i2AZFE..ACV40..VN200608-200909

main17750-0H080i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

main17750-28040i2AZFXE..AHV40200907

main17750-31010i2GRFE..GSV40..TAIW200605-200903

main17752-0P020i2GRFE..GSV40..IDN,PHL,TH,VN200608-200909

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H020i2AZFXE..AHV40200907

main17801-0H030i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200909

MARK 17801-0H030

main17801-0H030i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903

main17801-28030i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200909

MARK 17801-28030

main17801-31120i2GRFE..GSV40..VN200605-200909

17881HOSE, AIR CLEANER, NO.1

main17881-0H100i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200608-200909

main17881-0H110i1AZFE..ACV41..20G..TAIW200605-200903

main17881-0P040i2GRFE..GSV40..VN200608-200909

main17881-31140i2GRFE..GSV40..TAIW200605-200903

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i1AZFE..ACV41..20G..TAIW200605-200909

main96111-10900i2GRFE..GSV40..VN200605-200909

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i1AZFE..ACV41..20G..TAIW200605-200909

17893RESONATOR, INTAKE AIR

main17893-0H070i2AZFE..ACV40..VN200608-200909

main17893-0H080i1AZFE,2AZFE..ACV4#..TAIW200605-200903

17893ACLAMP, HOSE

main96111-10430i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200909

17894ARESONATOR, INTAKE AIR, NO.2

main17894-0H070i2AZFE..ACV40..VN200608-200909

main17894-0H080i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10400i1AZFE..ACV41..20G..TAIW200605-200909

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i2AZFXE..AHV40201104-201203

MARK 22204-0H010

main22204-0P010i1AZFE,2AZFE..ACV4#..TAIW201104-201112

(L)

main22204-0P010i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN201104-201207

main22204-0P010i2AZFXE..AHV40201104-201203

MARK 22204-0P010

main22204-0T010i2GRFE..GSV40201104-201203

MARK 22204-0T010

sub22204-0P010

main22204-31010i2GRFE..GSV40..TAIW200605-200709

sub22204-31020

main22204-31020i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200704-201104

main22204-31020i1AZFE,2AZFE..ACV4#..TAIW201104-201112

(J)

main22204-31020i2GRFE..GSV40201104-201203

MARK 22204-31020

8404

9009900289

main90099-00289

9009904593

main90099-04593

9009905286

main90099-05286

9011906465

main90119-06465

9011906527

main90119-06527

90119T0096

main90119-T0096

9046630001

main90466-30001

9090406008

main90904-06008

91631B0614

main91631-B0614

25 parts on this diagram · 3 diagrams in section
