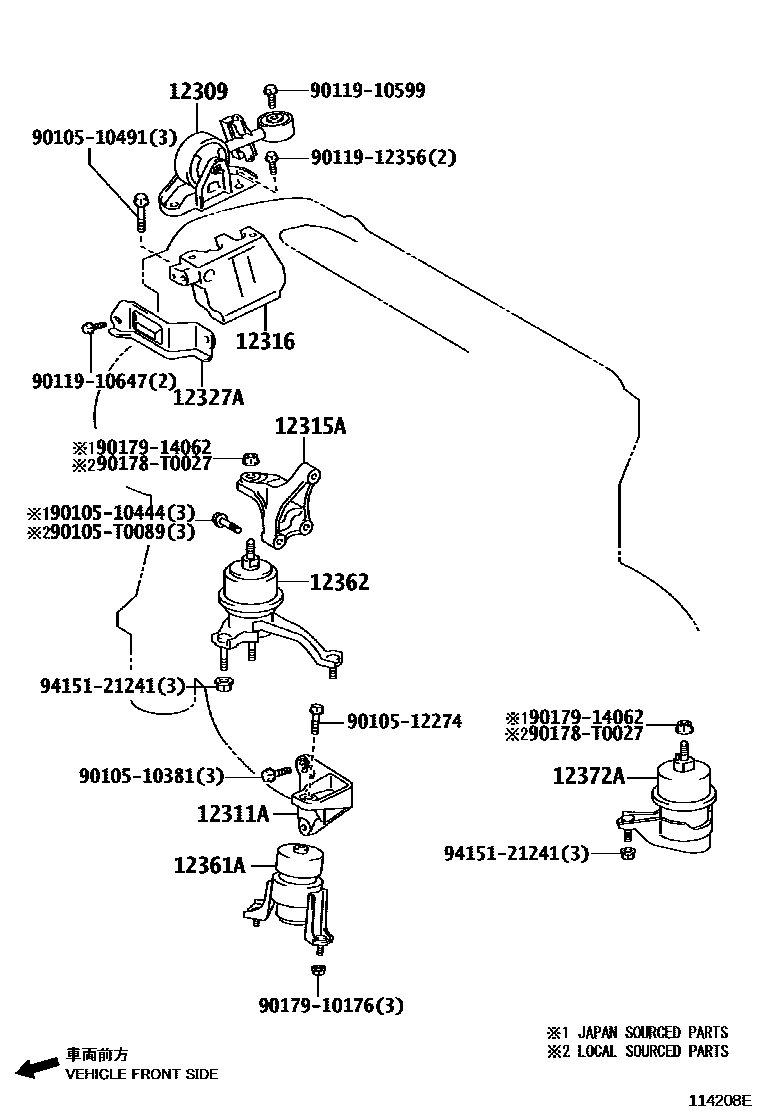

MOUNTING

0001 1 0002 1 0003 1

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-0H070i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-201010

sub12309-0H071

main12309-0H071i1AZFE,2AZ#..ACV4#,AHV40201011

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0H110i1AZFE,2AZFE..ACV4#..TAIW200605-200903

main12311-28210i1AZFE,2AZ#..ACV4#,AHV40..IDN,MA,PHL,TH,VN200608-200909

main12311-31060i2GRFE..GSV40..35V200605-200907

main12311-31080i2GRFE..GSV40..RHD200605-200909

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31091i2GRFE..GSV40..IDN,PHL,TH200605-200909

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0H050i1AZFE..ACV41..20E..TAIW200605-200903

main12315-0H090i1AZFE,2AZ#..ACV4#,AHV40..IDN,MA,PHL,TH,VN200608-200909

main12315-31100i2GRFE..GSV40..TAIW200605-200909

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-0H020i1AZFE..ACV41..20G..TAIW200605-201112

main12316-0H030i2AZFE..ACV40..VN200608-201111

main12316-0H030i1AZFE,2AZ#..ACV4#,AHV40..IDN,MA,PHL,TH,VN201111-201206

(L)

main12316-28061i1AZFE,2AZ#..ACV4#,AHV40..IDN,MA,PHL,TH,VN201111-201206

(J)

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0H020i1AZFE..ACV41..20G..TAIW200605-200903

main12327-0H030i2AZFE..ACV40..VN200608-200909

main12327-31010i2GRFE..GSV40..VN200605-200909

NO.2

sub12327-31120

main12327-31020i2GRFE..GSV40200605-200909

NO.1

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28220i1AZFE,2AZFE..ACV4#200605-200910

sub12361-28221

main12361-28221i1AZFE,2AZ#..ACV4#,AHV40200910

main12361-31170i2GRFE..GSV40..35Q..(IDN,TAIW,TH,VN)200605-200712

sub12361-31171

main12361-31171i2GRFE..GSV40..35Q..(IDN,TAIW,TH,VN)200801-200909

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-28190i2AZFE..ACV40..VN200605-200909

sub12362-36030

main12362-28200i2AZFXE..AHV40200907

main12362-31040i2GRFE..GSV40..IDN,PHL,TH200605-200909

main12362-36030i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0H040i1AZFE..ACV41..20G..TAIW200605-200903

main12372-0H170i2AZFE..ACV40..TAIW200709-200903

main12372-28020i1AZFE..ACV41..RHD200608-200907

main12372-28200i2AZFE..ACV40..IDN,MA,PHL,TH200608-200909

main12372-28250i2AZFXE..AHV40200907

main12372-31010i2GRFE..GSV40200605-200909

9010510381

main90105-10381

9010510444

main90105-10444

9010510491

main90105-10491

9010512274

main90105-12274

90105T0089

main90105-T0089

9011910599

main90119-10599

9011910647

main90119-10647

9011912356

main90119-12356

90178T0027

main90178-T0027

9017910176

main90179-10176

9017914062

main90179-14062

9415121241

main94151-21241

21 parts on this diagram · 3 diagrams in section
