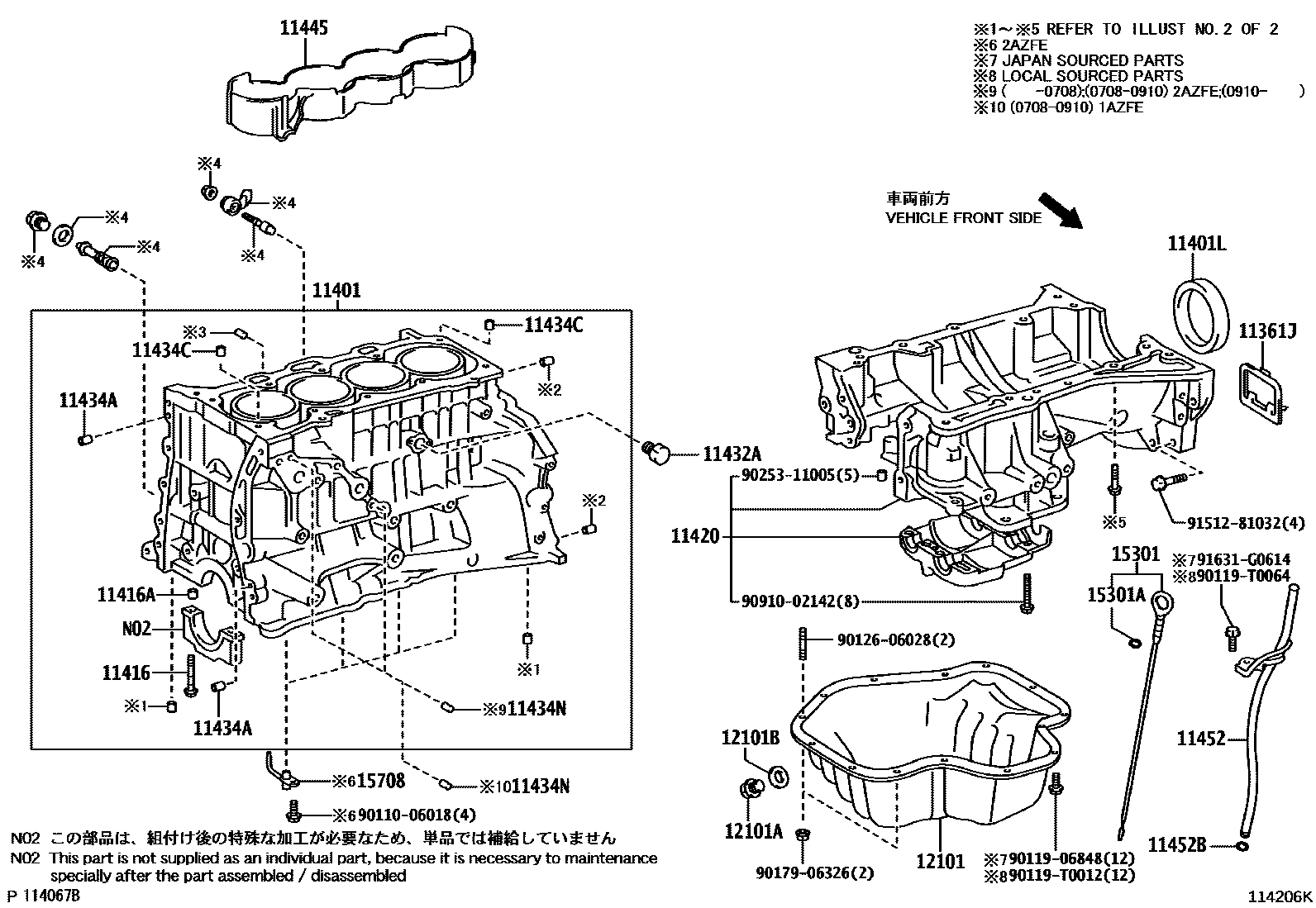

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200909

11401BLOCK SUB-ASSY, CYLINDER

main11401-80718i2GRFE..GSV40200605-200804

sub11401-80774

main11401-80774i2GRFE..GSV40200805-201207

sub11401-80825

main11410-09220i2AZFE..ACV40200608-200708

sub11410-09221

sub11410-09350

main11410-09221i2AZFE..ACV40..24G,24V;2AZFE..ACV40..24E..TAIW200708-201207

sub11410-09222

main11410-09240i1AZFE..ACV41200605-200708

sub11410-09260

main11410-09260i1AZFE..ACV41200708-200910

sub11410-09261

main11410-09261i1AZFE..ACV41200910-201203

sub11410-09262

main11410-29345i2AZFXE..AHV40200907-201203

sub11410-29346

11401LSEAL, ENGINE REAR OIL

main90080-31082i1AZFE..ACV41..20G..TAIW200605-201111

(L)

sub90311-T0040

main90311-89003i2AZFE..ACV40..VN200605-201111

(J)

sub90311-89007

main90311-89003i2AZFXE..AHV40200907-201203

sub90311-89007

main90311-T0040i1AZFE,2AZFE..ACV4#201111-201207

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-201207

sub90910-02206

main90910-02154i2GRFE..GSV40200605-201207

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-201207

11420CRANKCASE ASSY, STIFFENING

main11420-0H050i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200605-201010

(L)

sub11420-0H051

main11420-0H051i1AZFE,2AZFE..ACV4#201010

(L)

main11420-28020i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200605-201010

(J)

sub11420-28021

main11420-28021i2AZFXE..AHV40201010

(J)

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1AZFE..ACV41..20G..TAIW200605-201207

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2GRFE..GSV40..VN200605-200909

L=12,OD=4.0

main90250-08120i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200605-200909

L=18,OD=8

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i2GRFE..GSV40..VN200605-200909

L=18,OD=8

main90253-14003i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200605-200909

L=12,OD=14

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i1AZFE..ACV41..20G..TAIW200605-200909

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0H020i1AZFE..ACV41..20G..TAIW200605-200909

main11445-28020i2AZFXE..AHV40200907

11452GUIDE, OIL LEVEL GAGE

main11452-0H060i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200608-201207

(L)

main11452-0H080i1AZFE..ACV41..20G..TAIW200605-201112

(L)

main11452-28040i2AZFXE..AHV40200907-201203

main11452-28060i2AZFE..ACV40..VN200605-201207

(J)

main11452-31060i2GRFE..GSV40..IDN,PHL,TH200605-200909

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFE..GSV40..VN200605-200909

main96721-19010i2AZFE..ACV40..VN200605-200909

12101PAN SUB-ASSY, OIL

main12101-0H070i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

(L)

main12101-0H070i1AZFE,2AZFE..ACV4#..TAIW200903

main12101-0H080i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200907

main12101-0H080i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200608-200909

(L)

main12101-28060i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200909

(J)

main12101-28060i2AZFXE..AHV40200907

main12101-31121i2GRFE..GSV40..IDN,PHL,TH200605-200909

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1AZFE..ACV41..20G..TAIW200605-200909

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2GRFE..GSV40..TAIW200605-200909

15301GAGE SUB-ASSY, OIL LEVEL

main15301-28030i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-201207

sub15301-28031

main15301-31100i2GRFE..GSV40200605-200909

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2AZFE..ACV40..VN200605-201207

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-28010i2AZFE..ACV40200608-200809

sub15708-28011

main15708-28011i2AZFE..ACV40..24E..TAIW;2AZ#..ACV40,AHV40..24G,24V,HBD200809-200909

main15708-31030i2GRFE..GSV40..VN200605-200909

9011006018

main90110-06018

9011906848

main90119-06848

90119T0012

main90119-T0012

90119T0064

main90119-T0064

9012606028

main90126-06028

9017906326

main90179-06326

9025311005

main90253-11005

9091002142

main90910-02142

9151281032

main91512-81032

91631G0614

main91631-G0614

29 parts on this diagram · 4 diagrams in section
