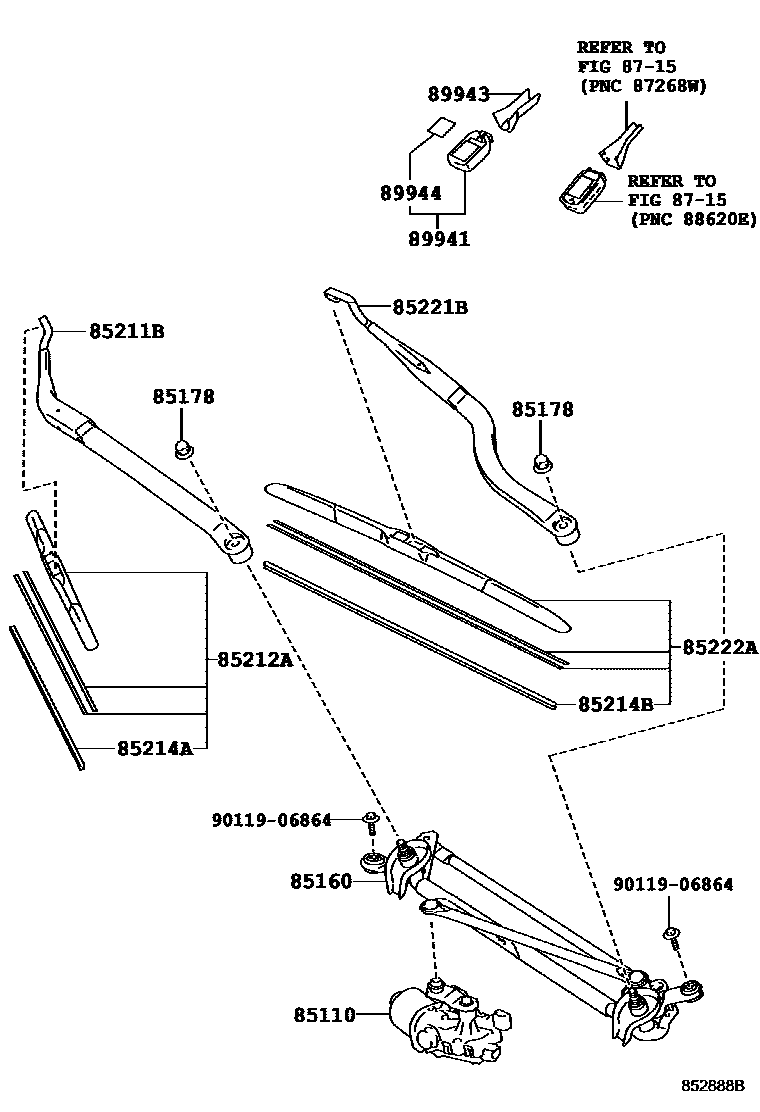

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33370iASV60,AVV60,GSV60..LHD201206-201407

sub85110-33390¥25,300

main85110-33380iASV60,AVV60,GSV60..RHD¥25,300201308-201507

main85110-33390iASV6#,AVV60,GSV60..LHD¥25,300201408-201507

85160LINK ASSY, WINDSHIELD WIPER

main85150-33300iASV60,AVV60,GSV60..LHD201206-201507

main85150-33310iASV60,AVV60,GSV60..RHD201308-201507

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iASV6#,AVV60,GSV60¥110201206-201507

85211BARM, FRONT WIPER, RH

main85211-33310iASV60,AVV60,GSV60..RHD201308-201507

main85211-33370iASV6#,AVV60,GSV60..LHD201206-201507

85212ABLADE, FR WIPER, RH

main85212-33270iASV6#,AVV60,GSV60..LHD¥2,180201206-201507

main85212-33290iASV60,AVV60,GSV60..RHD201308-201507

85214ARUBBER, WIPER, RH

main85214-33180iASV60,AVV60,GSV60..LHD¥800201206-201507

main85214-52110iASV60,AVV60,GSV60..RHD¥900201308-201507

85214BRUBBER, WIPER, LH

main85214-33180iASV60,AVV60,GSV60..RHD¥800201308-201507

main85214-52110iASV60,AVV60,GSV60..LHD¥900201211-201507

main85214-68020iASV60,AVV60,GSV60¥900201206-201210

sub85214-52110¥900

85221BARM, FRONT WIPER, LH

main85221-33300iASV60,AVV60,GSV60..RHD201308-201507

main85221-33370iASV60,GSV60..GCC201206-201507

main85221-33380iASV6#,AVV60..CHI201206-201507

85222ABLADE, FR WIPER, LH

main85222-33280iASV60,AVV60,GSV60..LHD¥4,290201206-201507

main85222-33290iASV60,AVV60,GSV60..RHD201308-201507

8715

89941SENSOR, RAIN

main89941-52010iAVV60..ARL¥12,500201708

SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITHOUT

89943COVER, RAIN SENSOR

main89943-33050iAVV60,GSV60..ARL,CHI¥1,400201708

SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITHOUT

89944TAPE, RAIN SENSOR

main89944-42010iAVV60,GSV60..ARL,CHI¥1,490201708

SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITHOUT

9011906864

main90119-06864¥80

14 parts on this diagram · 1 diagram in section
