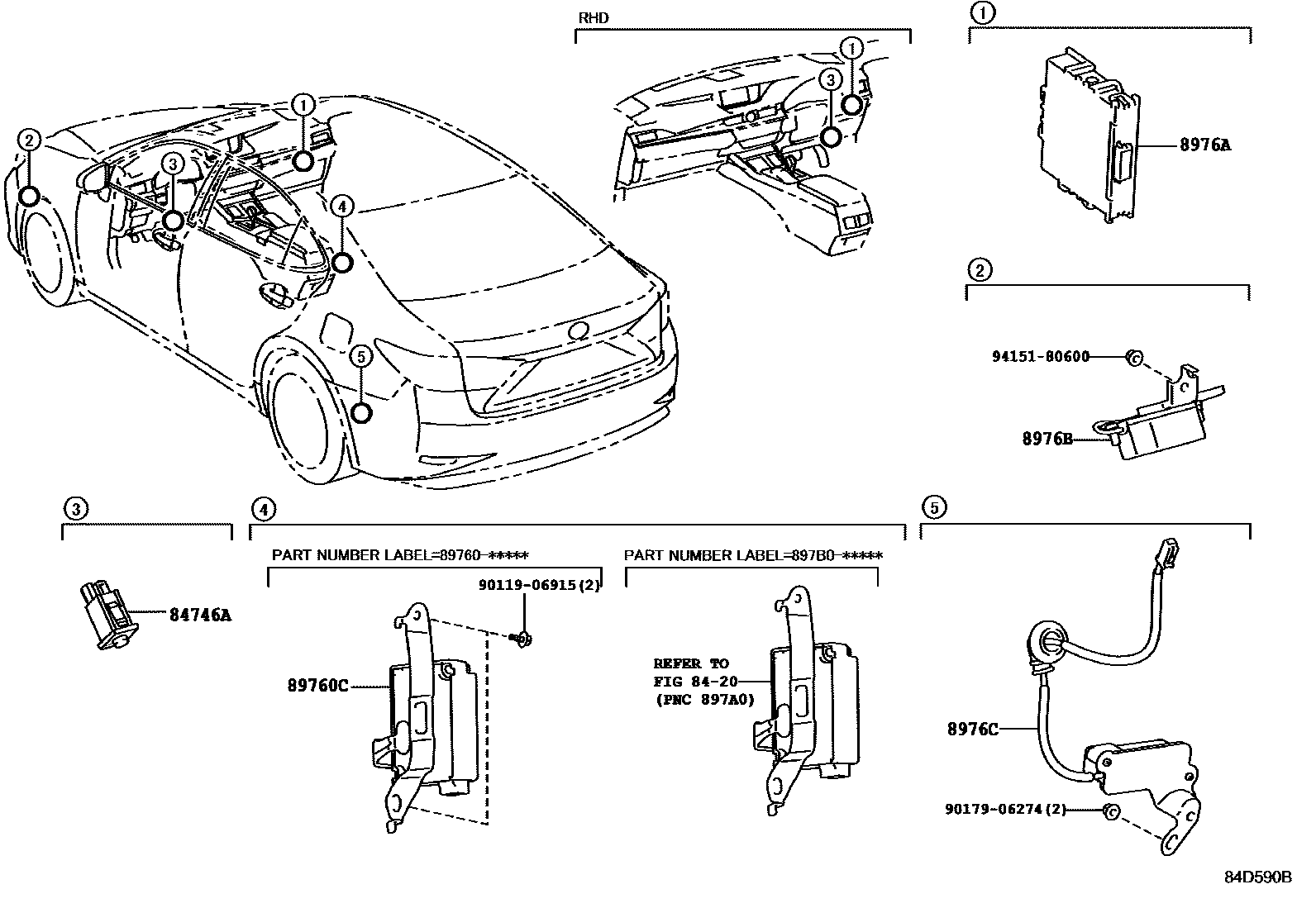

TIRE PRESSURE WARNING SYSTEM

8420

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-48010iASV6#,AVV60,GSV60201206-201507

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-33060iASV60,GSV60..GCC201206-201308

main89760-33061iGSV60..GCC;ASV60..ARL,GCC201308-201507

SOUTH AFRICA SPEC

main89760-33061iASV60,AVV60..GEN201308-201507

MALAYSIA SPEC

main89760-33061iASV60,AVV60..GEN201308-201507

SINGAPORE SPEC

main89760-33100iAVV60,GSV60..ARL201308-201507

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-33010iASV60,AVV60,GSV60201206-201308

sub8976A-33030

main8976A-33011iASV60,AVV60..GEN201308-201505

SOUTH AFRICA SPEC

sub8976A-33030

main8976A-33011iAVV60,GSV60..LHD;ASV60..ARL,CHI,GCC201308-201505

MALAYSIA SPEC

sub8976A-33030

main8976A-33011iAVV60,GSV60..LHD;ASV60..ARL,CHI,GCC201308-201505

SINGAPORE SPEC

sub8976A-33030

main8976A-33030iAVV60,GSV60..LHD;ASV60..ARL,CHI,GCC201506-201705

MALAYSIA SPEC

sub8976A-33032

main8976A-33030iAVV60,GSV60..LHD;ASV60..ARL,CHI,GCC201506-201705

SINGAPORE SPEC

sub8976A-33032

main8976A-33030iAVV60,GSV60..LHD;ASV60..ARL,CHI,GCC201506-201705

SOUTH AFRICA SPEC

sub8976A-33032

main8976A-33030iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201507-201705

THAILAND SPEC

sub8976A-33032

main8976A-33031iAVV60..GEN201706

SOUTH AFRICA SPEC

sub8976A-33032

main8976A-33031iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201706

MALAYSIA SPEC

sub8976A-33032

main8976A-33031iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201706

SINGAPORE SPEC

sub8976A-33032

main8976A-33031iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201706

THAILAND SPEC

sub8976A-33032

main8976A-33031iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201706

INDIA SPEC

sub8976A-33032

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-33010iAVV60,GSV60..LHD;ASV60..ARL,CHI,GCC201206-201507

sub8976B-33011

main8976B-33010iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201507-201607

MALAYSIA SPEC

sub8976B-33011

main8976B-33010iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201507-201607

SINGAPORE SPEC

sub8976B-33011

main8976B-33010iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201507-201607

SOUTH AFRICA SPEC

sub8976B-33011

main8976B-33010iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201507-201607

THAILAND SPEC

sub8976B-33011

main8976B-33011iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201608

MALAYSIA SPEC

main8976B-33011iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201608

SINGAPORE SPEC

main8976B-33011iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201608

SOUTH AFRICA SPEC

main8976B-33011iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201608

THAILAND SPEC

main8976B-33011iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201608

INDIA SPEC

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-33030iAVV60,GSV60..LHD;ASV60..ARL,CHI,GCC201206-201507

sub8976C-33031

main8976C-33030iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201507-201606

MALAYSIA SPEC

sub8976C-33031

main8976C-33030iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201507-201606

SINGAPORE SPEC

sub8976C-33031

main8976C-33030iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201507-201606

SOUTH AFRICA SPEC

sub8976C-33031

main8976C-33030iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201507-201606

THAILAND SPEC

sub8976C-33031

main8976C-33031iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201607

MALAYSIA SPEC

main8976C-33031iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201607

SINGAPORE SPEC

main8976C-33031iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201607

SOUTH AFRICA SPEC

main8976C-33031iAVV60,GSV60..LHD;ASV6#..ARL,CHI,GCC201607

THAILAND SPEC

9011906915

main90119-06915

9017906274

main90179-06274

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
