CLEARANCE & BACK SONAR

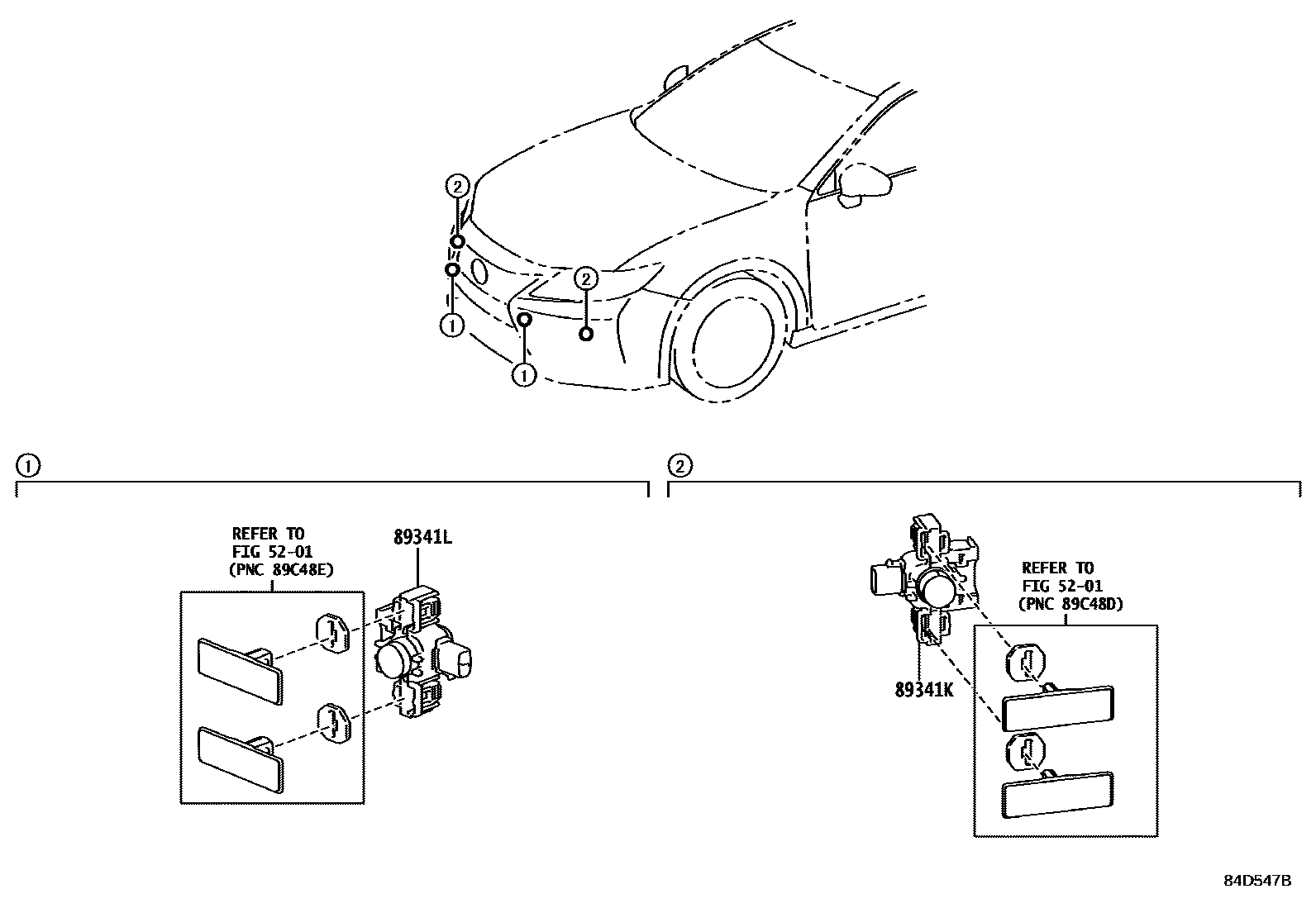

Parts diagram
5201
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-33200-A0×2i201206-201507
WHITE PEARL CS.,077
main89341-33200-B0×2i201206-201507
MERCURY GRAY MC.,1H9
main89341-33200-B1×2i201206-201507
PLATINUM SILVER ME.,1J4
main89341-33200-B2×2i201408-201507
SONIC TITANIUM,1J7
main89341-33200-C0×2i201206-201507
BLACK,212
main89341-33200-C1×2i201206-201507
STARLIGHT BLACK GF.,217
main89341-33200-D0×2i201206-201507
RED MC.CS.,3R1
main89341-33200-E0×2i201206-201507
SLEEK ECRU ME.,4U7
main89341-33200-E1×2i201206-201507
FIRE AGATE M.M.,4V3
main89341-33200-J0×2i201206-201408
SILVERY BLUE ME.,8U9
main89341-33200-J1×2i201206-201507
LAPIS LAZULI MC.,8V3
main89341-78010-A0×2i201507
SONIC QUARTZ,085
main89341-78010-B0×2i201507
MERCURY GRAY MC.,1H9
main89341-78010-B1×2i201507
PLATINUM SILVER ME.,1J4
main89341-78010-B2×2i201507
SONIC TITANIUM,1J7
main89341-78010-C1×2i201507
BLACK,212
main89341-78010-C3×2i201507
GRAPHITE BLACK GF.,223
main89341-78010-D0×2i201507
RED MC.CS.,3R1
main89341-78010-E1×2i201507
SLEEK ECRU ME.,4U7
main89341-78010-E2×2i201507
AMBER CS.,4X2
main89341-78010-J2×2i201507
DEEP BLUE MC.,8X5
main89341-33200-A1×2i201408-201507
THE CRAFTED LINE,WHITE NOVA GF.,2MH
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-33200-A0×2i201206-201507
WHITE PEARL CS.,077
main89341-33200-B0×2i201206-201507
MERCURY GRAY MC.,1H9
main89341-33200-B1×2i201206-201507
PLATINUM SILVER ME.,1J4
main89341-33200-B2×2i201408-201507
SONIC TITANIUM,1J7
main89341-33200-C0×2i201206-201507
BLACK,212
main89341-33200-C1×2i201206-201507
STARLIGHT BLACK GF.,217
main89341-33200-D0×2i201206-201507
RED MC.CS.,3R1
main89341-33200-E0×2i201206-201507
SLEEK ECRU ME.,4U7
main89341-33200-E1×2i201206-201507
FIRE AGATE M.M.,4V3
main89341-33200-J0×2i201206-201408
SILVERY BLUE ME.,8U9
main89341-33200-J1×2i201206-201507
LAPIS LAZULI MC.,8V3
main89341-78010-C1×2i201507
BLACK

3 parts on this diagram · 3 diagrams in section
