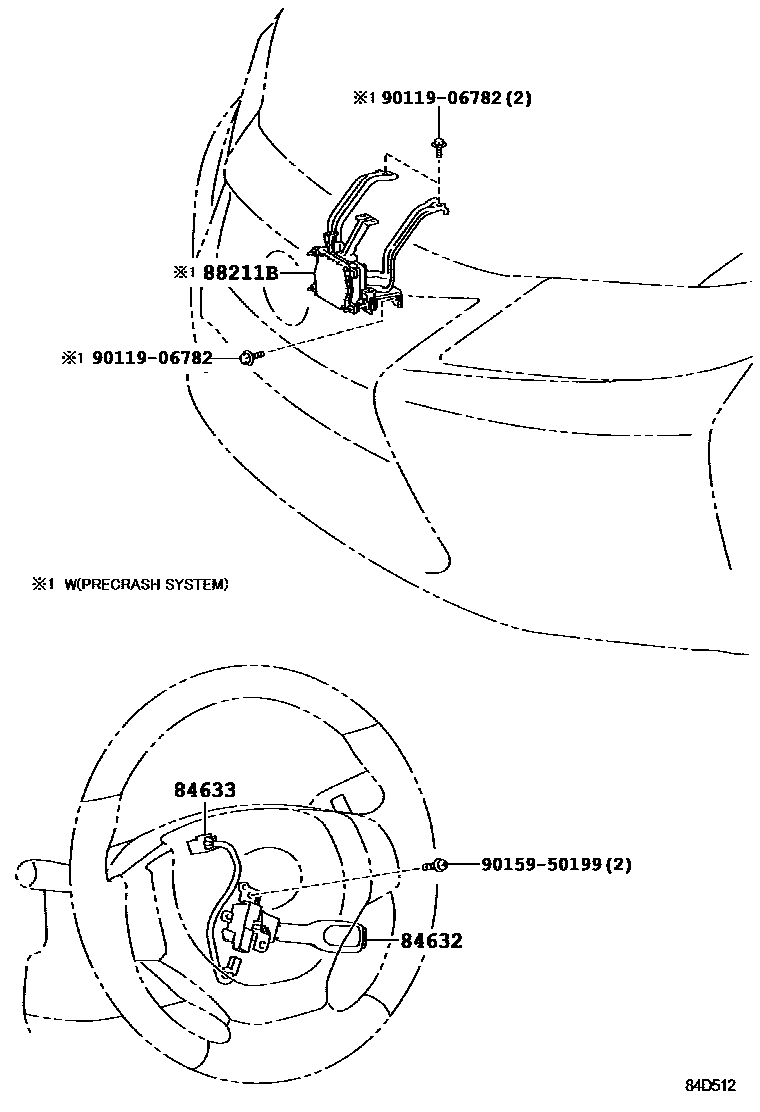

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-30010iAVV60..ARL201708

PRE-COLLISION SYSTEM-WITHOUT

main84632-30010iASV60,AVV60,GSV60201206-201708

main84632-30020iAVV60,GSV60..ARL,CHI,GCC201206-201507

PRE-COLLISION SYSTEM-WITH

main84632-48010iAVV60,GSV60..ARL,CHI201708

main84632-48010iAVV60,GSV60..ARL,CHI201507-201708

PRE-COLLISION SYSTEM-WITH

84633WIRE, CRUISE CONTROL SWITCH

main84633-76010iASV60,AVV60,GSV60201206-201507

main84633-76020iAVV60,GSV60..ARL,CHI,GCC201206-201507

PRE-COLLISION SYSTEM-WITH

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-33080iAVV60,GSV60..ARL,CHI,GCC201206-201406

PRE-COLLISION SYSTEM-WITH

sub88210-33081

main88210-33081iAVV60,GSV60201407-201507

PRE-COLLISION SYSTEM-WITH

sub88210-33082

main88210-47080iAVV60..ARL201708

SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITHOUT

sub88210-48121

main88210-47080iAVV60,GSV60..ARL,CHI201507-201708

PRE-COLLISION SYSTEM-WITH

sub88210-48121

main88210-47080iAVV60..GEN201507

THAILAND SPEC&PRE-COLLISION SYSTEM-WITH

sub88210-48121

9011906782

main90119-06782

9015950199

main90159-50199

5 parts on this diagram · 2 diagrams in section
