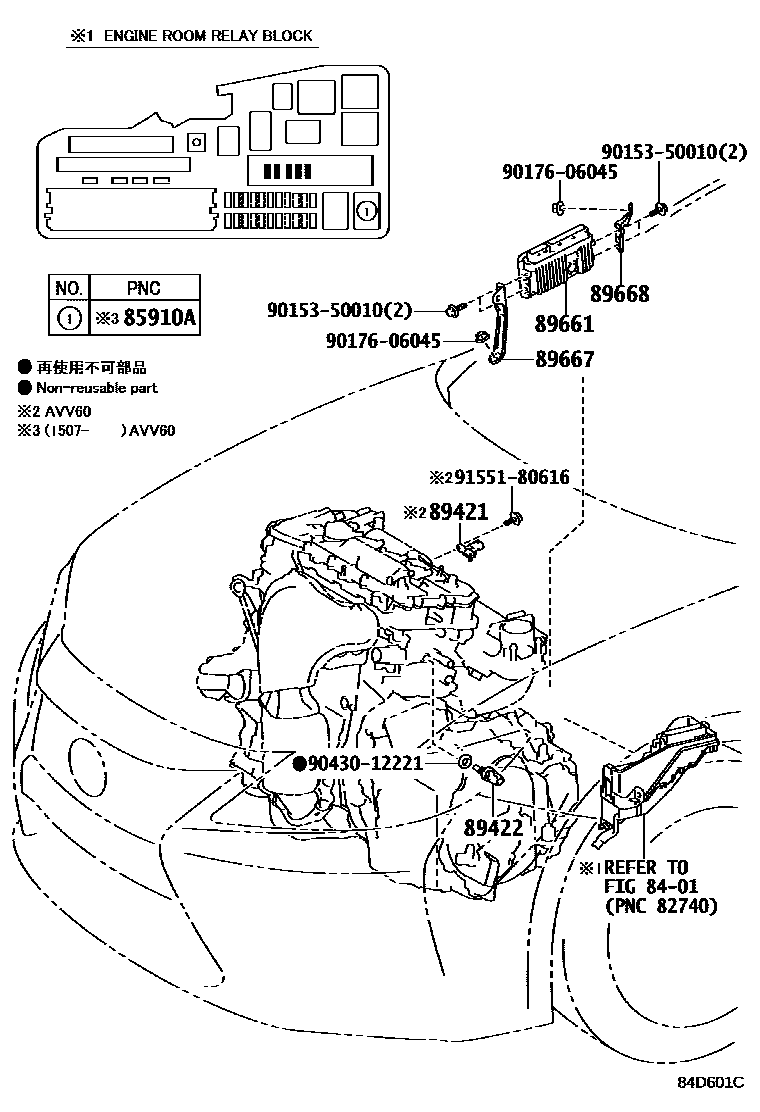

ELECTRONIC FUEL INJECTION SYSTEM
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
sub89661-33K41
BEIJING SPEC
TAIWAN SPEC
sub89661-33L61
INDONESIA SPEC
BRUNEI SPEC
MALAYSIA SPEC
TAIWAN SPEC
BEIJING SPEC
BRUNEI SPEC
MALAYSIA SPEC
INDONESIA SPEC
BEIJING SPEC
BRUNEI SPEC
MALAYSIA SPEC
INDONESIA SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9015350010
main90153-50010
9017606045
main90176-06045
9043012221
main90430-12221
9155180616
main91551-80616
11 parts on this diagram · 3 diagrams in section
