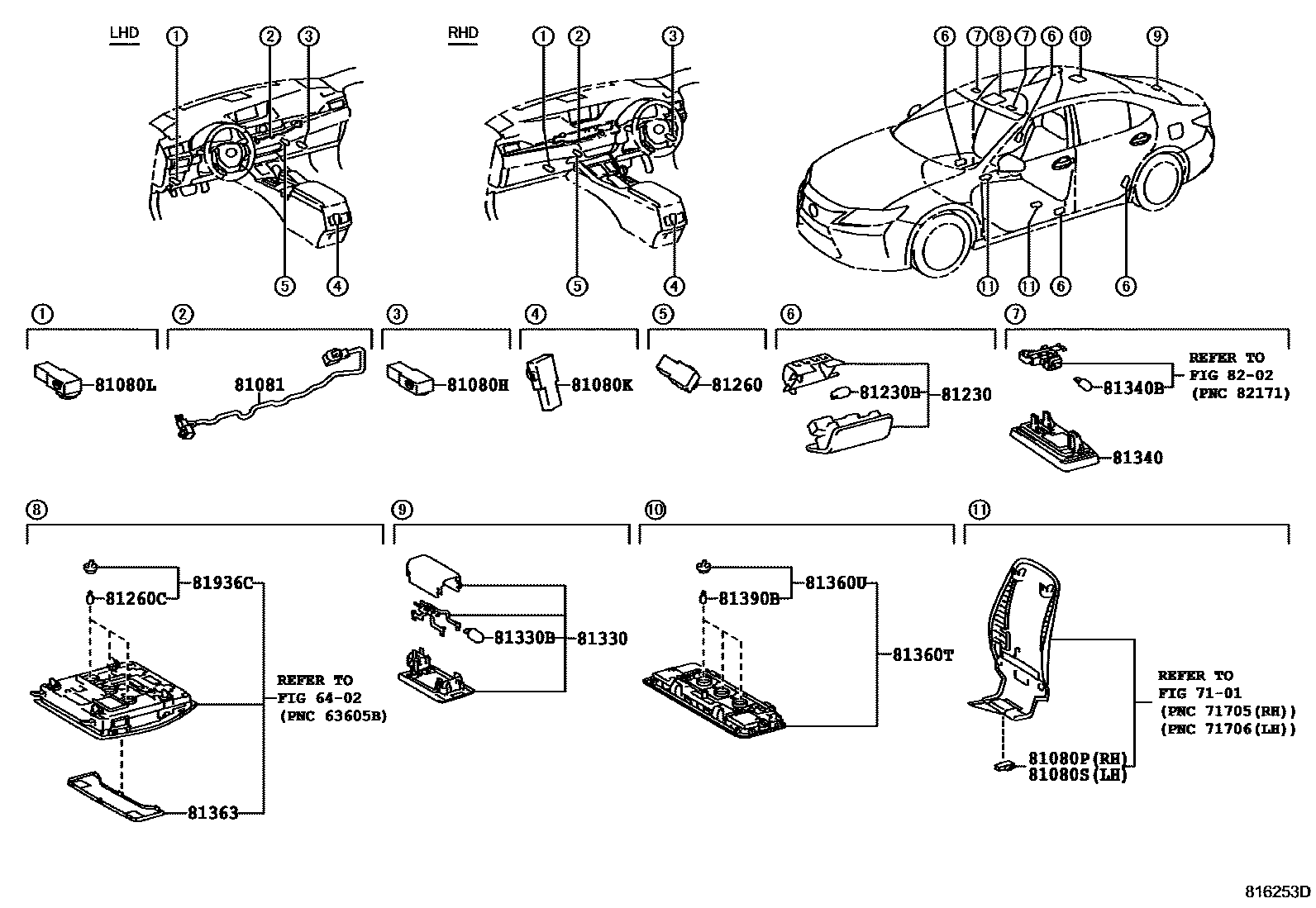

INTERIOR LAMP
6402
7101
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
TAIWAN SPEC&G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
TAIWAN SPEC&G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DR
SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
C PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&H PACKAGE&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
TAIWAN SPEC&G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DR
TAIWAN SPEC&G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
CHINA ML PACKAGE
DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP)
DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP)
81230BBULB(FOR COURTESY LAMP)
12V 5W
81260CBULB(FOR MAP LAMP)
12V 8W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
ECRU,TRIM0#
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#,3#
ECRU,TRIM0#,5#
ECRU,TRIM0#,41,5#
MOON STONE,TRIM1#,2#
MOON STONE,TRIM1#,2#,40
81360UBULB, SPOT LAMP
81363LENS, ROOM LAMP, OUTER
81390BBULB, SPOT LAMP
12V 8W
81936CBULB ASSY
8202
22 parts on this diagram · 2 diagrams in section
