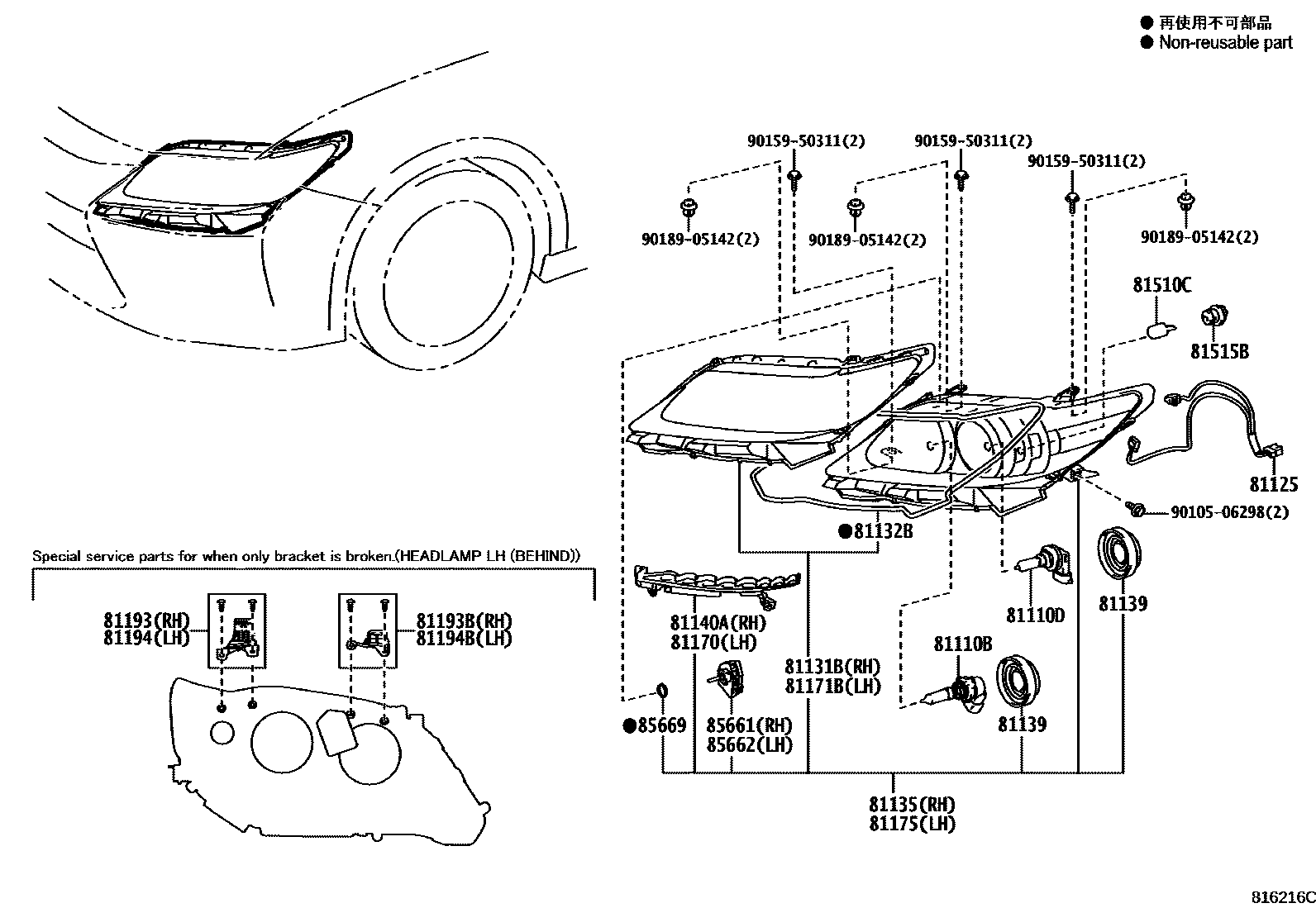

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1HALOGEN HEADLAMP 0003 1DISCHARGE HEADLAMP 0004 1DISCHARGE HEADLAMP 0005 1PHILIPPINE OR VIETNAM SPEC 0006 1HIGH BEAM(HALOGEN) 0007 1HIGH BEAM(HALOGEN) 0008 1HIGH BEAM(LED) 0009 1HIGH BEAM(LED)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iASV60,AVV60,GSV60201206-201507

12V65W(SAE),60W(ECE)

main90981-13084iAVV60..ARL,CHI;ASV6#,GSV60..ARL,CHI,GEN201507

12V 65W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iAVV60,GSV60..ARL;ASV60..ARL,CHI,GEN201206-201507

12V 55W,HALOGEN

81125CORD, HEADLAMP

main81125-33A50iASV60,GSV60..GCC201507

VIETNAM SPEC

main81125-33A50iGSV60..GCC201507

PHILIPPINE SPEC

main81125-33B40iASV60,AVV60,GSV60201206-201507

main81125-33B50iGSV60..GCC201206-201507

PHILIPPINE SPEC

main81125-33C80iASV6#,AVV60,GSV60201507

81131BHEAD LAMP LENS, RH

main81131-33B50iGSV60..GCC201206-201507

PHILIPPINE SPEC

main81131-33B60iASV60,GSV60..GCC201206-201507

main81131-33C30iAVV60..ARL;ASV60,GSV60..RHD201308-201507

main81131-33C40iASV60..GEN201308-201507

HEAD LAMP-DISCHARGE & *DRL

main81131-33C40iASV60,AVV60,GSV60..ARL201308-201507

D PACKAGE

main81131-33C90iASV60,GSV60..GCC201507-201806

main81131-33D00iAVV60..ARL;ASV60,GSV60..RHD201507-201806

main81131-33D10iAVV60..GEN201507-201806

D PACKAGE

81132BGASKET, HEADLAMP LENS

main81132-50590iASV60,AVV60,GSV60..ARL,GCC,GEN201206-201806

81135UNIT ASSY, HEADLAMP, RH

main81105-33B40iASV60..CHI201206-201507

main81105-33C30iAVV60..ARL;ASV60,GSV60..RHD201308-201507

main81105-33C80iASV6#,AVV60..CHI201507

main81105-33C90iAVV60..CHI201507-201708

HEAD LAMP-HI(LED)

main81105-33C90iASV60,GSV60..GCC201507-201708

C PACKAGE

main81105-33C90iASV60,GSV60..GCC201507-201708

D PACKAGE

main81105-33C90iASV60,GSV60..GCC201507-201708

HEAD LAMP-HI(LED) & WITH(*AHB)

main81105-33C91iASV6#..CHI201708

HEAD LAMP-HI(LED) & WITH(*AHB)

main81105-33C91iASV6#..CHI201708

D PACKAGE

main81105-33C91iASV6#..CHI201708

HEAD LAMP-HI(LED)

main81105-33C91iASV6#..CHI201708

C PACKAGE

main81105-33D00iAVV60..ARL;ASV60,GSV60..RHD201507

main81105-33D10iAVV60..ARL;ASV60,GSV60..RHD201507-201708

D PACKAGE

main81105-33D11iAVV60..ARL;ASV60,GSV60..RHD201708

D PACKAGE

main81140-33A60iGSV60..GCC201507-201708

VIETNAM SPEC

main81140-33A60iGSV60..GCC201507-201708

PHILIPPINE SPEC

main81140-33A61iGSV60..GCC201708

VIETNAM SPEC

main81140-33A61iGSV60..GCC201708

PHILIPPINE SPEC

main81145-33B50iGSV60..GCC201206-201507

PHILIPPINE SPEC

main81145-33B60iASV60..CHI201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main81145-33B60iASV60..CHI201206-201507

HEAD LAMP-DISCHARGE & *DRL

main81145-33B60iASV60..CHI201306-201308

CHINA ML PACKAGE

main81145-33C40iAVV60..GEN201308-201507

HEAD LAMP-DISCHARGE & *DRL

main81145-33C40iAVV60..GEN201308-201507

D PACKAGE

81139COVER, HEADLAMP SOCKET

main90075-65006iASV60..CHI,GEN201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main90075-65006iASV60..GCC;AVV60,GSV60..CHI,GCC,GEN201206-201507

HEAD LAMP-DISCHARGE & *DRL

main90075-65006iASV60,AVV60,GSV60..ARL201308-201507

D PACKAGE

81140AUNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, RH

main81140-33B30iGSV60..GCC201206-201507

PHILIPPINE SPEC

main81140-33B40iASV60,AVV60,GSV60..ARL,GCC,GEN201206-201507

81170UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, LH

main81170-33B30iGSV60..GCC201206-201507

PHILIPPINE SPEC

main81170-33B40iASV60,AVV60,GSV60..ARL,GCC,GEN201206-201507

81171BHEAD LAMP LENS, LH

main81171-33A90iASV60,GSV60..GCC201507-201806

main81171-33B00iAVV60..ARL;ASV60,GSV60..RHD201507-201806

main81171-33B50iGSV60..GCC201206-201507

PHILIPPINE SPEC

main81171-33B60iASV60,GSV60..GCC201206-201507

main81171-33B80iAVV60..ARL;ASV60,GSV60..RHD201507-201806

D PACKAGE

main81171-33C30iAVV60..ARL;ASV60,GSV60..RHD201308-201507

main81171-33C40iASV60..GEN201308-201507

HEAD LAMP-DISCHARGE & *DRL

main81171-33C40iAVV60..GEN201308-201507

D PACKAGE

81175UNIT ASSY, HEADLAMP, LH

main81070-33A60iGSV60..GCC201507-201708

PHILIPPINE SPEC

main81070-33A60iASV60,GSV60..GCC201507-201708

VIETNAM SPEC

main81070-33A61iASV60,GSV60..GCC201708

VIETNAM SPEC

main81070-33A61iGSV60..GCC201708

PHILIPPINE SPEC

main81106-33A80iASV6#,AVV60..CHI201507

main81106-33A90iAVV60..CHI201507-201708

D PACKAGE

main81106-33A90iAVV60..CHI201507-201708

HEAD LAMP-HI(LED)

main81106-33A90iAVV60..CHI201507-201708

HEAD LAMP-HI(LED) & WITH(*AHB)

main81106-33A90iASV6#..CHI201507-201708

C PACKAGE

main81106-33A91iAVV60..CHI201708

D PACKAGE

main81106-33A91iASV60,GSV60..GCC201708

C PACKAGE

main81106-33A91iASV60,GSV60..GCC201708

HEAD LAMP-HI(LED)

main81106-33A91iASV60,GSV60..GCC201708

HEAD LAMP-HI(LED) & WITH(*AHB)

main81106-33B00iAVV60..ARL;ASV60,GSV60..RHD201507

main81106-33B40iASV60..CHI201206-201507

main81106-33B80iAVV60..GEN201507-201708

D PACKAGE

main81106-33B81iAVV60..GEN201708

D PACKAGE

main81106-33C30iAVV60..ARL;ASV60,GSV60..RHD201308-201507

main81185-33B50iGSV60..GCC201206-201507

PHILIPPINE SPEC

main81185-33B60iASV60..GCC;AVV60,GSV60..LHD201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main81185-33B60iASV60..GCC;AVV60,GSV60..LHD201206-201507

HEAD LAMP-DISCHARGE & *DRL

main81185-33B60iASV60..CHI201306-201308

CHINA ML PACKAGE

main81185-33C40iASV60..GEN201308-201507

D PACKAGE

main81185-33C40iASV60..GEN201308-201507

HEAD LAMP-DISCHARGE & *DRL

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-33080iASV60,AVV60,GSV60201206-201507

main81193-33100iASV6#,AVV60,GSV60201507

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-33090iASV60,AVV60,GSV60201206-201507

main81193-33110iASV6#,AVV60,GSV60201507

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-33080iASV60,AVV60,GSV60201206-201507

main81194-33100iASV6#,AVV60,GSV60201507

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-33090iASV60,AVV60,GSV60201206-201507

main81194-33110iASV6#,AVV60,GSV60201507

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iASV60,AVV60,GSV60201206-201507

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iASV60,AVV60,GSV60201206-201507

main90075-60083iGSV60..GCC201206-201507

PHILIPPINE SPEC

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iAVV60,GSV60..ARL;ASV60..ARL,CHI,GEN201206-201507

main85661-12020iASV60..GCC;AVV60,GSV60..CHI,GCC,GEN201206-201507

HEAD LAMP-DISCHARGE & *DRL

main85661-12020iASV60..CHI,GEN201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main85661-12020iASV60,AVV60,GSV60..ARL201308-201507

D PACKAGE

main85661-12020iASV60..CHI201306-201308

CHINA ML PACKAGE

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iAVV60,GSV60..ARL;ASV60..ARL,CHI,GEN201206-201507

main85661-12020iASV60,AVV60,GSV60..ARL201308-201507

D PACKAGE

main85661-12020iASV60..CHI201306-201308

CHINA ML PACKAGE

main85661-12020iASV60..GCC;AVV60,GSV60..CHI,GCC,GEN201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main85661-12020iASV60..GCC;AVV60,GSV60..CHI,GCC,GEN201206-201507

HEAD LAMP-DISCHARGE & *DRL

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iASV60,AVV60,GSV60201206-201507

9010506298

main90105-06298

9015950311

main90159-50311

9018905142

main90189-05142

23 parts on this diagram · 9 diagrams in section
