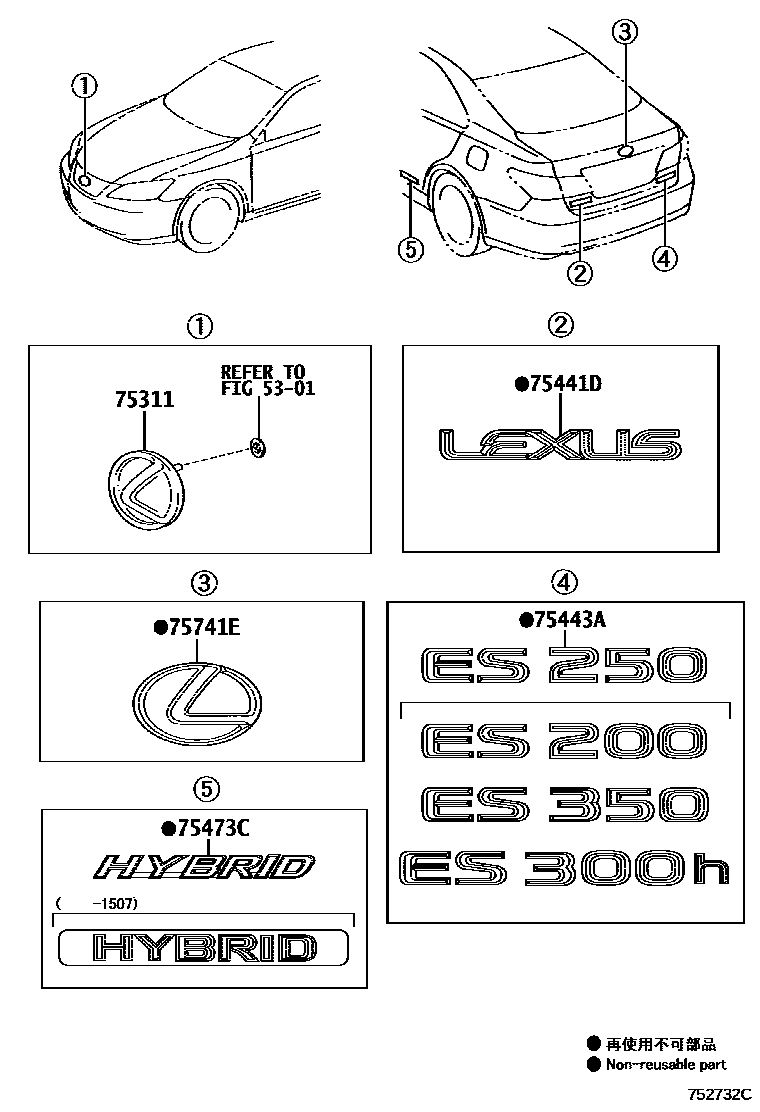

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-48050iGSV60201206-201507

PRE-COLLISION SYSTEM-WITH

sub53141-30510

main53141-48060iAVV60..ARL,CHI201206-201507

PRE-COLLISION SYSTEM-WITH

main53141-48100iGSV60..GCC;ASV6#..ARL,CHI,GCC201507-201708

PRE-COLLISION SYSTEM-WITH

sub53141-30490

main53141-48100iGSV60..ARL201708

sub53141-30490

main53141-48110iAVV60..ARL,CHI201507-201708

PRE-COLLISION SYSTEM-WITH

sub53141-30500

main53141-48110iAVV60..ARL,CHI201708

sub53141-30500

main53141-48110iAVV60..GEN201507

THAILAND SPEC&PRE-COLLISION SYSTEM-WITH

sub53141-30500

main90975-02125iGSV60..ARL201206-201708

main90975-02126iAVV60..ARL201708

SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITHOUT

main90975-02126iAVV60201206-201708

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75447-33170iASV60,AVV60,GSV60201206-201507

LEXUS

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75442-33340iASV61201507

ES 200

main75442-33370iGSV60201206-201507

ES 350

main75442-33390iASV60201206-201507

ES 250

main75442-33410iAVV60201206-201507

ES 300H

75473CPLATE, BODY SIDE NAME

main75473-33020iAVV60201206-201507

RH

main75473-33040iAVV60201206-201507

LH

main75473-33060iAVV60201507

RH

main75473-33070iAVV60201507

LH

75741EEMBLEM, SYMBOL

main90975-02078iASV60,GSV60201206-201507

main90975-02114iAVV60201206-201507

6 parts on this diagram · 1 diagram in section
