E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

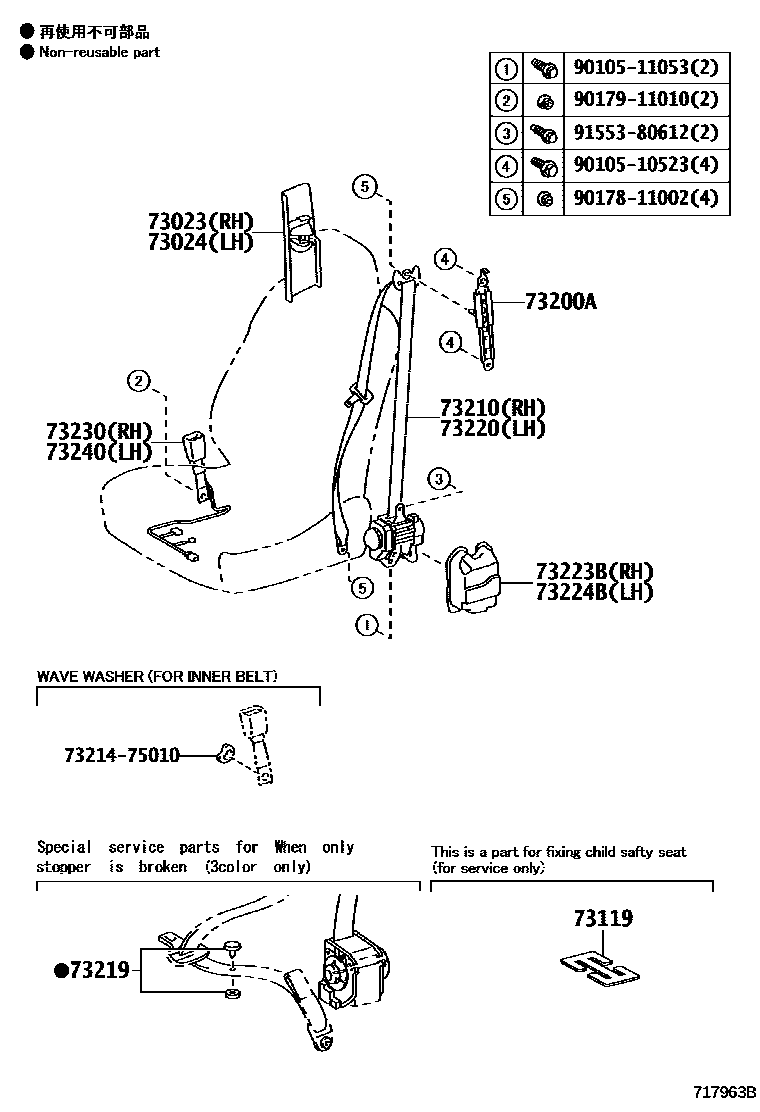

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-33030-A2i201507
ECRU,TRIM0#,5#
sub73023-58010
sub73023-33030
main73023-33030-A2i201206-201507
ECRU,TRIM0#
sub73023-58010
sub73023-33030
main73023-33030-B1i201206-201507
LT.GRAY,TRIM1#,2#,3#
sub73023-58010
sub73023-33030
main73023-33030-B3i201507
MOON STONE,TRIM1#,2#
sub73023-58010
sub73023-33030
main73023-33030-B3i201507
MOON STONE,TRIM1#,2#,40
sub73023-58010
sub73023-33030
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-33030-A2i201507
ECRU,TRIM0#,5#
sub73024-58010
sub73024-33030
main73024-33030-A2i201206-201507
ECRU,TRIM0#
sub73024-58010
sub73024-33030
main73024-33030-B1i201206-201507
LT.GRAY,TRIM1#,2#,3#
sub73024-58010
sub73024-33030
main73024-33030-B3i201507
MOON STONE,TRIM1#,2#
sub73024-58010
sub73024-33030
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i201206-201507
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i201505-201507
main73200-53010i201206-201504
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-33620-A2i201206-201301
TAIWAN SPEC,IVORY,TRIM0#
sub73210-33621
main73210-33620-B0i201206-201301
BLACK,TRIM1#,2#
sub73210-33621
main73210-33621-A2i201302-201307
TAIWAN SPEC,IVORY,TRIM0#
sub73210-33622
main73210-33621-B0i201302-201307
BLACK,TRIM1#,2#
sub73210-33622
main73210-33622-A2i201308-201507
TAIWAN SPEC,IVORY,TRIM0#
main73210-33622-B0i201308-201507
BLACK,TRIM1#,2#
main73210-33623-A2i201507
TAIWAN SPEC,IVORY,TRIM0#
main73210-33623-A3i201507
TAIWAN SPEC,NOBLE BROWN,TRIM5#
main73210-33623-B1i201507
BLACK,TRIM1#,2#
main73210-33641-A2i201507
IVORY,TRIM0#
main73210-33641-A3i201507
NOBLE BROWN,TRIM5#
main73210-33641-B1i201507
BLACK,TRIM1#,2#
main73210-33680-A0i201308-201507
IVORY,TRIM0#
main73210-33680-B0i201308-201507
BLACK,TRIM1#,2#
main73210-33681-A0i201507
IVORY,TRIM0#
main73210-33681-A1i201507
NOBLE BROWN,TRIM5#
main73210-33681-B1i201507
BLACK,TRIM1#,2#
main73210-33630-A0i201206-201301
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH,ECRU,TRIM00
sub73210-33631
main73210-33630-A2i201206-201301
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH,IVORY,TRIM01
sub73210-33631
main73210-33630-B0i201206-201301
PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#
sub73210-33631
main73210-33631-A0i201302-201307
PRE-COLLISION SYSTEM-WITH,ECRU,TRIM00
sub73210-33632
main73210-33631-A2i201302-201307
PRE-COLLISION SYSTEM-WITH,IVORY,TRIM01
sub73210-33632
main73210-33631-B0i201302-201307
PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#
sub73210-33632
main73210-33632-A0i201308-201507
D PACKAGE&PRE-COLLISION SYSTEM-WITH,ECRU,TRIM00
main73210-33632-A2i201308-201507
TAIWAN SPEC&G PACKAGE&PRE-COLLISION SYSTEM-WITH,IVORY,TRIM0#
main73210-33632-B0i201308-201507
C PACKAGE&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#
main73210-33650-A2i201206-201507
PRE-COLLISION SYSTEM-WITH,ECRU,TRIM0#
main73210-33650-B0i201206-201507
G PACKAGE&PRE-COLLISION SYSTEM-WITH,LT.GRAY,TRIM1#,2#
main73210-33690-A0i201308-201507
PRE-COLLISION SYSTEM-WITH,IVORY,TRIM0#
main73210-33690-B0i201308-201507
PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#
73219STOPPER, TONGUE PLATE
main73219-33010i201206-201507
BLACK
main73219-33020i201206-201507
GRAY
main73219-33030i201206-201507
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-33590-A2i201206-201301
TAIWAN SPEC,IVORY,TRIM0#
sub73220-33591
main73220-33590-B0i201206-201301
BLACK,TRIM1#,2#
sub73220-33591
main73220-33591-A2i201302-201307
TAIWAN SPEC,IVORY,TRIM0#
sub73220-33592
main73220-33591-B0i201302-201307
BLACK,TRIM1#,2#
sub73220-33592
main73220-33592-A2i201308-201507
TAIWAN SPEC,IVORY,TRIM0#
main73220-33592-B0i201308-201507
BLACK,TRIM1#,2#
main73220-33593-A2i201507
TAIWAN SPEC,IVORY,TRIM0#
main73220-33593-A3i201507
TAIWAN SPEC,NOBLE BROWN,TRIM5#
main73220-33593-B1i201507
BLACK,TRIM1#,2#
main73220-33611-A2i201507
IVORY,TRIM0#
main73220-33611-A3i201507
NOBLE BROWN,TRIM5#
main73220-33611-B1i201507
BLACK,TRIM1#,2#
main73220-33630-A0i201308-201507
IVORY,TRIM0#
main73220-33630-B0i201308-201507
BLACK,TRIM1#,2#
main73220-33631-A0i201507
IVORY,TRIM0#
main73220-33631-A1i201507
NOBLE BROWN,TRIM5#
main73220-33631-B1i201507
BLACK,TRIM1#,2#
main73220-33600-A0i201206-201301
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH,ECRU,TRIM00
sub73220-33601
main73220-33600-A2i201206-201301
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH,IVORY,TRIM01
sub73220-33601
main73220-33600-B0i201206-201301
PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#
sub73220-33601
main73220-33601-A0i201302-201307
PRE-COLLISION SYSTEM-WITH,ECRU,TRIM00
sub73220-33602
main73220-33601-A2i201302-201307
PRE-COLLISION SYSTEM-WITH,IVORY,TRIM01
sub73220-33602
main73220-33601-B0i201302-201307
PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#
sub73220-33602
main73220-33602-A0i201308-201507
D PACKAGE&PRE-COLLISION SYSTEM-WITH,ECRU,TRIM00
main73220-33602-A2i201308-201507
TAIWAN SPEC&G PACKAGE&PRE-COLLISION SYSTEM-WITH,IVORY,TRIM0#
main73220-33602-B0i201308-201507
C PACKAGE&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#
main73220-33620-A2i201206-201507
PRE-COLLISION SYSTEM-WITH,ECRU,TRIM0#
main73220-33620-B0i201206-201507
G PACKAGE&PRE-COLLISION SYSTEM-WITH,LT.GRAY,TRIM1#,2#
main73220-33640-A0i201308-201507
PRE-COLLISION SYSTEM-WITH,IVORY,TRIM0#
main73220-33640-B0i201402-201507
PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-33060i201206-201507
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-33020i201206-201507
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-33750-A0i201206-201507
TAIWAN SPEC,ECRU,TRIM00
main73230-33750-A1i201206-201507
IVORY,TRIM01
main73230-33750-C0i201206-201507
BLACK,TRIM1#,2#
main73230-33751-C0i201507
BLACK,TRIM1#,2#
main73230-33751-E0i201507
NOBLE BROWN,TRIM0#,41,5#
main73230-33760-A0i201308-201408
IVORY,TRIM0#
main73230-33760-C0i201308-201408
BLACK,TRIM1#,2#
main73230-33761-A0i201408-201507
IVORY,TRIM0#
main73230-33761-C0i201408-201507
BLACK,TRIM1#,2#
main73230-33762-C0i201507
BLACK,TRIM1#,2#
main73230-33762-E0i201507
NOBLE BROWN,TRIM0#,5#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-33730-A0i201206-201408
TAIWAN SPEC,ECRU,TRIM00
main73230-33730-A1i201206-201408
IVORY,TRIM01
main73230-33730-C0i201206-201408
BLACK,TRIM1#,2#
main73230-33731-A0i201408-201507
ECRU,TRIM00
main73230-33731-A1i201408-201507
IVORY,TRIM01
main73230-33731-C0i201408-201507
BLACK,TRIM1#,2#
main73230-33732-C0i201507
BLACK,TRIM1#,2#
main73230-33732-E0i201507
NOBLE BROWN,TRIM0#,41,5#
main73230-33770-A0i201308-201507
IVORY,TRIM0#
main73230-33770-C0i201308-201507
BLACK,TRIM1#,2#
main73230-33771-C0i201507
BLACK,TRIM1#,2#
main73230-33771-E0i201507
NOBLE BROWN,TRIM0#,5#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511053
main90105-11053
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

17 parts on this diagram · 2 diagrams in section
