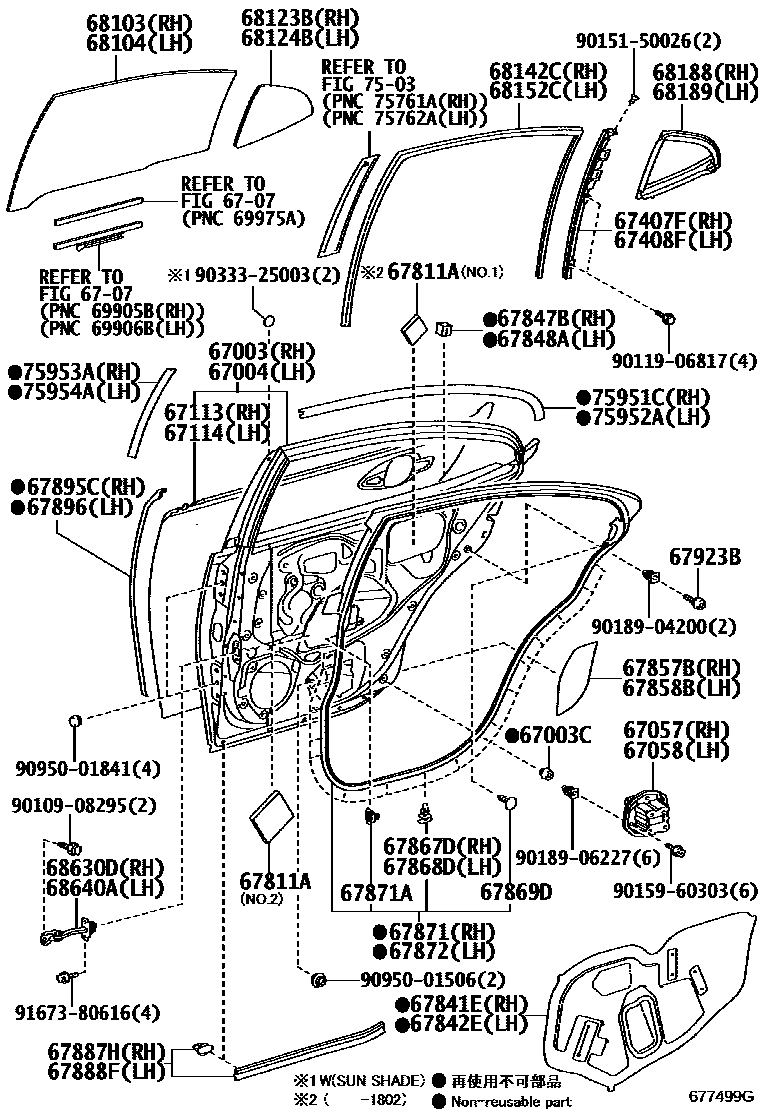

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-33220iASV60,AVV60;GSV60..ARL,GCC¥80,100201206-201507

main67003-33230iASV60,AVV60..CHI¥80,100201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67003-33230iGSV60..CHI¥80,100201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67003-33230iGSV60..CHI¥80,100201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67003-33230iGSV60..CHI¥80,100201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67003-33230iGSV60..CHI¥80,100201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67003-33230iGSV60..CHI¥80,100201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67003-33230iGSV60..CHI¥80,100201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67003-33230iGSV60..CHI¥80,100201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67003-33230iGSV60..CHI¥80,100201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67003-33230iGSV60..CHI¥80,100201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67003-33230iASV60..CHI;AVV60..GEN¥80,100201507

B PACKAGE

main67003-33230iASV60..CHI;AVV60..GEN¥80,100201507

C PACKAGE

main67003-33230iASV60..CHI;AVV60..GEN¥80,100201507

D PACKAGE

67003CCUSHION, REAR DOOR PANEL

main90541-09069iASV6#,AVV60,GSV60¥170201206-201507

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-33220iASV60,AVV60;GSV60..ARL,GCC201206-201507

main67004-33230iGSV60..CHI201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67004-33230iGSV60..CHI201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67004-33230iGSV60..CHI201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67004-33230iGSV60..CHI201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67004-33230iGSV60..CHI201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67004-33230iGSV60..CHI201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67004-33230iGSV60..CHI201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67004-33230iGSV60..GCC201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67004-33230iGSV60..GCC201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67004-33230iGSV60..GCC201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67004-33230iASV60..CHI;AVV60..GEN201507

B PACKAGE

main67004-33230iASV60..CHI;AVV60..GEN201507

C PACKAGE

main67004-33230iASV60..CHI;AVV60..GEN201507

D PACKAGE

67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH

main67057-33040iASV60,AVV60,GSV60201206-201507

67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH

main67057-33040iASV60,AVV60,GSV60201206-201507

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-33130iASV60,AVV60,GSV60201206-201507

67114PANEL, REAR DOOR, OUTER LH

main67114-33130iASV60,AVV60,GSV60201206-201507

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-33110iASV60,AVV60;GSV60..ARL,GCC201206-201507

main67407-33120iGSV60..CHI201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67407-33120iGSV60..CHI201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67407-33120iGSV60..CHI201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67407-33120iGSV60..CHI201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67407-33120iGSV60..CHI201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67407-33120iGSV60..CHI201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67407-33120iGSV60..CHI201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67407-33120iGSV60..GCC201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67407-33120iGSV60..GCC201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67407-33120iGSV60..GCC201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67407-33120iASV60..CHI;AVV60..GEN201507

B PACKAGE

main67407-33120iASV60..CHI;AVV60..GEN201507

C PACKAGE

main67407-33120iASV60..CHI;AVV60..GEN201507

D PACKAGE

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-33110iASV60,AVV60;GSV60..ARL,GCC¥2,640201206-201507

main67408-33120iGSV60..GCC201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67408-33120iGSV60..CHI201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67408-33120iGSV60..CHI201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67408-33120iGSV60..CHI201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67408-33120iGSV60..CHI201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67408-33120iGSV60..CHI201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67408-33120iGSV60..CHI201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67408-33120iGSV60..CHI201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67408-33120iGSV60..CHI201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main67408-33120iGSV60..CHI201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main67408-33120iASV60..CHI;AVV60..GEN201507

B PACKAGE

main67408-33120iASV60..CHI;AVV60..GEN201507

C PACKAGE

main67408-33120iASV60..CHI;AVV60..GEN201507

D PACKAGE

67811APAD, REAR DOOR SILENCER

main67811-30100iASV6#,AVV60,GSV60¥760201206-201802

NO.1:REFER ILLUST.

main67811-33080iASV60,AVV60,GSV60¥1,270201206-201507

NO.2:REFER ILLUST.

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-33130iASV60,AVV60,GSV60¥1,660201206-201507

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-33130iASV6#,AVV60,GSV60201206-201507

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-48040iASV60,AVV60,GSV60¥220201206-201507

67848ASEAL, REAR DOOR VENT, LH NO.1

main67847-48040iASV60,AVV60,GSV60¥220201206-201507

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-33040iASV6#,AVV60,GSV60¥570201206-201507

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-33040iASV6#,AVV60,GSV60201206-201507

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iASV60,AVV60,GSV60¥100201206-201507

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iASV6#,AVV60,GSV60¥100201206-201507

67869DCLIP, DOOR WEATHERSTRIP

main67869-20030iASV6#,AVV60,GSV60¥100201206-201507

67871WEATHERSTRIP, REAR DOOR, RH

main67871-33110iASV6#,AVV60,GSV60201206-201507

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main90467-04034iASV6#,AVV60,GSV60¥60201206-201507

67872WEATHERSTRIP, REAR DOOR, LH

main67872-33110iASV60,AVV60,GSV60201206-201507

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-33040iASV60,AVV60,GSV60¥1,690201206-201507

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-33040iASV6#,AVV60,GSV60201206-201507

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-33030iASV60,AVV60,GSV60¥1,150201206-201507

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-33030iASV6#,AVV60,GSV60¥1,150201206-201507

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-48060iASV60,AVV60,GSV60¥190201206-201507

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-33180iASV60,AVV60,GSV60201206-201307

sub68113-33181

main68113-33181iASV6#,AVV60,GSV60201308-201507

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-33180iASV60,AVV60,GSV60201206-201307

sub68114-33181

main68114-33181iASV6#,AVV60,GSV60201308-201507

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-33090iGSV60..GCC;ASV60,AVV60201206-201307

sub68123-33091

main68123-33091iASV60,AVV60;GSV60..ARL,GCC201308-201507

main68123-33100iGSV60..GCC201206-201307

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

sub68123-33101

main68123-33100iGSV60..GCC201206-201307

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

sub68123-33101

main68123-33100iGSV60..GCC201206-201307

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

sub68123-33101

main68123-33100iASV60..GCC201206-201307

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

sub68123-33101

main68123-33100iASV60..GCC201206-201307

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

sub68123-33101

main68123-33100iASV60..GCC201206-201307

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

sub68123-33101

main68123-33100iASV60..GCC201206-201307

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

sub68123-33101

main68123-33100iASV60..GCC201206-201307

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

sub68123-33101

main68123-33100iASV60..GCC201206-201307

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

sub68123-33101

main68123-33100iASV60..GCC201206-201307

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

sub68123-33101

main68123-33101iGSV60..CHI201308-201507

G PACKAGE

main68123-33101iGSV60..CHI201308-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main68123-33101iGSV60..CHI201308-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main68123-33101iGSV60..CHI201308-201507

D PACKAGE

main68123-33101iGSV60..CHI201308-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main68123-33101iGSV60..CHI201308-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main68123-33101iGSV60..CHI201308-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main68123-33101iGSV60..CHI201308-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main68123-33101iGSV60..CHI201308-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main68123-33101iGSV60..CHI201308-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main68123-33101iGSV60..CHI201308-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main68123-33101iGSV60..CHI201308-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main68123-33101iASV60..CHI;AVV60..GEN201507

B PACKAGE

main68123-33101iASV60..CHI;AVV60..GEN201507

C PACKAGE

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-33090iGSV60..GCC;ASV60,AVV60201206-201307

sub68124-33091

main68124-33091iASV60,AVV60;GSV60..ARL,GCC201308-201507

main68124-33100iASV60..GCC201206-201307

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

sub68124-33101

main68124-33100iASV60..GCC201206-201307

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

sub68124-33101

main68124-33100iASV60..GCC201206-201307

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

sub68124-33101

main68124-33100iASV60..GCC201206-201307

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

sub68124-33101

main68124-33100iASV60..GCC201206-201307

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

sub68124-33101

main68124-33100iASV60..GCC201206-201307

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

sub68124-33101

main68124-33100iASV60..GCC201206-201307

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

sub68124-33101

main68124-33100iASV60..GCC201206-201307

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

sub68124-33101

main68124-33100iASV60..GCC201206-201307

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

sub68124-33101

main68124-33100iASV60..GCC201206-201307

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

sub68124-33101

main68124-33101iASV60..CHI201308-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main68124-33101iASV60..CHI201308-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main68124-33101iASV60..CHI201308-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main68124-33101iASV60..CHI201308-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main68124-33101iASV60..CHI201308-201507

G PACKAGE

main68124-33101iASV60..CHI201308-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main68124-33101iASV60..CHI201308-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main68124-33101iASV60,AVV60..GEN201308-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main68124-33101iASV60,AVV60..GEN201308-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main68124-33101iASV60,AVV60..GEN201308-201507

D PACKAGE

main68124-33101iASV60,AVV60..GEN201308-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main68124-33101iASV60,AVV60..GEN201308-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main68124-33101iASV60..CHI;AVV60..GEN201507

B PACKAGE

main68124-33101iASV60..CHI;AVV60..GEN201507

C PACKAGE

68142CRUN, REAR DOOR GLASS, RH

main68142-33121iASV60,AVV60,GSV60201206-201507

68152CRUN, REAR DOOR GLASS, LH

main68152-33121iASV60,AVV60,GSV60201206-201507

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-33070iASV60,AVV60,GSV60201206-201507

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-33070iASV6#,AVV60,GSV60¥2,980201206-201507

68630DCHECK ASSY, REAR DOOR, RH

main68630-33100iASV6#,AVV60,GSV60201206-201507

68640ACHECK ASSY, REAR DOOR, LH

main68640-33100iASV6#,AVV60,GSV60201206-201507

7503

75951CTAPE, BLACK OUT, INNER FRONT RH

main75987-33060iASV60,AVV60;GSV60..ARL,GCC¥2,220201206-201507

main75987-33070iGSV60..GCC¥2,360201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main75987-33070iGSV60..GCC¥2,360201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main75987-33070iGSV60..GCC¥2,360201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main75987-33070iGSV60..GCC¥2,360201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main75987-33070iGSV60..GCC¥2,360201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main75987-33070iGSV60..GCC¥2,360201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main75987-33070iGSV60..GCC¥2,360201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main75987-33070iGSV60..GCC¥2,360201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main75987-33070iGSV60..GCC¥2,360201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main75987-33070iASV60..GCC¥2,360201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main75987-33070iASV60..CHI;AVV60..GEN¥2,360201507

B PACKAGE

main75987-33070iASV60..CHI;AVV60..GEN¥2,360201507

C PACKAGE

main75987-33070iASV60..CHI;AVV60..GEN¥2,360201507

D PACKAGE

75952ATAPE, BLACK OUT, INNER FRONT LH

main75988-33060iASV60,AVV60;GSV60..ARL,GCC201206-201507

main75988-33070iGSV60..CHI201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main75988-33070iGSV60..CHI201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main75988-33070iGSV60..CHI201206-201507

D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main75988-33070iGSV60..CHI201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main75988-33070iGSV60..CHI201206-201507

B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main75988-33070iGSV60..CHI201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main75988-33070iGSV60..CHI201206-201507

F PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main75988-33070iGSV60..CHI201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main75988-33070iGSV60..CHI201206-201507

G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main75988-33070iGSV60..GCC201206-201507

C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main75988-33070iASV60..CHI;AVV60..GEN201507

B PACKAGE

main75988-33070iASV60..CHI;AVV60..GEN201507

C PACKAGE

main75988-33070iASV60..CHI;AVV60..GEN201507

D PACKAGE

75953ATAPE, BLACK OUT, INNER REAR RH

main75977-33030iASV60,AVV60,GSV60¥1,310201206-201507

75954ATAPE, BLACK OUT, INNER REAR LH

main75978-33030iASV60,AVV60,GSV60201206-201507

9010908295

main90109-08295¥80

9011906817

main90119-06817¥70

9015150026

main90151-50026¥60

9015960303

main90159-60303¥70

9018904200

main90189-04200¥80

9018906227

main90189-06227¥70

9033325003

main90333-25003¥70

9095001506

main90950-01506¥120

9095001841

main90950-01841¥110

9167380616

main91673-80616¥60

53 parts on this diagram · 2 diagrams in section
