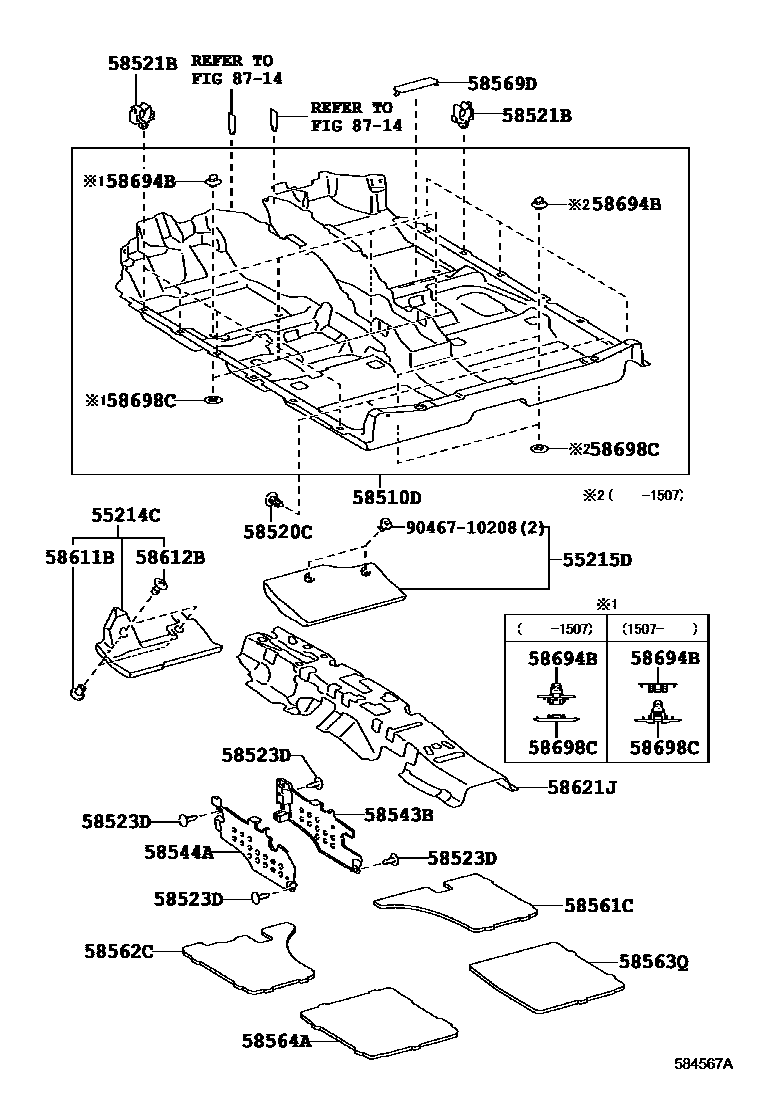

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
(L)
(J)
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#
CAMEL,TRIM0#
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM00
CAMEL,TRIM01
CAMEL,TRIM0#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
NOBLE BROWN,TRIM0#,5#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM0#,5#
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58523DCLIP(FOR FLOOR CARPET SET BRACKET)
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58569DCOVER, FRONT FLOOR CAUTION PLATE
58611BPLATE, MAT SET, NO.1
58612BPLATE, MAT SET, NO.2
58621JSILENCER, CENTER CONSOLE, NO.1
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
8714
9046710208
20 parts on this diagram · 2 diagrams in section
