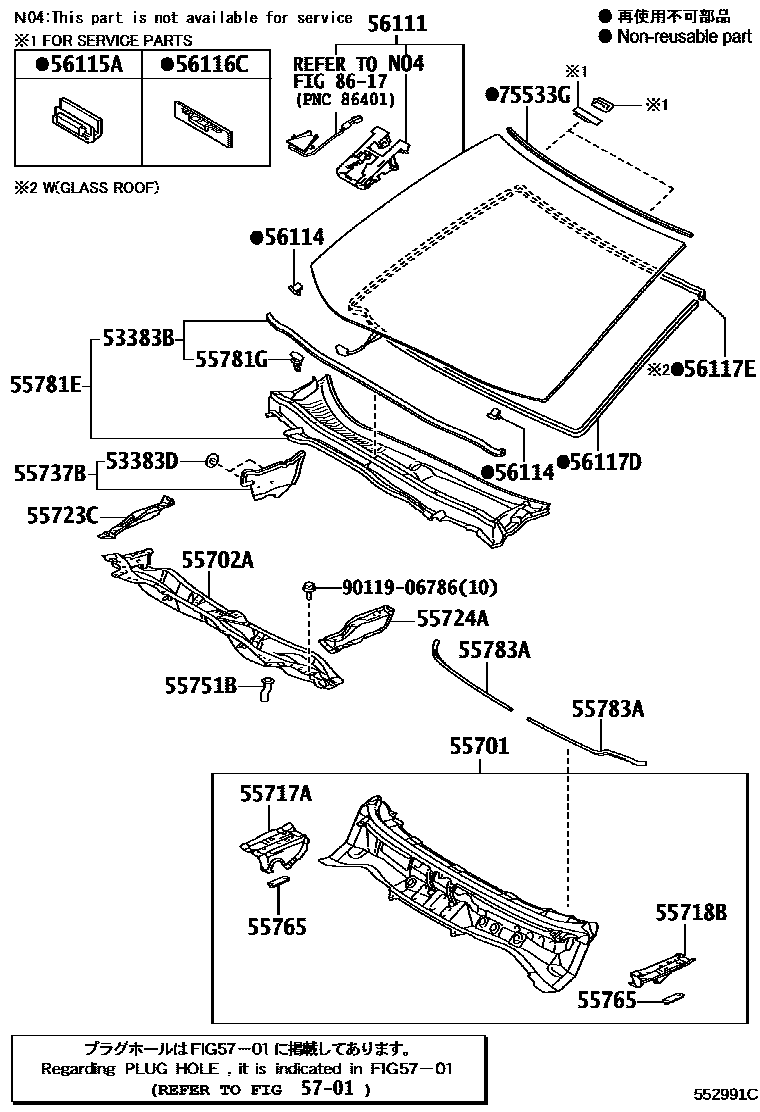

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
TAIWAN SPEC
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55701PANEL SUB-ASSY, COWL
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55724AREINFORCEMENT, COWL TOP SIDE, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55751BHOSE, COWL WATER EXTRACT, NO.1
55765BRACKET, HOOD DAMPER MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
TAIWAN SPEC
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=2914
*D,L=2914,TAIWAN SPEC&F PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&AUDIO-EMVN & DVD & 8SPEAKER
*D,L=2914,C PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR& TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKER
*D,L=2914,C PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR& TIME ADJUSTMENT)&AUDIO-EMVN & DVD & 8SPEAKER
*D,L=2914,C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKER
*D,L=2914,C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&AUDIO-EMVN & DVD & 8SPEAKER
*D,L=2914,G PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR& TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&SEAT HEATER-WITH(HEATER(*DRP
*D,L=2914,G PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR& TIME ADJUSTMENT)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD &
*D,L=2914,G PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR& TIME ADJUSTMENT)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN
*D,L=2914,G PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN
*D,L=2914,G PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDI
*D,L=2914,G PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER
*D,L=2914,G PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER
*D,L=2914,G PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER
*D,L=2914,G PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER
*D,L=2914,MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
*D,L=2914,MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL
*D,L=2914,INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
*D,L=2914,INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL
*D,L=2914,THAILAND SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
*D,L=2914,D PACKAGE
*D,L=2914,D PACKAGE&PRE-COLLISION SYSTEM-WITH
*D,L=2914,D PACKAGE&PRE-COLLISION SYSTEM-WITH&MOON ROOF-WITH(GLASS ROOF)
*D,L=2914,D PACKAGE&MOON ROOF-WITH(GLASS ROOF)
*D,L=2914,PRE-COLLISION SYSTEM-WITH
*D,L=2914,PRE-COLLISION SYSTEM-WITH&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
*D,L=2914,PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
56117EDAM, WINDOW GLASS ADHESIVE
5701
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906786
main90119-06786
24 parts on this diagram · 3 diagrams in section
