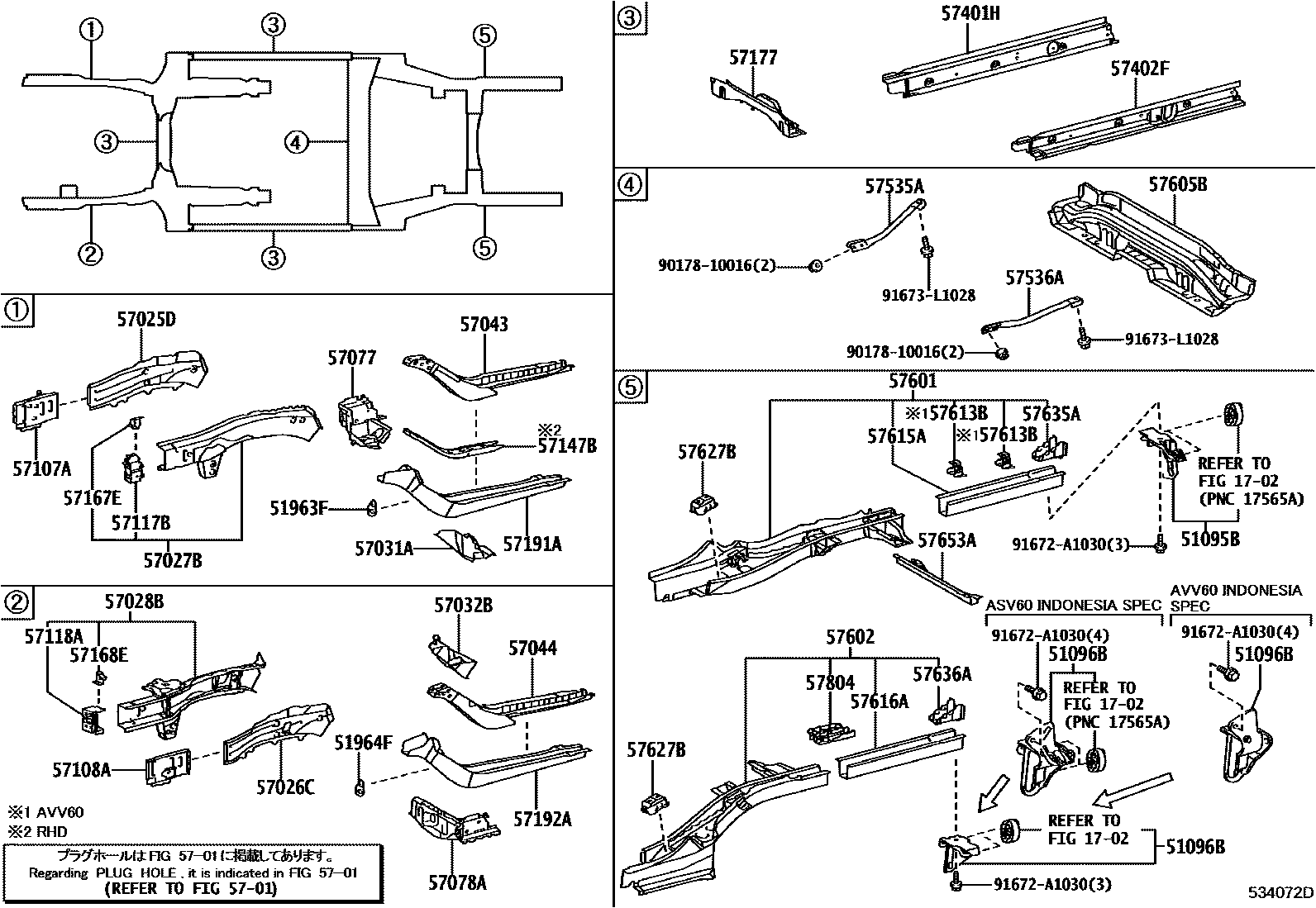

FLOOR SIDE MEMBER

1702

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-33010iAVV60,GSV60201206-201507

main51095-33020iASV60201206-201507

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-33010iGSV60201206-201507

main51096-33020iASV60201206-201507

main51968-33060iAVV60201206-201507

main51096-33030iASV60..GEN201308-201507

INDONESIA SPEC

main51096-33040iAVV60..GEN201507

INDONESIA SPEC

51963FHOOK, TRANSPORT

main51963-33020iASV60,AVV60,GSV60201206-201507

51964FHOOK, TRANSPORT, LH

main51964-33010iASV60,AVV60,GSV60201206-201507

5701

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-33020iASV60,AVV60,GSV60201206-201507

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-33020iASV60,AVV60,GSV60201206-201507

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-33011iASV60,AVV60,GSV60201206-201507

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-33060iASV6#,AVV60,GSV60201507

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-33010iASV60,AVV60,GSV60201206-201502

main57031-33011iASV60,AVV60,GSV60201503-201507

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-33010iASV60,AVV60,GSV60201206-201502

main57032-33011iASV60,AVV60,GSV60201503-201507

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-33020iASV60,AVV60,GSV60201206-201507

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-33020iASV60,AVV60,GSV60201206-201507

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-33040iASV60,AVV60,GSV60201206-201507

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-33040iASV60,AVV60,GSV60201206-201502

main57078-33041iASV60,AVV60,GSV60201503-201507

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-33032iASV60,AVV60,GSV60201206-201507

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-33032iASV60,AVV60,GSV60201206-201507

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-33050iASV60,AVV60,GSV60201206-201507

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-33050iASV60,AVV60,GSV60201206-201507

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-33020iASV60,AVV60,GSV60..RHD201308-201507

57167EGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-33020iASV6#,AVV60,GSV60201507-201806

57168EGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-33020iASV60,AVV60,GSV60201206-201507

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57103-33051iASV60,AVV60,GSV60201206-201308

sub57103-33052

main57103-33070iASV60,AVV60,GSV60201308-201502

main57103-33072iASV6#,AVV60,GSV60201507

main57103-33073iASV60,AVV60,GSV60201503-201507

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-33010iASV60,AVV60,GSV60201206-201507

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-33010iASV60,AVV60,GSV60201206-201507

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-33130iASV6#,AVV60,GSV60..LHD201507

main57401-33140iASV60,AVV60,GSV60..RHD201308-201507

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-33130iASV60,AVV60,GSV60201206-201507

57535ABRACE, FRONT FLOOR, RH

main65031-33010iASV60,AVV60,GSV60201206-201507

57536ABRACE, FRONT FLOOR, LH

main65032-33010iASV60,AVV60,GSV60201206-201507

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-33220iASV60,GSV60201206-201507

main57601-33230iAVV60201206-201507

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-33200iASV6#,AVV60,GSV60201507

main57602-33220iASV60,AVV60..GEN201507

INDONESIA SPEC

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-33121iASV60,AVV60,GSV60201206-201507

57613BMEMBER, REAR FLOOR SIDE CENTER, RH

main57613-33020×2iAVV60201206-201507

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-33080iASV60,GSV60201206-201507

main57615-33090iAVV60201507

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-33070iASV6#,AVV60,GSV60201507

main57616-33080iASV60,AVV60..GEN201507

INDONESIA SPEC

57627BCOVER, REAR FLOOR SIDE MEMBER

main57627-33030×2iASV60,AVV60,GSV60201206-201507

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57625-33010iASV60,AVV60,GSV60201206-201507

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57626-33010iASV60,AVV60,GSV60201206-201507

main57604-33020iASV60,AVV60..GEN201507

INDONESIA SPEC

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-33090iASV60,AVV60,GSV60201206-201507

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-33010iASV60,AVV60,GSV60201206-201507

9017810016

main90178-10016

91672A1030

main91672-A1030

91673L1028

main91673-L1028

44 parts on this diagram · 1 diagram in section
