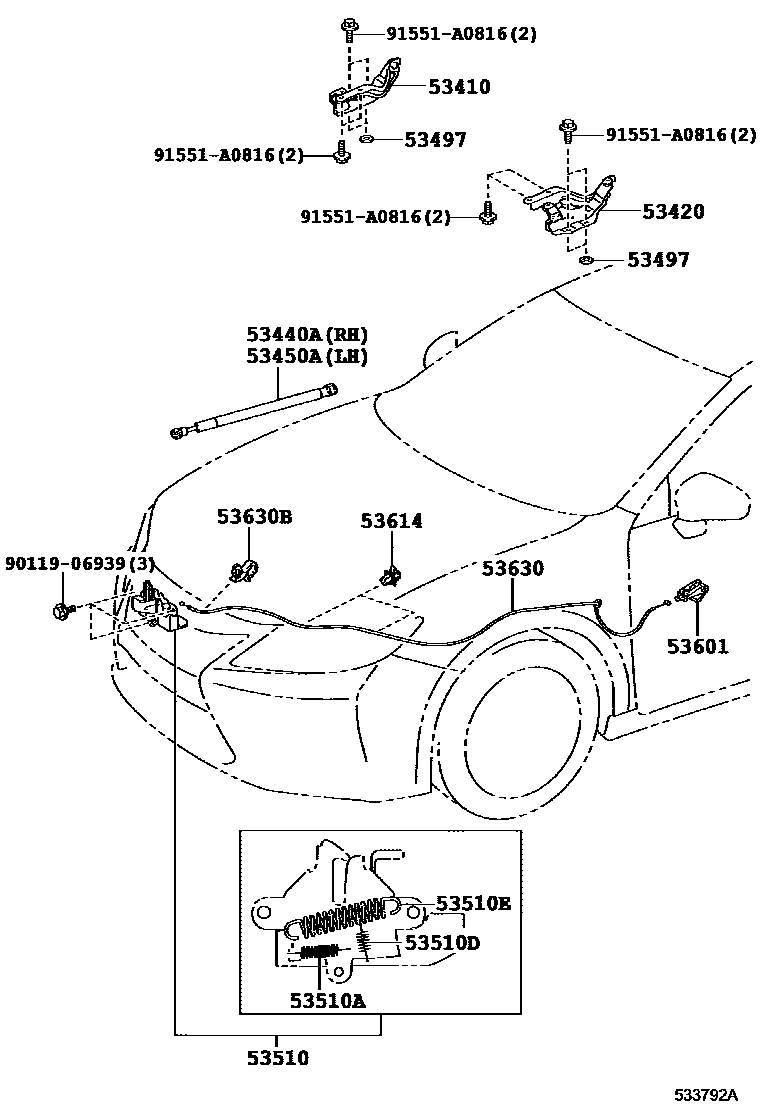

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-33290iASV60,AVV60,GSV60201206-201507

53420HINGE ASSY, HOOD, LH

main53420-33290iASV60,AVV60,GSV60201206-201507

53440ASUPPORT ASSY, HOOD, RH

main53440-33100iASV6#,AVV60,GSV60201507

53450ASUPPORT ASSY, HOOD, LH

main53450-33090iASV60,AVV60,GSV60201206-201507

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iASV60,AVV60,GSV60201206-201507

T=2.0

main53497-42010×4iASV6#,AVV60,GSV60201507

T=0.5

53510LOCK ASSY, HOOD

main53510-33400iASV60,AVV60,GSV60..LHD201206-201507

main53510-33410iASV60,AVV60,GSV60..RHD201308-201507

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iASV6#,AVV60,GSV60201507

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iASV60,AVV60,GSV60201206-201507

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iASV60,AVV60,GSV60201206-201507

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30090-A0iGSV60..GCC201206-201507

IVORY,TRIM01

main53601-30090-C0iASV6#,AVV60,GSV60201507-201701

BLACK,TRIM1#,2#

main53601-30090-C1iASV61201701

BLACK,TRIM1#,2#,40

main53601-30090-E0iGSV60..GCC201206-201507

ORCHID BROWN,TRIM00

main53601-30090-E2iASV60,AVV60,GSV60201507

NOBLE BROWN,TRIM0#,5#

53614CLAMP, HOOD LOCK CONTROL CABLE

main90959-01369×2iASV6#,AVV60,GSV60201507

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33180iASV6#,AVV60,GSV60..LHD201507

main53630-33190iASV60,AVV60,GSV60..RHD201507

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-12009iASV60,AVV60,GSV60201206-201507

9011906939

main90119-06939

91551A0816

main91551-A0816

15 parts on this diagram · 2 diagrams in section
