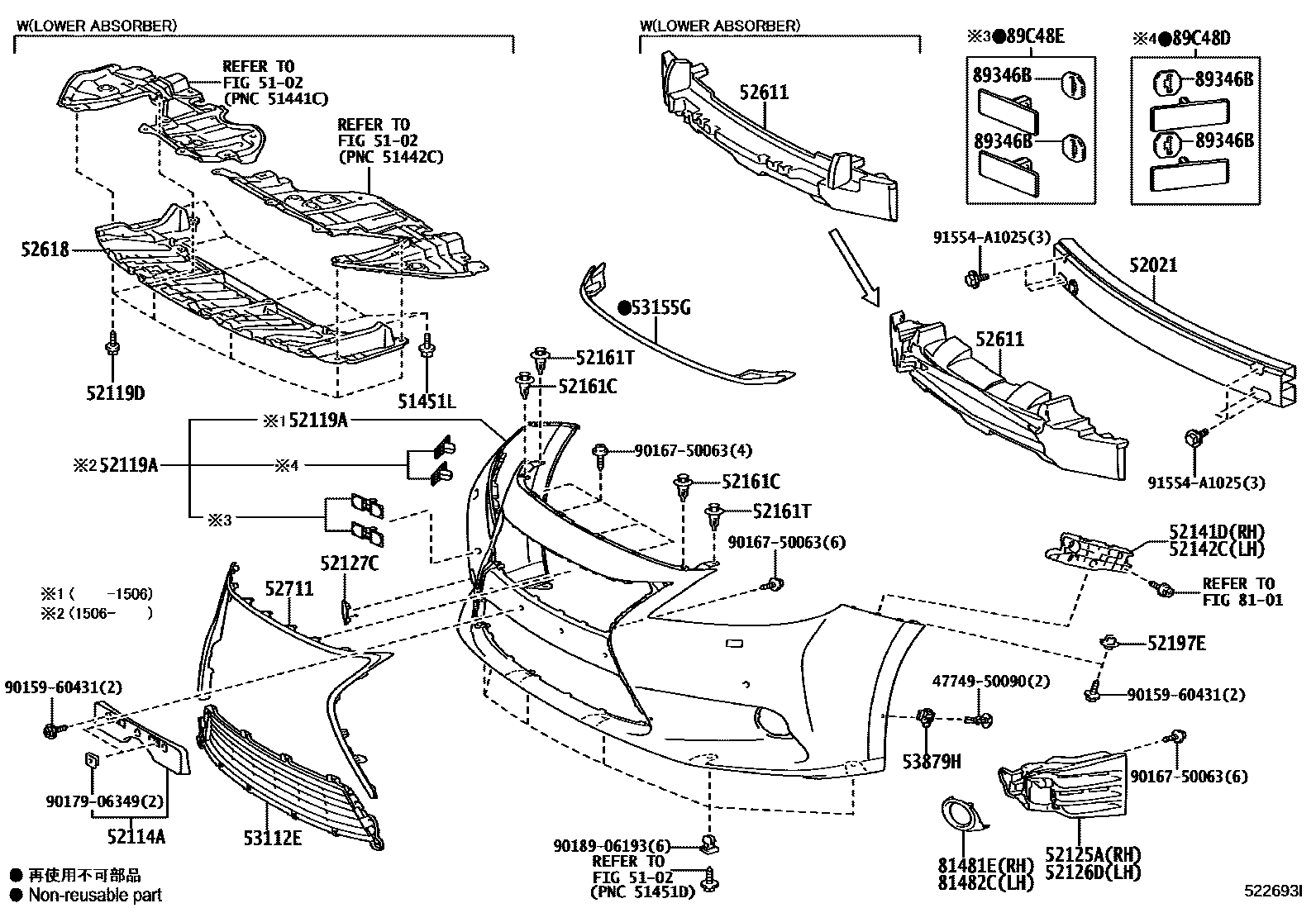

FRONT BUMPER & BUMPER STAY
5102
51451LBOLT, NO.1
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
TAIWAN SPEC&HEAD LAMP-DISCHARGE & *AHB & *DRL
TAIWAN SPEC&HEAD LAMP-DISCHARGE & *DRL
TAIWAN SPEC
TAIWAN SPEC
SOUTH AFRICA SPEC
52119ACOVER, FRONT BUMPER
PAINT REQ.,HEAD LAMP-DISCHARGE & *AHB & *DRL
sub52119-3T916
PAINT REQ.,TAIWAN SPEC&HEAD LAMP-DISCHARGE & *AHB & *DRL
sub52119-3T922
PAINT REQ.,TAIWAN SPEC&HEAD LAMP-DISCHARGE & *DRL
sub52119-3T922
PAINT REQ.
PAINT REQ.
PAINT REQ.,HEAD LAMP-DISCHARGE & *AHB & *DRL
PAINT REQ.,HEAD LAMP-DISCHARGE & *DRL
PAINT REQ.
PAINT REQ.,TAIWAN SPEC
PAINT REQ.,SOUTH AFRICA SPEC
PAINT REQ.
PAINT REQ.,SOUTH AFRICA SPEC&HEAD LAMP-DISCHARGE & *DRL
PAINT REQ.
PAINT REQ.,TAIWAN SPEC
PAINT REQ.,TAIWAN SPEC&HEAD LAMP-DISCHARGE & *AHB & *DRL
PAINT REQ.,TAIWAN SPEC&HEAD LAMP-DISCHARGE & *DRL
PAINT REQ.,HEAD LAMP-DISCHARGE & *DRL
52119DSCREW, NO.1
52127CCOVER, FRONT BUMPER HOLE
52141DSTAY, FRONT BUMPER, RH
52142CSTAY, FRONT BUMPER, LH
52161CPIECE, FRONT BUMPER
sub52161-0K040
52161TPIECE, FRONT BUMPER
sub52161-0K040
52197EBRACKET, FRONT BUMPER SEAL
52611ABSORBER, FRONT BUMPER ENERGY
SOUTH AFRICA SPEC
52618ABSORBER, FRONT BUMPER, LOWER
52711MOULDING, FRONT BUMPER
PLATED
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
53155GSEAL, RADIATOR GRILLE
53879HRETAINER, FRONT FENDER LINER
8101
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
89346BADJUSTER, ULTRASONIC SENSOR
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
4774950090CLIP, PIN HOLD
main47749-50090
9015960431
main90159-60431
9016750063
main90167-50063
9017906349
main90179-06349
9018906193
main90189-06193
91554A1025
main91554-A1025
32 parts on this diagram · 2 diagrams in section
