43211KNUCKLE, STEERING, RH

main43211-33110i201206-201507

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012i201206-201507

OD=17,TYPE A:REFER ILLUST.

main90105-17013i201206-201507

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014i201206-201507

OD=15,TYPE C:REFER ILLUST.

main90105-17015i201206-201507

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002i201206-201507

43212KNUCKLE, STEERING, LH

main43212-33090i201206-201507

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012i201206-201507

OD=17,TYPE A:REFER ILLUST.

main90105-17013i201206-201507

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014i201206-201507

OD=15,TYPE C:REFER ILLUST.

main90105-17015i201206-201507

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002i201206-201507

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39845i201206-201507

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003i201206-201507

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39605i201206-201507

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003i201206-201507

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-33080i201206-201507

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12346i201206-201507

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-12019i201206-201507

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16082i201206-201507

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14146i201206-201507

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-33080i201206-201507

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16082i201206-201507

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14146i201206-201507

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068i201206-201507

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010i201206-201507

9538103225

main95381-03225

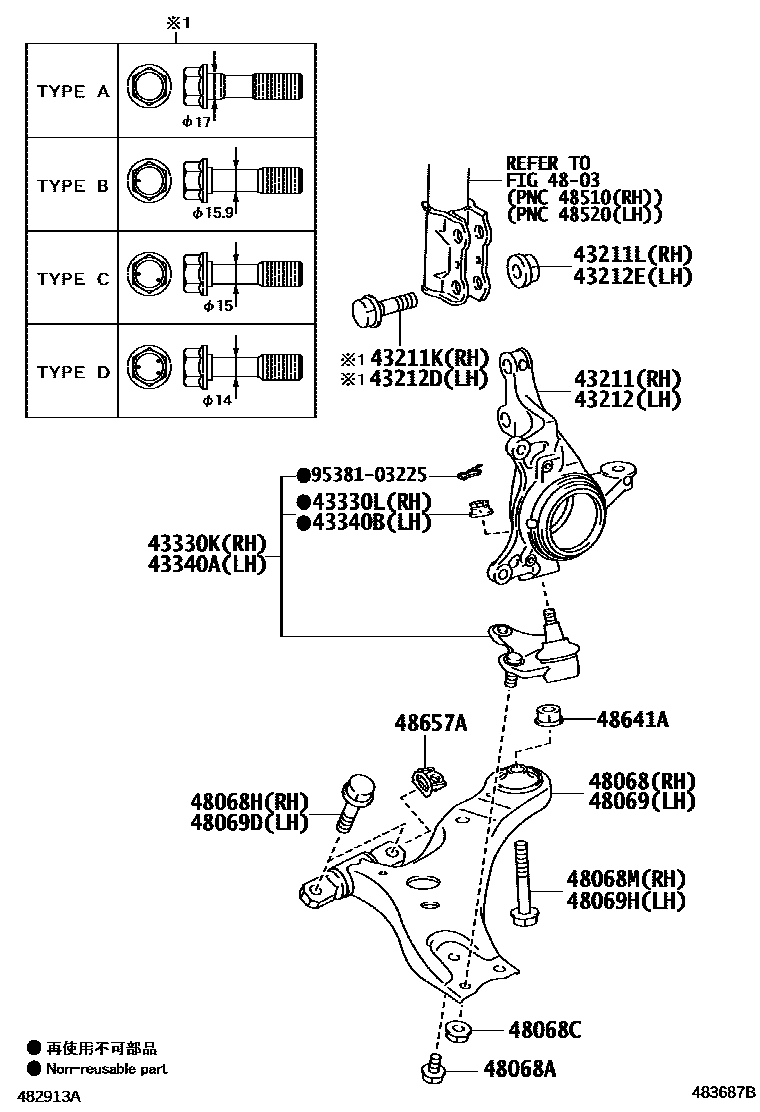

FRONT AXLE ARM & STEERING KNUCKLE
